Portable Gauging & Sampling for Land Applications

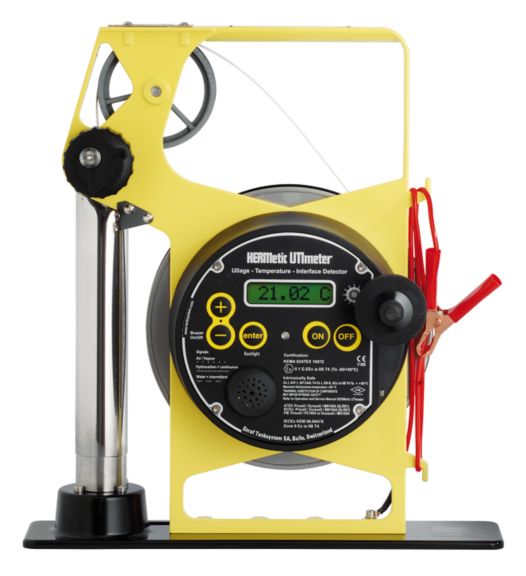

HERMetic UTImeter Otex - Restricted Type - Land Applications
Honeywell’s HERMetic UTImeter Otex is a portable electronic liquid level gauge designed for operation under open conditions on petroleum and chemical storage tanks where open gauging is permitted.
What Is It?
HERMetic UTImeter Otex enables four measurements in a single operation:
- Ullage level measurement
- Temperature verification
- Oil-water interface level detection
- Innage, Reference height (manual detection of dip datum plate)
HERMetic UTImeter Otex allows easy battery exchange and can be fitted optionally on a French plate with tightening mechanism to secure the units inside gauging pipes or dip hatches up to a diameter of 6 Inch. The tape cleaning devices, window wiper and tape protection are standard parts.
How Does It Work?
The sensor of HERMetic UTImeter Otex is calibrated once at the factory and does not require subsequent calibration. The temperature probe is an RTD element, with its characteristics stored inside the sensor. The sensor sends true temperature values to the electronic package. Therefore, changing a sensor or a tape does not require a new calibration.
The unit complies with a host of regulations, including:
ISO (4512, 3170, 4268)
API (MPMS Chap 3.1A, MPMS Chap 7, MPMS Chap 8.1, MPMS Chap 17.11)
IP (PMM Part III-1, PMM Part IV)
EC Directive 89/336/EEC (EMC)
EC Directive 94/9/EC (MED)
EC Directive 96/98/EC (ATEX 100a).
It has been approved by:
National authorities (USCG, MSA, GOST-R)
All major classification societies
ATEX, IECEx, Factory Mutual, NEPSI, GOST standard.
What Problems Does It Solve?
Honeywell’s HERMetic UTImeter Otex allows static verification of the liquid level in a tank and continuous temperature reading of the liquid with high repeatability, thanks to the electronic detection principle. The fully modular unit ensures accuracy and stability, while reducing maintenance costs for users.
