direct fired furnace burners
Annular excess air burners
Excess air burners with annular-gap technology, burners with cast steel housing, connection for ceramic tube provided
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

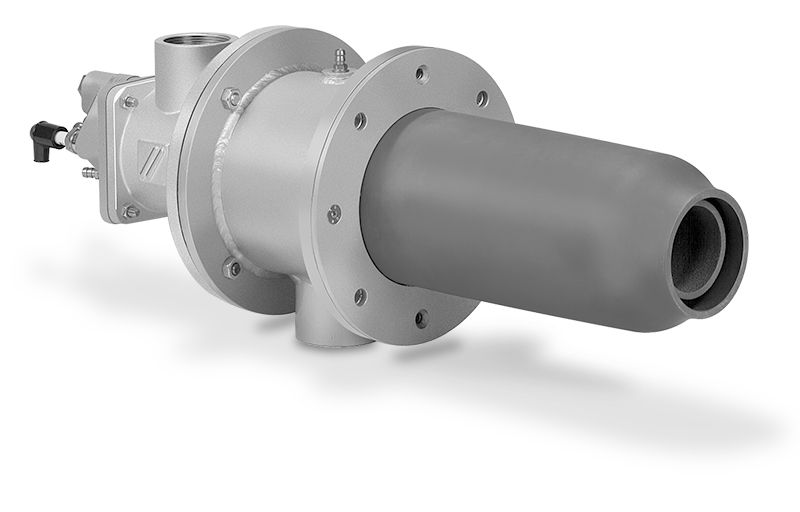

Excess air burners with annular-gap technology, featuring a cast steel housing, and a connection for the ceramic tube included.
Features & Benefits:
Features & Benefits:
- Burner size: 65 and 100
- Capacity: 50 to 200 kW
- Normal flame shape
- Gas type: natural gas, town gas or LPG
- Burner Tube Length: depends on ceramic tube used
- Threaded air and gas connections
- Available with an integrated ignition lance
Specifications
Air & Combustion Air Specifications
- Air Supply Pressure Range
- Approximately 10 to 30 mbar
- Excess Air Capability
- Up to λ = 50
- Air Temperature Range
- BIC: up to 450 deg C
- BICA: up to 250 deg C
Burner/Flame‑Related Lengths
- Visible Flame Length
- 15 to 80 cm depending on model
Dimensions & Weight
- Viewing Head Dimensions
- Length: 20.25 in (514 mm); Diameter: 3 in (76 mm)
Dimensions & Length Specifications
- Steel Extension Length
- 0 to 150 mm (custom lengths available)
- Ceramic Tube Length
- 250 or 300 mm
Pressure Specifications
- Secondary Air Pressure
- 25 to 70 mbar
- Gas Pressure Range
- Approximately 10 to 40 mbar
Inputs, Outputs & Signal Interfaces
- Output Range
- 15 to 360 kW
Installation & Mounting Specifications
- Mounting Types
- Any position; connections rotatable in 90 deg steps
Overview
- Models
- APX Burner Line Burner
Material Specifications
- Material
- Single-Piece Aluminum Extrusion Air/Gas Body
- Ceramic Tube Material
- SiC (Si-1500), max temp 1500 deg C
Electrical Specifications
- Maintenance Interval
- Twice per year (more frequent if media is contaminated)
Combustion/Furnace/Chamber Temperatures
- Kiln Temperature Range
- 50 to 1450 deg C (up to 1600 deg C on request)
- Flame Temperature Range
- 50 to 1500 deg C
Ignition, Flame & Supervision Specifications
- Ignition Type
- Pilot ignition or direct ignition (configuration‑dependent)
- Flame Shapes
- Short (R), Long (H)
- Flame Outlet Velocity
- Medium to high (up to 145 m/s depending on model)
- Flame Control
- Ionisation electrode or optional UV sensor
- Cooling Requirements
- Varies with furnace temp; cooling air at 20 deg C or 450 deg C
Fuel, Gas & Media Specifications
- Gas Type
- Natural gas (L/H), Propane, Butane, LPG
Control, Logic & Functional Behavior
- Control Range
- Approximately 1:10 (modulating or staged)
Dimensions & Size Specifications
- Burner Sizes
- 65, 100, 140
Standards & Certifications
- Approvals
- WEEE Directive 2012/19/EU - Waste Electrical and Electronic Equipment Directive
Applications & Compatibility
- Applications
- Fresh air and low‑temperature recirculating air heating
- Make‑up air systems, spray booths, ovens, dryers, paper, food, gypsum, paint shops
Air & Combustion Air Specifications
- Air Supply Pressure Range
- Approximately 10 to 30 mbar
- Excess Air Capability
- Up to λ = 50
- Air Temperature Range
- BIC: up to 450 deg C
- BICA: up to 250 deg C
Burner/Flame‑Related Lengths
- Visible Flame Length
- 15 to 80 cm depending on model
Dimensions & Weight
- Viewing Head Dimensions
- Length: 20.25 in (514 mm); Diameter: 3 in (76 mm)
Dimensions & Length Specifications
- Steel Extension Length
- 0 to 150 mm (custom lengths available)
- Ceramic Tube Length
- 250 or 300 mm
Pressure Specifications
- Secondary Air Pressure
- 25 to 70 mbar
- Gas Pressure Range
- Approximately 10 to 40 mbar
Inputs, Outputs & Signal Interfaces
- Output Range
- 15 to 360 kW
Installation & Mounting Specifications
- Mounting Types
- Any position; connections rotatable in 90 deg steps
Overview
- Models
- APX Burner Line Burner
Material Specifications
- Material
- Single-Piece Aluminum Extrusion Air/Gas Body
- Ceramic Tube Material
- SiC (Si-1500), max temp 1500 deg C
Electrical Specifications
- Maintenance Interval
- Twice per year (more frequent if media is contaminated)
Combustion/Furnace/Chamber Temperatures
- Kiln Temperature Range
- 50 to 1450 deg C (up to 1600 deg C on request)
- Flame Temperature Range
- 50 to 1500 deg C
Ignition, Flame & Supervision Specifications
- Ignition Type
- Pilot ignition or direct ignition (configuration‑dependent)
- Flame Shapes
- Short (R), Long (H)
- Flame Outlet Velocity
- Medium to high (up to 145 m/s depending on model)
- Flame Control
- Ionisation electrode or optional UV sensor
- Cooling Requirements
- Varies with furnace temp; cooling air at 20 deg C or 450 deg C
Fuel, Gas & Media Specifications
- Gas Type
- Natural gas (L/H), Propane, Butane, LPG
Control, Logic & Functional Behavior
- Control Range
- Approximately 1:10 (modulating or staged)
Dimensions & Size Specifications
- Burner Sizes
- 65, 100, 140
Standards & Certifications
- Approvals
- WEEE Directive 2012/19/EU - Waste Electrical and Electronic Equipment Directive
Applications & Compatibility
- Applications
- Fresh air and low‑temperature recirculating air heating
- Make‑up air systems, spray booths, ovens, dryers, paper, food, gypsum, paint shops
- Air Supply Pressure Range : Approximately 10 to 30 mbar
- Visible Flame Length : 15 to 80 cm depending on model
- Viewing Head Dimensions : Length: 20.25 in (514 mm); Diameter: 3 in (76 mm)
- Steel Extension Length : 0 to 150 mm (custom lengths available)
- Secondary Air Pressure : 25 to 70 mbar
- Output Range : 15 to 360 kW
- Mounting Types : Any position; connections rotatable in 90 deg steps
- Models : APX Burner Line Burner
- Material : Single-Piece Aluminum Extrusion Air/Gas Body
- Maintenance Interval : Twice per year (more frequent if media is contaminated)
- Kiln Temperature Range : 50 to 1450 deg C (up to 1600 deg C on request)
- Ignition Type : Pilot ignition or direct ignition (configuration‑dependent)
- Gas Type : Natural gas (L/H), Propane, Butane, LPG
- Gas Pressure Range : Approximately 10 to 40 mbar
- Flame Temperature Range : 50 to 1500 deg C
- Flame Shapes : Short (R), Long (H)
- Flame Outlet Velocity : Medium to high (up to 145 m/s depending on model)
- Flame Control : Ionisation electrode or optional UV sensor
- Excess Air Capability : Up to λ = 50
- Cooling Requirements : Varies with furnace temp; cooling air at 20 deg C or 450 deg C
- Control Range : Approximately 1:10 (modulating or staged)
- Ceramic Tube Material : SiC (Si-1500), max temp 1500 deg C
- Ceramic Tube Length : 250 or 300 mm
- Burner Sizes : 65, 100, 140
- Approvals : WEEE Directive 2012/19/EU - Waste Electrical and Electronic Equipment Directive
- Applications : Fresh air and low‑temperature recirculating air heating|Make‑up air systems, spray booths, ovens, dryers, paper, food, gypsum, paint shops
- Air Temperature Range : BIC: up to 450 deg C|BICA: up to 250 deg C
