Next Generation PrimeFire FH
Next Generation Oxy-fuel technology, for glass forehearth applications. It is designed to be cooler running, for longer burner life, while still providing improved fuel usage and NOx reduction.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

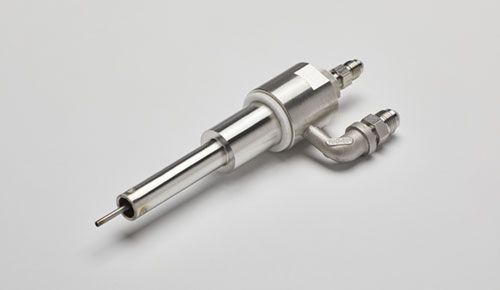

The Honeywell PrimeFire FH is the next generation technology in oxy-fuel forehearth applications for the glass industry, including Container, e-Glass, and Wool Glass (c-Glass) applications. This latest technology offers a cooler running burner & block for increased product life, reduced buildup on the nozzles for maintenance free operation, and significant improvements in NOx and Fuel Consumption levels as compared to air-fuel premix equipment for forehearths. The burner is designed with a unique burner and block combination and can be ordered/configured with or without fittings, a choice of standard pipe lengths, choice of block material, and with or without hoses.
The burner is designed for use with Natural Gas and is available in three sizes to provide the best performance possible across a range of capacity needs.
Features & Benefits:
The burner is designed for use with Natural Gas and is available in three sizes to provide the best performance possible across a range of capacity needs.
- Burner, PrimeFire FH, 5-17 SCFH
- Burner, PrimeFire FH, 9-35 SCFH
- Burner, PrimeFire FH, 13-50 SCFH
Features & Benefits:
- Next Generation Oxy-Forehearth burner technology
- Cooler running block and burner for up to 50% longer product life
- Patented burner/block design to reduce circulation, glass residue buildup, and virtually eliminate maintenance
- 80% reduction in NOx compared to Air-Fuel Forehearth solutions
- 60% reduction in fuel consumption as compared to Air-Fuel Forehearth solutions
- Flamelength gets shorter as burner is turned down
- Three capacities available
- Two block materials available standard
Specifications
Overview
- Models
- FH0517, FH0935, FH1350
- Burner Type
- Oxygen burner for forehearth applications
Performance Specifications
- Fuel Efficiency Improvement
- Up to 60% fuel reduction vs air‑fuel pre‑mix
Combustion Air, Blower & Emissions Specifications
- NOx Reduction Method
- Up to 80% vs air‑fuel pre‑mix
Electrical Specifications
- Maintenance Interval
- Very low/maintenance‑free design
Ignition, Flame & Supervision Specifications
- Cooling Requirements
- Clean dry air, nitrogen, or oxygen
Dimensions & Length Specifications

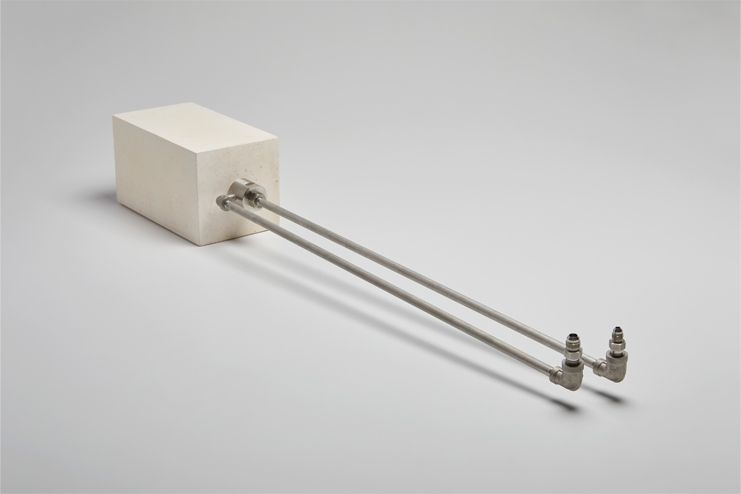

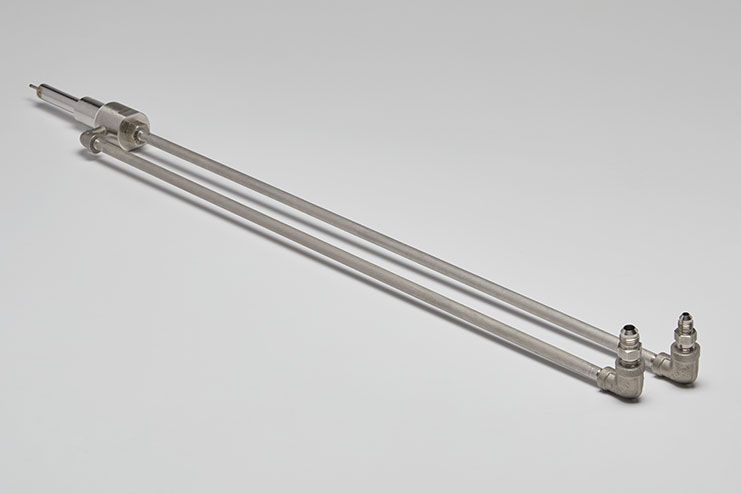

- Pipe Length Options
- 10 to 24 inch in 2-inch increments
Mechanical Design & Hardware Details
- Inlet Orientation
- Oxygen inlet at 90 deg to fuel inlet
Dimensions & Weight

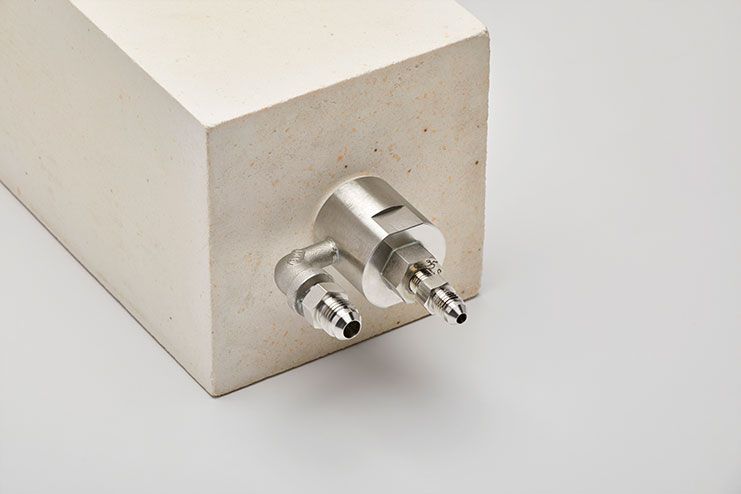

- Block Dimensions
- 5 x 5 x 9 in
Connections & Interfaces
- Connection Type
- With or without NPT fittings
Material Specifications

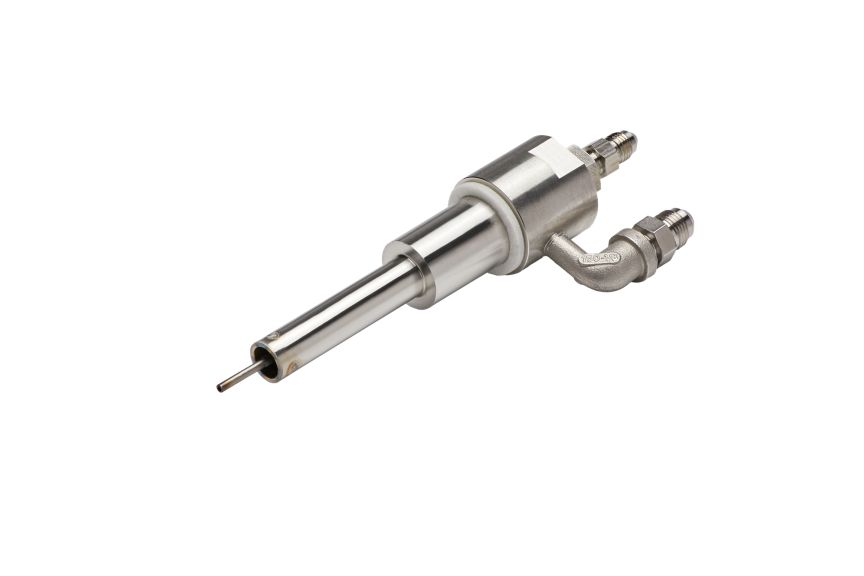

- Burner Material
- 300‑series stainless steel gas tip and oxygen nozzle
- Block Material
- Fused Mullite, AZS
Burner/Flame‑Related Lengths
- Flame Length
- FH0517 - 3 to 7 in, FH0935 - 5 to 10 in, FH1350 - 7 to 12 in
Applications & Compatibility
- Applications
- The forehearth is the section of the glass furnace just after melting and just before forming.
Fuel, Gas & Media Specifications
- Fuel Type
- Natural Gas, Hydrogen blend (up to 20% H2/80% NG)
Combustion, Mixing & Fuel Dynamics
- Fuel Flow
- FH0517 - 5 to 17 SCFH, FH0935 - 9 to 35 SCFH, FH1350 - 13 to 50 SCFH
Overview
- Models
- FH0517, FH0935, FH1350
- Burner Type
- Oxygen burner for forehearth applications
Performance Specifications
- Fuel Efficiency Improvement
- Up to 60% fuel reduction vs air‑fuel pre‑mix
Combustion Air, Blower & Emissions Specifications
- NOx Reduction Method
- Up to 80% vs air‑fuel pre‑mix
Electrical Specifications
- Maintenance Interval
- Very low/maintenance‑free design
Ignition, Flame & Supervision Specifications
- Cooling Requirements
- Clean dry air, nitrogen, or oxygen
Dimensions & Length Specifications
- Pipe Length Options
- 10 to 24 inch in 2-inch increments
Mechanical Design & Hardware Details
- Inlet Orientation
- Oxygen inlet at 90 deg to fuel inlet
Dimensions & Weight
- Block Dimensions
- 5 x 5 x 9 in
Connections & Interfaces
- Connection Type
- With or without NPT fittings
Material Specifications
- Burner Material
- 300‑series stainless steel gas tip and oxygen nozzle
- Block Material
- Fused Mullite, AZS
Burner/Flame‑Related Lengths
- Flame Length
- FH0517 - 3 to 7 in, FH0935 - 5 to 10 in, FH1350 - 7 to 12 in
Applications & Compatibility
- Applications
- The forehearth is the section of the glass furnace just after melting and just before forming.
Fuel, Gas & Media Specifications
- Fuel Type
- Natural Gas, Hydrogen blend (up to 20% H2/80% NG)
Combustion, Mixing & Fuel Dynamics
- Fuel Flow
- FH0517 - 5 to 17 SCFH, FH0935 - 9 to 35 SCFH, FH1350 - 13 to 50 SCFH
- Models : FH0517, FH0935, FH1350
- Fuel Efficiency Improvement : Up to 60% fuel reduction vs air‑fuel pre‑mix
- NOx Reduction Method : Up to 80% vs air‑fuel pre‑mix
- Maintenance Interval : Very low/maintenance‑free design
- Cooling Requirements : Clean dry air, nitrogen, or oxygen
- Pipe Length Options : 10 to 24 inch in 2-inch increments
- Inlet Orientation : Oxygen inlet at 90 deg to fuel inlet
- Block Dimensions : 5 x 5 x 9 in
- Connection Type : With or without NPT fittings
- Burner Material : 300‑series stainless steel gas tip and oxygen nozzle
- Block Material : Fused Mullite, AZS
- Flame Length : FH0517 - 3 to 7 in, FH0935 - 5 to 10 in, FH1350 - 7 to 12 in
- Applications : The forehearth is the section of the glass furnace just after melting and just before forming.
- Burner Type : Oxygen burner for forehearth applications
- Fuel Type : Natural Gas, Hydrogen blend (up to 20% H2/80% NG)
- Fuel Flow : FH0517 - 5 to 17 SCFH, FH0935 - 9 to 35 SCFH, FH1350 - 13 to 50 SCFH
