Glass & Oxygen Burners

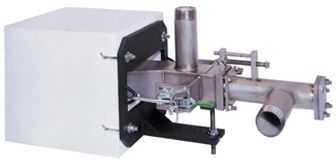

PrimeFire 300
Flat-Flame Oxy-fuel burner for glass melting applications. It features an adjustable flame shape with uniform heat distribution to improve product quality and throughput.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The PrimeFire 300 burner for glass furnaces creates a fan shaped flame with low momentum, which has a lower peak flame temperature. This results in lower operating crown temperatures and lower volatile transport rates. An adjusting mechanism on the burner allows you to change the length and width of the flame shape to suit the melter width and the required temperature profile. The PrimeFire 300 burner improves flame luminosity which increases radiant heat transmission to improve furnace efficiency. The uniform heat distribution from the burner improves product quality and throughput and extends the furnace refractory life.
Features & Benefits:
Features & Benefits:
- Fish-Tail or Fan-Shaped Flame
- Increased Flame Radiation
- Adjustable Flame Shape
- Extremely Low Mixing Rates of Oxygen and Fuel Streams
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
018059
PKG,OXY BDY TO GAS BDY,PF300,MDL 3
018059
PKG,OXY BDY TO GAS BDY,PF300,MDL 3
018169-1
CMBSTR,RFRCT,PRMFR,PF300,0.5 2 MMBTU/HR,
018169-1
CMBSTR,RFRCT,PRMFR,PF300,0.5 2 MMBTU/HR,
018169-2
BLCK,PRE CMBSTR,PF300,0.5 2MM BTU/HR,MAT
018169-2
BLCK,PRE CMBSTR,PF300,0.5 2MM BTU/HR,MAT
019015
GSKT,MTG FLG,BRNR TO PRE CMBSTR,PRMFR 30
019015
GSKT,MTG FLG,BRNR TO PRE CMBSTR,PRMFR 30
019015-1
GSKT,MTG FLG,BRNR TO PRE CMBSTR,PRMFR 30
019015-1
GSKT,MTG FLG,BRNR TO PRE CMBSTR,PRMFR 30
019016
GSKT,FRNT FLG,OXY SYS,PRMFR 300,2 8MM BT
019016
GSKT,FRNT FLG,OXY SYS,PRMFR 300,2 8MM BT
019016-1
GSKT,FRNT FLG,OXY SYS,PRMFR 300,1 4MM BT
019016-1
GSKT,FRNT FLG,OXY SYS,PRMFR 300,1 4MM BT
019017
GSKT,INLT BDY,PRMFR 300,2 8MM BTU/HR
019017
GSKT,INLT BDY,PRMFR 300,2 8MM BTU/HR
019017-1
GSKT,INLT BDY,PRMFR 300,1 4MM BTU/HR WAS
019017-1
GSKT,INLT BDY,PRMFR 300,1 4MM BTU/HR WAS
019018-1
PLT,GAS INLT ASY,PRMFR 300,1 4MM BTU/HR
019018-1
PLT,GAS INLT ASY,PRMFR 300,1 4MM BTU/HR
