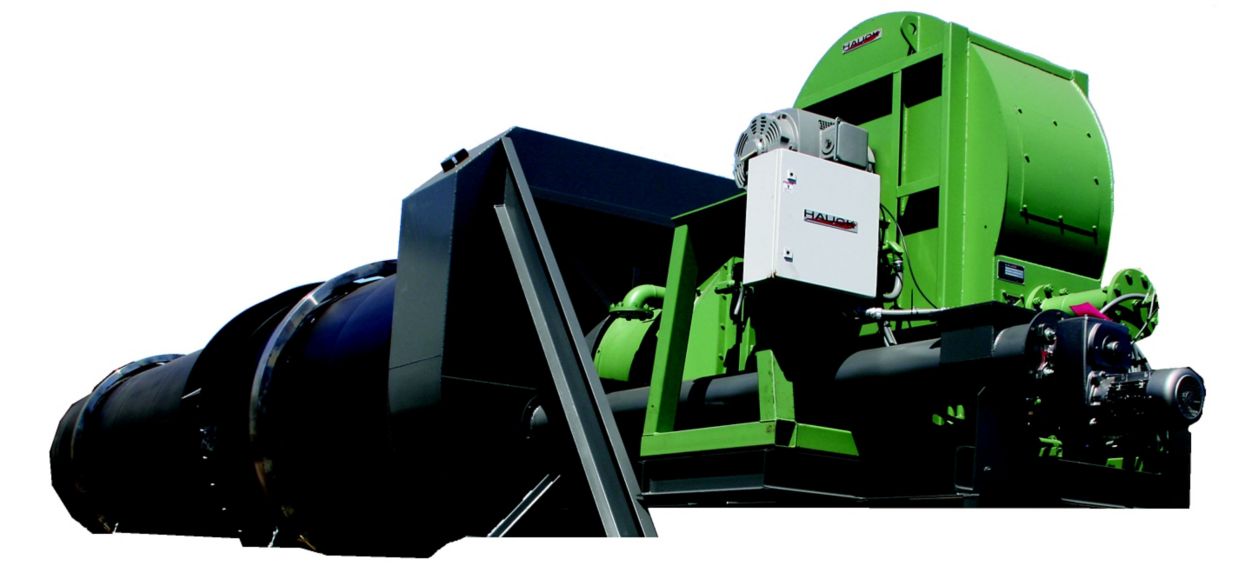

NovaStar
Ultra low NOx emissions burner designed for aggregate drying applications.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Utilizing the latest patented lean burn premix technologies, the NovaStar offers design and performance advantages with service accessibility and ease of installation. Available in various sizes the NovaStar is ready to meet your production needs and even the most stringent air quality standards with ultra low nitrogen oxide (NOx) emissions on gaseous fuels without the added expense of flue gas recirculation (FGR) technology. The burner can be easily operated and effectively managed with PLC based control provided by Hauck’s BCS products. The burner produces a compact flame making it suitable for all drum sizes and types. This further reduces emissions by completing all combustion within the short combustion zone eliminating flame quenching from process materials.
Features & Benefits:
Features & Benefits:
- Ultra low NOx emissions of that meet most stringent air quality standards without FGR or water injection on natural gas and vaporized propane
- Standard and long-nose variations available to suit all drum types
- Advanced construction for ease of installation and maintenance
- Precise air flow control via VFD and low horsepower design offers significant energy savings
- Compact modular design suitable for stationary or portable plants
- Sealed-in design for ultra quiet operation and maximum fuel efficiency
Specifications
Overview
- Models
- NS‑75, NS‑100, NS‑125, NS‑150
- Product Type
- Ultra‑low NOx rotary dryer gas burner
Combustion, Mixing & Fuel Dynamics
- Combustion Principle
- Premixed air/gas with short compact flame
Applications & Compatibility
- Primary Application
- Aggregate and asphalt rotary drying
Pressure Specifications
- Pilot Fuel Pressure
- 15 to 25 psig
Ignition, Flame & Supervision Specifications
- Flame Adjustability
- Not adjustable (fixed compact flame)
- Flame Type
- Short, compact, high‑intensity flame
Processing & Performance Metrics
- Maximum Capacity
- Up to ~150 MMBTU/hr (model dependent)
- NOx Emissions
- Ultra‑low NOx
Actuation, Valve & Motion Control Specifications
- Supported Fuels
- Natural Gas, Gaseous Propane
Product Overview & Classification
- Product Series
- NS
Control, Logic & Functional Behavior
- Control Panel
- Hauck BCS 6000
- Control Type
- PLC‑based with touchscreen HMI
Product Design & Configuration
- Burner Design
- Lean premix gas burner
Standards & Certifications
- Approvals
- Designed to meet NFPA requirements
Overview
- Models
- NS‑75, NS‑100, NS‑125, NS‑150
- Product Type
- Ultra‑low NOx rotary dryer gas burner
Combustion, Mixing & Fuel Dynamics
- Combustion Principle
- Premixed air/gas with short compact flame
Applications & Compatibility
- Primary Application
- Aggregate and asphalt rotary drying
Pressure Specifications
- Pilot Fuel Pressure
- 15 to 25 psig
Ignition, Flame & Supervision Specifications
- Flame Adjustability
- Not adjustable (fixed compact flame)
- Flame Type
- Short, compact, high‑intensity flame
Processing & Performance Metrics
- Maximum Capacity
- Up to ~150 MMBTU/hr (model dependent)
- NOx Emissions
- Ultra‑low NOx
Actuation, Valve & Motion Control Specifications
- Supported Fuels
- Natural Gas, Gaseous Propane
Product Overview & Classification
- Product Series
- NS
Control, Logic & Functional Behavior
- Control Panel
- Hauck BCS 6000
- Control Type
- PLC‑based with touchscreen HMI
Product Design & Configuration
- Burner Design
- Lean premix gas burner
Standards & Certifications
- Approvals
- Designed to meet NFPA requirements
- Models : NS‑75, NS‑100, NS‑125, NS‑150
- Combustion Principle : Premixed air/gas with short compact flame
- Primary Application : Aggregate and asphalt rotary drying
- Pilot Fuel Pressure : 15 to 25 psig
- Flame Adjustability : Not adjustable (fixed compact flame)
- Maximum Capacity : Up to ~150 MMBTU/hr (model dependent)
- Supported Fuels : Natural Gas, Gaseous Propane
- Product Series : NS
- NOx Emissions : Ultra‑low NOx
- Control Panel : Hauck BCS 6000
- Burner Design : Lean premix gas burner
- Product Type : Ultra‑low NOx rotary dryer gas burner
- Control Type : PLC‑based with touchscreen HMI
- Flame Type : Short, compact, high‑intensity flame
- Approvals : Designed to meet NFPA requirements
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
HK405256
TB SUB ASSY,NS100 FRNT FLM
HK405256
TB SUB ASSY,NS100 FRNT FLM
HK405258
CONE,NS100 FRNT FLM TB
HK405258
CONE,NS100 FRNT FLM TB
HK405259
CONE ASSY,NS100 FLM AIR HSG
HK405259
CONE ASSY,NS100 FLM AIR HSG
HK405261
CONE,NS75&100 REAR
HK405261
CONE,NS75&100 REAR
HK405263
CONE,NS75&100 FLM
HK405263
CONE,NS75&100 FLM
HK405265
NZL ASSY,NS75&100 BRNR
HK405265
NZL ASSY,NS75&100 BRNR
HK405636
CONE,NS75 FRNT FLM TB
HK405636
CONE,NS75 FRNT FLM TB
HK405639
CONE,NS75 REAR
HK405639
CONE,NS75 REAR
HK405641
CONE,NS75 FLM
HK405641
CONE,NS75 FLM
HK405887
HEATSHIELD ASSY,NS75
HK405887
HEATSHIELD ASSY,NS75
