line and duct burners

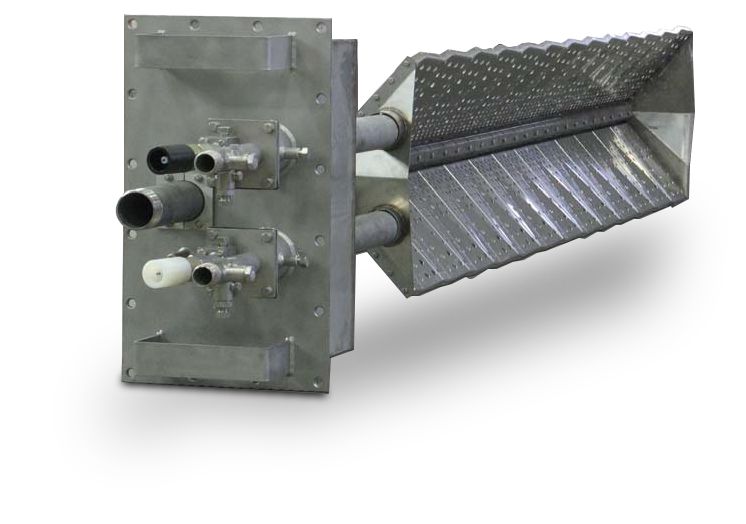

HC AIRFLO®
This unique principle of operation allows “HC” AIRFLO® burners to operate with both low NOx and low CO, over the complete turndown.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
MAXON Series HC AIRFLO® Duct Burners provide the low NOx operation in fresh and re-circulating industrial air heating applications. Series HC AIRFLO® low NOx Burners can operate in a process air stream with 12% or less oxygen content for optimal efficiency and reliability. The HC AIRFLO® natural gas burner ensures efficient, flexible operation with lower pressure drops than other duct burners.
Features & Benefits:
Features & Benefits:
- High heat release up to 8.5 MBtu/h per unit of burner length (12 in.)
- Clean combustion with low CO and NOx emission levels
- Minimal process air pressure drops locally across the burner as low as 0.2 wc
- Operates in fresh air, preheated air (up to 1100 °F) or low oxygen turbine exhaust gases
- Fires on natural gas, H2 and all mixtures. Special versions for propane, butane, LPG and refinery gases are available
- 100 % stainless steel construction for long life performance
- No external combustion air required
- Plug mounted in duct wall insures low installation costs
- Burner capacity independent of back pressure variations and uniform heat distribution along burner length due to high gas pressure
Specifications
Dimensions & Size Specifications
- Sizes
- Type M: 4-7.5 ft; Type L: 8-14 ft
- Type S: 1-7.5 ft (max duct width 160 in)
Pressure Specifications
- Typical Fuel Pressure
- Approximately 14.5 psi at nominal capacity (sizes up to 4 ft; higher for longer burners)
- Pressure Drop
- Local ΔP across burner as low as ~0.2 in wc
Temperature Control/Measurement
- Temperature Rating
- Downstream typically 1750 deg F (1400 deg F for low‑temp process firing)
- Upstream up to 1100 deg F (standard) or 1200 deg F with higher‑grade materials
Combustion, Mixing & Fuel Dynamics
- Oxygen Requirement
- Operates with process air oxygen levels down to ~12% when sufficiently preheated
Installation & Mounting Specifications
- Mounting Options
- Slide‑in unit with stainless steel mounting plug and dedicated support; easy installation and service
Processing & Performance Metrics
- Minimum Capacity
- Down to ~0.68 MBtu/h‑ft for most applications; ~0.50 MBtu/h‑ft for low‑temp (Tin<212 deg F) process firing
- CO/NOx Emissions
- Emissions depend on process temperature and O₂ level (consult Eclipse)
- Capacity Range
- Nominal 5.12 MBtu/h per foot; up to 8.5 MBtu/h per foot possible depending on application boundary conditions
Ignition, Flame & Supervision Specifications
- Flame Monitoring
- UV Scanner connection provided (UV supervision used)
- Ignition Type
- LVDT/HC pilot burner with ignition; pilot and accessories (ignition transformer, UV) mount on stainless mounting plug
Product Design & Configuration
- Burner Design
- Modular supplementary firing burner
Applications & Compatibility
- Applications
- Fresh air heating; turbine exhaust gas (TEG) reheating; TEG/AUX combined operation; fluidized bed start‑up; large incinerators
Overview
- Model Name
- HC AIRFLO®
Control, Logic & Functional Behavior
- Functions
- In‑duct firing line burner; high heat release with clean combustion and low CO/NOx; minimal local ΔP across burner
Fuel, Gas & Media Specifications
- Fuel Type
- Natural Gas, Hydrogen and all mixtures; special versions for Propane, Butane, LPG and Refinery Gases
Material Specifications
- Material
- Stainless Steel
Dimensions & Size Specifications
- Sizes
- Type M: 4-7.5 ft; Type L: 8-14 ft
- Type S: 1-7.5 ft (max duct width 160 in)
Pressure Specifications
- Typical Fuel Pressure
- Approximately 14.5 psi at nominal capacity (sizes up to 4 ft; higher for longer burners)
- Pressure Drop
- Local ΔP across burner as low as ~0.2 in wc
Temperature Control/Measurement
- Temperature Rating
- Downstream typically 1750 deg F (1400 deg F for low‑temp process firing)
- Upstream up to 1100 deg F (standard) or 1200 deg F with higher‑grade materials
Combustion, Mixing & Fuel Dynamics
- Oxygen Requirement
- Operates with process air oxygen levels down to ~12% when sufficiently preheated
Installation & Mounting Specifications
- Mounting Options
- Slide‑in unit with stainless steel mounting plug and dedicated support; easy installation and service
Processing & Performance Metrics
- Minimum Capacity
- Down to ~0.68 MBtu/h‑ft for most applications; ~0.50 MBtu/h‑ft for low‑temp (Tin<212 deg F) process firing
- CO/NOx Emissions
- Emissions depend on process temperature and O₂ level (consult Eclipse)
- Capacity Range
- Nominal 5.12 MBtu/h per foot; up to 8.5 MBtu/h per foot possible depending on application boundary conditions
Ignition, Flame & Supervision Specifications
- Flame Monitoring
- UV Scanner connection provided (UV supervision used)
- Ignition Type
- LVDT/HC pilot burner with ignition; pilot and accessories (ignition transformer, UV) mount on stainless mounting plug
Product Design & Configuration
- Burner Design
- Modular supplementary firing burner
Applications & Compatibility
- Applications
- Fresh air heating; turbine exhaust gas (TEG) reheating; TEG/AUX combined operation; fluidized bed start‑up; large incinerators
Overview
- Model Name
- HC AIRFLO®
Control, Logic & Functional Behavior
- Functions
- In‑duct firing line burner; high heat release with clean combustion and low CO/NOx; minimal local ΔP across burner
Fuel, Gas & Media Specifications
- Fuel Type
- Natural Gas, Hydrogen and all mixtures; special versions for Propane, Butane, LPG and Refinery Gases
Material Specifications
- Material
- Stainless Steel
- Sizes : Type M: 4-7.5 ft; Type L: 8-14 ft|Type S: 1-7.5 ft (max duct width 160 in)
- Typical Fuel Pressure : Approximately 14.5 psi at nominal capacity (sizes up to 4 ft; higher for longer burners)
- Temperature Rating : Downstream typically 1750 deg F (1400 deg F for low‑temp process firing)|Upstream up to 1100 deg F (standard) or 1200 deg F with higher‑grade materials
- Oxygen Requirement : Operates with process air oxygen levels down to ~12% when sufficiently preheated
- Mounting Options : Slide‑in unit with stainless steel mounting plug and dedicated support; easy installation and service
- Minimum Capacity : Down to ~0.68 MBtu/h‑ft for most applications; ~0.50 MBtu/h‑ft for low‑temp (Tin<212 deg F) process firing
- Flame Monitoring : UV Scanner connection provided (UV supervision used)
- CO/NOx Emissions : Emissions depend on process temperature and O₂ level (consult Eclipse)
- Capacity Range : Nominal 5.12 MBtu/h per foot; up to 8.5 MBtu/h per foot possible depending on application boundary conditions
- Pressure Drop : Local ΔP across burner as low as ~0.2 in wc
- Ignition Type : LVDT/HC pilot burner with ignition; pilot and accessories (ignition transformer, UV) mount on stainless mounting plug
- Burner Design : Modular supplementary firing burner
- Applications : Fresh air heating; turbine exhaust gas (TEG) reheating; TEG/AUX combined operation; fluidized bed start‑up; large incinerators
- Model Name : HC AIRFLO®
- Functions : In‑duct firing line burner; high heat release with clean combustion and low CO/NOx; minimal local ΔP across burner
- Fuel Type : Natural Gas, Hydrogen and all mixtures; special versions for Propane, Butane, LPG and Refinery Gases
- Material : Stainless Steel
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
301410
BURNER HC-8 W/PLUG&DUOPILOT
301410
BURNER HC-8 W/PLUG&DUOPILOT
301411
BURNER HC-8.5 W/PLUG&DUOPILOT
301411
BURNER HC-8.5 W/PLUG&DUOPILOT
301412
BURNER HC-9 W/PLUG&DUOPILOT
301412
BURNER HC-9 W/PLUG&DUOPILOT
301413
BURNER HC-9.5 W/PLUG&DUOPILOT
301413
BURNER HC-9.5 W/PLUG&DUOPILOT
301414
BURNER HC-10 W/PLUG&DUOPILOT
301414
BURNER HC-10 W/PLUG&DUOPILOT
301415
BURNER HC-10.5 W/PLUG&DUOPILOT
301415
BURNER HC-10.5 W/PLUG&DUOPILOT
301416
BURNER HC-11 W/PLUG&DUOPILOT
301416
BURNER HC-11 W/PLUG&DUOPILOT
301417
BURNER HC-11.5 W/PLUG&DUOPILOT
301417
BURNER HC-11.5 W/PLUG&DUOPILOT
301418
BURNER HC-12 W/PLUG&DUOPILOT
301418
BURNER HC-12 W/PLUG&DUOPILOT
301419
BURNER HC-12.5 W/PLUG&DUOPILOT
301419
BURNER HC-12.5 W/PLUG&DUOPILOT
