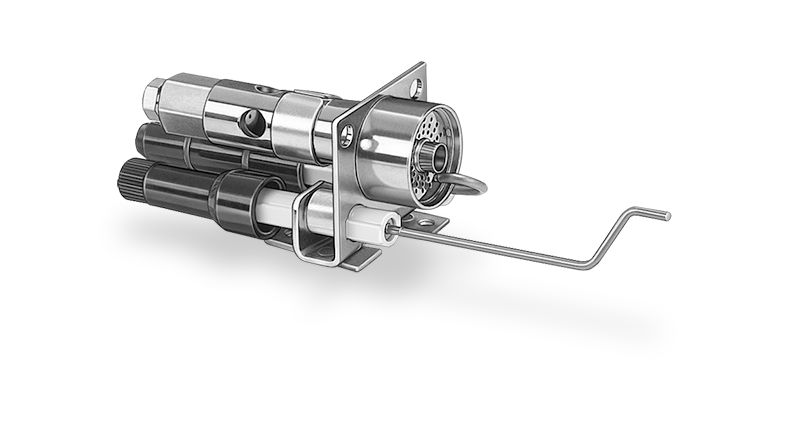

Pilot burner ZAI
Thermo pilot burner for safe ignition of atmospheric gas burners in conjunction with automatic burner control units IFS/IFD or PFS/PFD.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Thermo pilot burner for safe ignition of atmospheric gas burners in conjunction with automatic burner control units IFS/IFD or PFS/PFD.
Features & Benefits:
Features & Benefits:
- Capacity: approximately 3 kW
- Fuel type: natural gas or propane
Specifications
Environmental Conditions
- Ambient Temperature Range
- -15 to +60 deg C
Combustion, Fuel & Mixing Sub‑Systems
- Typical Pilot Sizing
- Recommended at 2 to 5 % of main burner capacity
Overview
- Product Category
- Ionization‑controlled pilot burner
Material Specifications
- Material
- Ignition head: galvanized steel; Retaining plate: galvanized steel
Electrical Specifications
- Ionization Current
- ≥ 5 µA stable
Applications & Compatibility
- Intended Use
- Ionization-controlled pilot burner for safely igniting gas burners; 2-5% of main burner capacity
- Applications
- Safe ignition of gas burners; can also operate as an independent burner
Installation & Mounting Specifications
- Installation Orientation
- Any position ensuring reliable main burner ignition
Pressure Specifications
- Inlet Pressure Limit
- NG ≤ 35 mbar; Coke/Town gas ≤ 30 mbar; LPG ≤ 60 mbar
Ignition, Flame & Supervision Specifications
- Ignition Method
- Direct spark ignition (5 kV ignition transformer)
- Electrodes Included
- Spark electrode + flame rod
Fuel, Gas & Media Specifications
- Gas Type
- Natural Gas, LPG, Coke Oven Gas, Town Gas
Combustion, Mixing & Fuel Dynamics
- Gas Nozzles
- 0.7 mm LPG nozzle (included)
- 1.8 mm nozzle for coke/town gas (Order No. 34472880)
Connections & Interfaces
- Gas Connections
- 8 mm tube; cone olive + cap screw for ZAI K
Combustion Design & Characteristics
- Combustion Method
- Atmospheric pilot with excess air operation
Processing & Performance Metrics
- Capacity Range
- Approximately 1.8 to 3 kW
Product Design & Configuration
- Burner Design
- No flame tube; bare electrodes (optional protective tube available)
Standards & Certifications
- Approvals
- EN 746‑2, RoHS, REACH, Eurasian Customs Union
Environmental Conditions
- Ambient Temperature Range
- -15 to +60 deg C
Combustion, Fuel & Mixing Sub‑Systems
- Typical Pilot Sizing
- Recommended at 2 to 5 % of main burner capacity
Overview
- Product Category
- Ionization‑controlled pilot burner
Material Specifications
- Material
- Ignition head: galvanized steel; Retaining plate: galvanized steel
Electrical Specifications
- Ionization Current
- ≥ 5 µA stable
Applications & Compatibility
- Intended Use
- Ionization-controlled pilot burner for safely igniting gas burners; 2-5% of main burner capacity
- Applications
- Safe ignition of gas burners; can also operate as an independent burner
Installation & Mounting Specifications
- Installation Orientation
- Any position ensuring reliable main burner ignition
Pressure Specifications
- Inlet Pressure Limit
- NG ≤ 35 mbar; Coke/Town gas ≤ 30 mbar; LPG ≤ 60 mbar
Ignition, Flame & Supervision Specifications
- Ignition Method
- Direct spark ignition (5 kV ignition transformer)
- Electrodes Included
- Spark electrode + flame rod
Fuel, Gas & Media Specifications
- Gas Type
- Natural Gas, LPG, Coke Oven Gas, Town Gas
Combustion, Mixing & Fuel Dynamics
- Gas Nozzles
- 0.7 mm LPG nozzle (included)
- 1.8 mm nozzle for coke/town gas (Order No. 34472880)
Connections & Interfaces
- Gas Connections
- 8 mm tube; cone olive + cap screw for ZAI K
Combustion Design & Characteristics
- Combustion Method
- Atmospheric pilot with excess air operation
Processing & Performance Metrics
- Capacity Range
- Approximately 1.8 to 3 kW
Product Design & Configuration
- Burner Design
- No flame tube; bare electrodes (optional protective tube available)
Standards & Certifications
- Approvals
- EN 746‑2, RoHS, REACH, Eurasian Customs Union
- Ambient Temperature Range : -15 to +60 deg C
- Typical Pilot Sizing : Recommended at 2 to 5 % of main burner capacity
- Product Category : Ionization‑controlled pilot burner
- Material : Ignition head: galvanized steel; Retaining plate: galvanized steel
- Ionization Current : ≥ 5 µA stable
- Intended Use : Ionization-controlled pilot burner for safely igniting gas burners; 2-5% of main burner capacity
- Installation Orientation : Any position ensuring reliable main burner ignition
- Inlet Pressure Limit : NG ≤ 35 mbar; Coke/Town gas ≤ 30 mbar; LPG ≤ 60 mbar
- Ignition Method : Direct spark ignition (5 kV ignition transformer)
- Gas Type : Natural Gas, LPG, Coke Oven Gas, Town Gas
- Gas Nozzles : 0.7 mm LPG nozzle (included)|1.8 mm nozzle for coke/town gas (Order No. 34472880)
- Gas Connections : 8 mm tube; cone olive + cap screw for ZAI K
- Electrodes Included : Spark electrode + flame rod
- Combustion Method : Atmospheric pilot with excess air operation
- Capacity Range : Approximately 1.8 to 3 kW
- Burner Design : No flame tube; bare electrodes (optional protective tube available)
- Approvals : EN 746‑2, RoHS, REACH, Eurasian Customs Union
- Applications : Safe ignition of gas burners; can also operate as an independent burner
