self recuperative and radiant tube burners

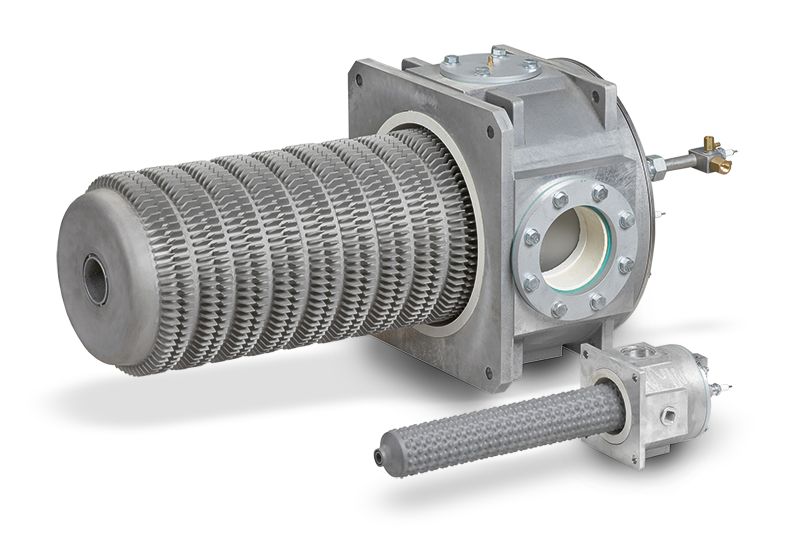

ECOMAX
For flue gas return through the burner
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

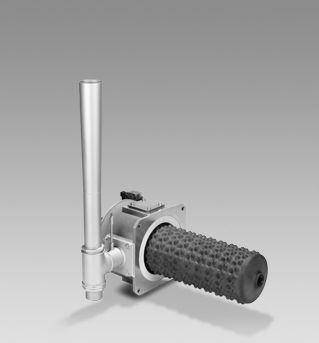

Self-Recuperative burner to help reduce NOx and improve fuel efficiency.
Features & Benefits:
Features & Benefits:
- Burners with integrated recuperator for direct or indirect heating of furnace systems
- 3 versions: with ceramic burled tube recuperator, cast steel ribbed tube recuperator or flat tube recuperator
- 7 sizes from 25 to 500 kW
- Direct ignition and monitoring
- Gas type: natural gas, town gas, LPG or LCV gas
- Flame velocity: 120 to 150 m/s
- Control: ON/OFF
Specifications
Processing & Performance Metrics
- Adjusting Range
- 60 to 100%
- Capacity Range
- 25 to 500 kW (LHV)
Connections & Interfaces
- VAH Connection Set
- Gas control line connection
Ignition, Flame & Supervision Specifications
- UV Adapter Set
- For UV sensor installation
- Ignition Type
- Direct Spark Ignition
- Flame Velocity
- Approximately 130-170 m/s
- Flame Control
- Ionization (UV optional)
Air & Combustion Air Specifications
- Purge Air/Cooling Air Nozzles
- Prevent condensation and overheating
Control, Logic & Functional Behavior
- Operation Modes
- On/Off, intermittent operation
- Control Type
- On/Off
Dimensions & Size Specifications
- Number of Sizes
- 7 sizes (ECOMAX 0 to ECOMAX 6)
Air/Exhaust/Flue Gas Temperatures
- Maximum Flue Gas Temperature
- C Recuperator - 1250 deg C (2282 deg F)
- F Recuperator - 1050 deg C (1922 deg F)
- M/P Recuperator - 1150 deg C (2102 deg F)
- Maximum Air Preheat Temperature
- Up to approximately 650 deg C
Electrical Specifications
- Maintenance Interval
- Twice per year (more frequent if media is contaminated)
Installation & Mounting Specifications
- Installation Orientation
- Horizontal, vertical, or angled (within limits)
Thermal, Flow & Process Characteristics
- Heating Type
- Direct heating and radiant tube heating
Fuel, Gas & Media Specifications
- Gas Type
- Natural Gas, LPG, Coke Oven Gas, Low Calorific Value Gas
Combustion, Mixing & Fuel Dynamics
- Combustion Principle
- Two‑stage combustion with internal flue gas heat recovery
Product Design & Configuration
- Burner Versions
- ECOMAX..C, ECOMAX..M, ECOMAX..P, ECOMAX..F
Overview
- Burner Type
- Self‑recuperative gas burner
Material Specifications
- Body Material
- Cast Aluminium, Double‑Wall Design
Standards & Certifications
- Approvals
- Machinery Directive 2006/42/EC, Eurasian Customs Union
Applications & Compatibility
- Applications
- Direct and radiant tube heating
Processing & Performance Metrics
- Adjusting Range
- 60 to 100%
- Capacity Range
- 25 to 500 kW (LHV)
Connections & Interfaces
- VAH Connection Set
- Gas control line connection
Ignition, Flame & Supervision Specifications
- UV Adapter Set
- For UV sensor installation
- Ignition Type
- Direct Spark Ignition
- Flame Velocity
- Approximately 130-170 m/s
- Flame Control
- Ionization (UV optional)
Air & Combustion Air Specifications
- Purge Air/Cooling Air Nozzles
- Prevent condensation and overheating
Control, Logic & Functional Behavior
- Operation Modes
- On/Off, intermittent operation
- Control Type
- On/Off
Dimensions & Size Specifications
- Number of Sizes
- 7 sizes (ECOMAX 0 to ECOMAX 6)
Air/Exhaust/Flue Gas Temperatures
- Maximum Flue Gas Temperature
- C Recuperator - 1250 deg C (2282 deg F)
- F Recuperator - 1050 deg C (1922 deg F)
- M/P Recuperator - 1150 deg C (2102 deg F)
- Maximum Air Preheat Temperature
- Up to approximately 650 deg C
Electrical Specifications
- Maintenance Interval
- Twice per year (more frequent if media is contaminated)
Installation & Mounting Specifications
- Installation Orientation
- Horizontal, vertical, or angled (within limits)
Thermal, Flow & Process Characteristics
- Heating Type
- Direct heating and radiant tube heating
Fuel, Gas & Media Specifications
- Gas Type
- Natural Gas, LPG, Coke Oven Gas, Low Calorific Value Gas
Combustion, Mixing & Fuel Dynamics
- Combustion Principle
- Two‑stage combustion with internal flue gas heat recovery
Product Design & Configuration
- Burner Versions
- ECOMAX..C, ECOMAX..M, ECOMAX..P, ECOMAX..F
Overview
- Burner Type
- Self‑recuperative gas burner
Material Specifications
- Body Material
- Cast Aluminium, Double‑Wall Design
Standards & Certifications
- Approvals
- Machinery Directive 2006/42/EC, Eurasian Customs Union
Applications & Compatibility
- Applications
- Direct and radiant tube heating
- Adjusting Range : 60 to 100%
- VAH Connection Set : Gas control line connection
- UV Adapter Set : For UV sensor installation
- Purge Air/Cooling Air Nozzles : Prevent condensation and overheating
- Operation Modes : On/Off, intermittent operation
- Number of Sizes : 7 sizes (ECOMAX 0 to ECOMAX 6)
- Maximum Flue Gas Temperature : C Recuperator - 1250 deg C (2282 deg F)|F Recuperator - 1050 deg C (1922 deg F)|M/P Recuperator - 1150 deg C (2102 deg F)
- Maximum Air Preheat Temperature : Up to approximately 650 deg C
- Maintenance Interval : Twice per year (more frequent if media is contaminated)
- Installation Orientation : Horizontal, vertical, or angled (within limits)
- Ignition Type : Direct Spark Ignition
- Heating Type : Direct heating and radiant tube heating
- Gas Type : Natural Gas, LPG, Coke Oven Gas, Low Calorific Value Gas
- Flame Velocity : Approximately 130-170 m/s
- Flame Control : Ionization (UV optional)
- Control Type : On/Off
- Combustion Principle : Two‑stage combustion with internal flue gas heat recovery
- Capacity Range : 25 to 500 kW (LHV)
- Burner Versions : ECOMAX..C, ECOMAX..M, ECOMAX..P, ECOMAX..F
- Burner Type : Self‑recuperative gas burner
- Body Material : Cast Aluminium, Double‑Wall Design
- Approvals : Machinery Directive 2006/42/EC, Eurasian Customs Union
- Applications : Direct and radiant tube heating
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
101034688
BRNR,ECOMAX 5C545 SB/D DA3UA S31 B LBE21
101034688
BRNR,ECOMAX 5C545 SB/D DA3UA S31 B LBE21
HK107707
COMB CHMBR,ECOMAX 3M LBE 107707
HK107707
COMB CHMBR,ECOMAX 3M LBE 107707
HK403794
GSKT,ECOMAX 5,FLUE GAS GD TB KAOWOOL,1/8
HK403794
GSKT,ECOMAX 5,FLUE GAS GD TB KAOWOOL,1/8
HK404396
GSKT,ECOMAX 3M,FLUE GAS GD TB KAOWOOL,1/
HK404396
GSKT,ECOMAX 3M,FLUE GAS GD TB KAOWOOL,1/
KS03109712
O-Ring, 48.0 x 2.0, FKM 70 Shore Green
KS03109712
O-Ring, 48.0 x 2.0, FKM 70 Shore Green
KS21106082
FGTA-Set ECO 2C545-Z
KS21106082
FGTA-Set ECO 2C545-Z
KS21800135
Gehaeuse-Einheit Eco 1C / 2C-W
KS21800135
Gehaeuse-Einheit Eco 1C / 2C-W
KS21800155
Intermediate flange AGT Eco 3C+
KS21800155
Intermediate flange AGT Eco 3C+

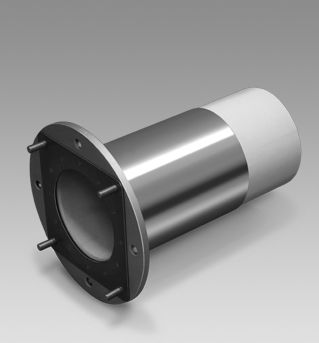

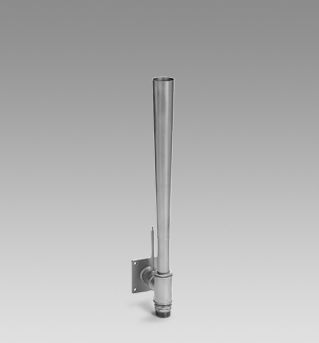

KS21800499
FGT-SET ECO 5M545-D
KS21800499
FGT-SET ECO 5M545-D
KS21800509
SET GUANRIZIONI ECO 5C
KS21800509
SET GUANRIZIONI ECO 5C
