self recuperative and radiant tube burners
ECOMAX LE

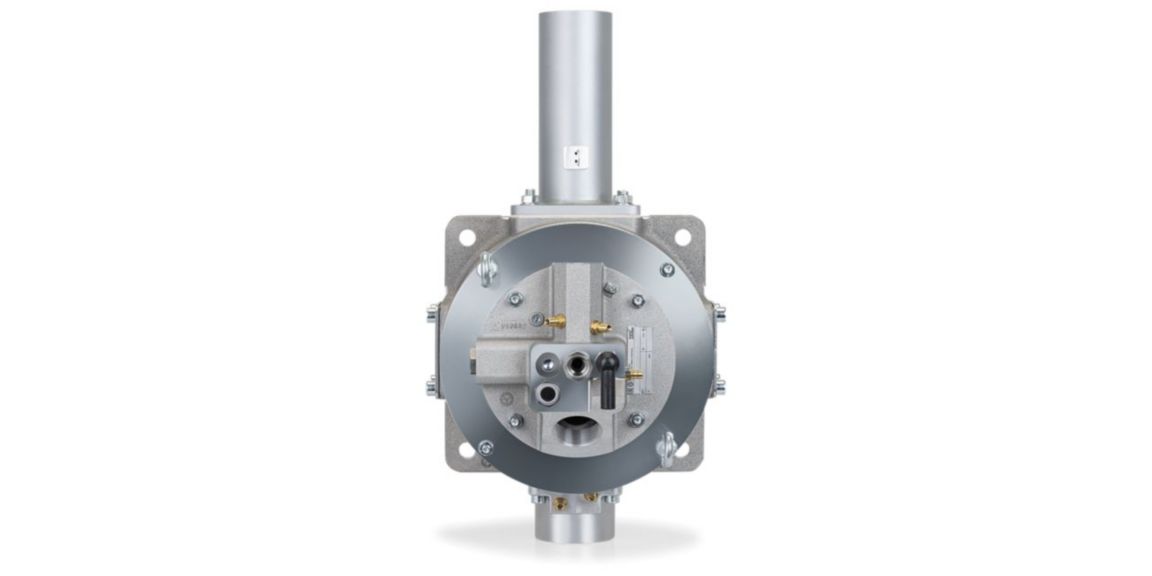

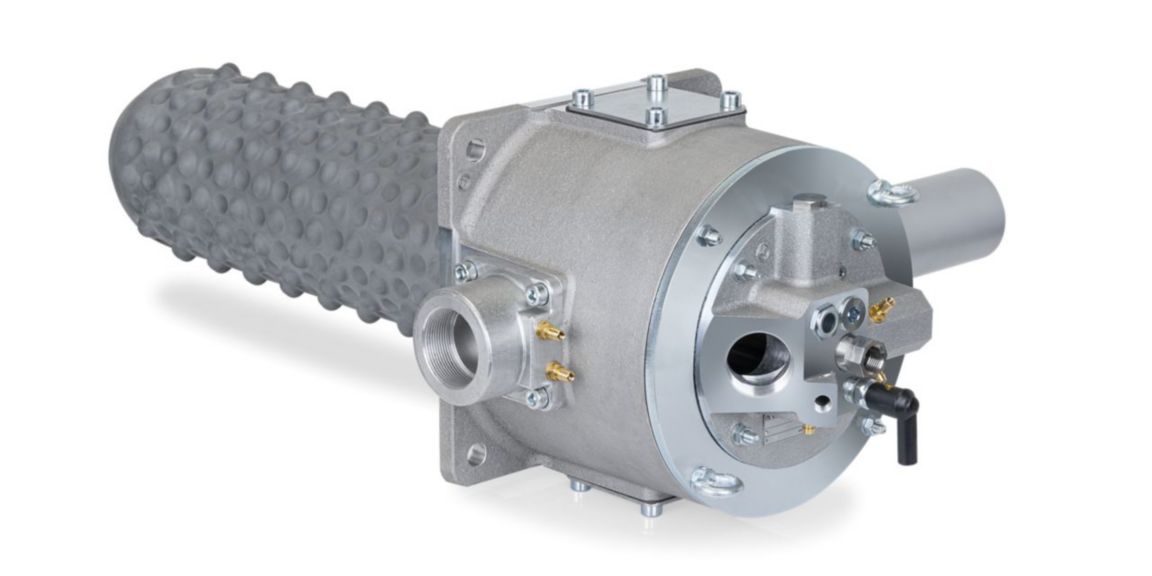

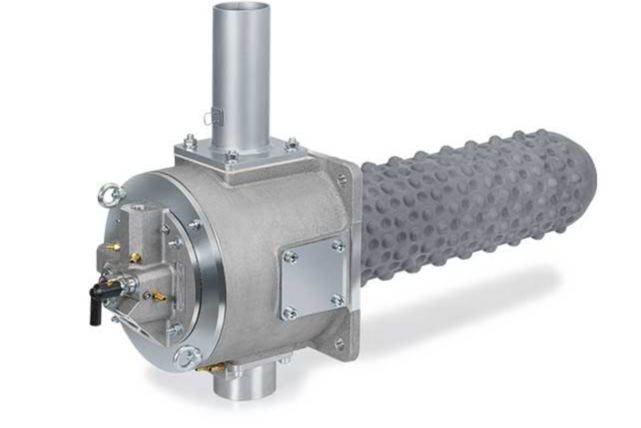

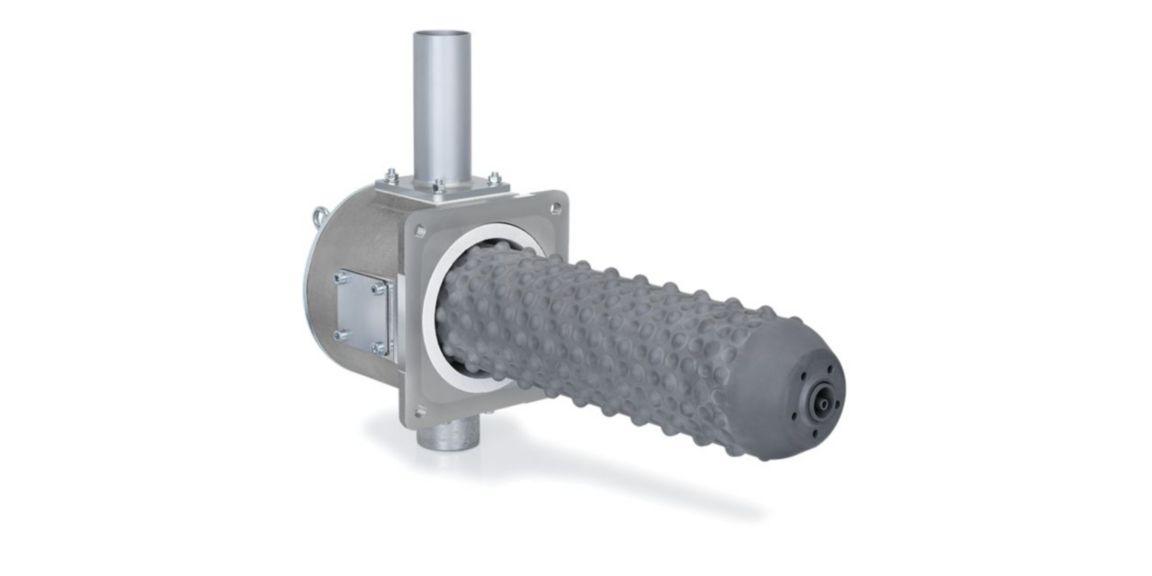

ECOMAX® LE is Honeywell's next generation self-recuperative burner, offering best in class NOx emissions and improved efficiency.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Low emissions, self-recuperative burners for indirect (radiant tube) heating of furnace systems.
Features & Benefits:
Features & Benefits:
- Best in Class NOx performance < 100ppm NOx in all flameless capacities, as low as 25ppm, air/gas valves, tube & inserts, and piping NOx (corrected to 3% O2) in certain ranges
- Flame and Flameless modes: switching temperature of 850°C (1560°F)
- Up to 7% improved efficiency over standard ECOMAX®
- 3 burner sizes covering a capacity range of 36 to 100 kW (136 to 378 kBTU/h)
- Available with metallic recuperator (..M) or with a ceramic recuperator (..C)
- Fits in the same footprint as the current Ecomax® for easy upgrades
- Packaged with BCU4 series controls
- Fuel type: natural gas, gas supply pressure 80 mbar / 32” w.c.
- Air supply pressure 90 mbar / 36” w.c.
- Flame velocity: 120 to 150 m/s
- Control: ON/OFF or HIGH/LOW pulse
Specifications
Dimensions & Size Specifications
- Sizes
- ECOMAX LE 1, 2, 3
Air/Exhaust/Flue Gas Temperatures
- Maximum Air Preheat Temperature
- Up to approximately 850 deg C (1562 deg F)
- Maximum Flue Gas Temperature
- C Recuperator - 1260 deg C (2300 deg F)
- M Recuperator - 1150 deg C (2100 deg F)
Electrical Specifications
- Maintenance Interval
- Twice per year (more frequent if media is contaminated)
Combustion, Mixing & Fuel Dynamics
- Combustion Principle
- High‑velocity staged combustion with flue gas recirculation
Control, Logic & System Behavior
- Operating Modes
- On/Off, cyclic operation
Product Design & Configuration
- Burner Versions
- ECOMAX LE..C, ECOMAX LE..M
Processing & Performance Metrics
- Adjusting Range
- 60 to 100%
- Capacity Range
- (LE 1) - 36 kW/136 kBTU/h, (LE 2) - 60 kW/227 kBTU/h, (LE 3) - 100 kW/378 kBTU/h
Ignition, Flame & Supervision Specifications
- Flame Velocity
- 130-170 m/s (430-560 ft/s)
- Ignition Type
- Direct Spark Ignition
- Flame Control
- Flame rod (UV sensor optional)
Thermal, Flow & Process Characteristics
- Heating Type
- Radiant tube heating
Burner/Flame‑Related Lengths
- Flame Length
- 300 to 450 mm (1 to 1.5 ft) depending on model
Control, Logic & Functional Behavior
- Control Type
- On/Off or Low/High/Off (NFPA)
Applications & Compatibility
- Applications
- Indirect heating (radiant tube systems)
Overview
- Burner Type
- Low‑NOx self‑recuperative gas burner
Standards & Certifications
- Approvals
- EN 746-2, 2006/42/EC
Material Specifications
- Material
- Cast Aluminium, Double‑Wall Design
Fuel, Gas & Media Specifications
- Gas Type
- Natural gas (L and H quality)
Dimensions & Size Specifications
- Sizes
- ECOMAX LE 1, 2, 3
Air/Exhaust/Flue Gas Temperatures
- Maximum Air Preheat Temperature
- Up to approximately 850 deg C (1562 deg F)
- Maximum Flue Gas Temperature
- C Recuperator - 1260 deg C (2300 deg F)
- M Recuperator - 1150 deg C (2100 deg F)
Electrical Specifications
- Maintenance Interval
- Twice per year (more frequent if media is contaminated)
Combustion, Mixing & Fuel Dynamics
- Combustion Principle
- High‑velocity staged combustion with flue gas recirculation
Control, Logic & System Behavior
- Operating Modes
- On/Off, cyclic operation
Product Design & Configuration
- Burner Versions
- ECOMAX LE..C, ECOMAX LE..M
Processing & Performance Metrics
- Adjusting Range
- 60 to 100%
- Capacity Range
- (LE 1) - 36 kW/136 kBTU/h, (LE 2) - 60 kW/227 kBTU/h, (LE 3) - 100 kW/378 kBTU/h
Ignition, Flame & Supervision Specifications
- Flame Velocity
- 130-170 m/s (430-560 ft/s)
- Ignition Type
- Direct Spark Ignition
- Flame Control
- Flame rod (UV sensor optional)
Thermal, Flow & Process Characteristics
- Heating Type
- Radiant tube heating
Burner/Flame‑Related Lengths
- Flame Length
- 300 to 450 mm (1 to 1.5 ft) depending on model
Control, Logic & Functional Behavior
- Control Type
- On/Off or Low/High/Off (NFPA)
Applications & Compatibility
- Applications
- Indirect heating (radiant tube systems)
Overview
- Burner Type
- Low‑NOx self‑recuperative gas burner
Standards & Certifications
- Approvals
- EN 746-2, 2006/42/EC
Material Specifications
- Material
- Cast Aluminium, Double‑Wall Design
Fuel, Gas & Media Specifications
- Gas Type
- Natural gas (L and H quality)
- Sizes : ECOMAX LE 1, 2, 3
- Maximum Air Preheat Temperature : Up to approximately 850 deg C (1562 deg F)
- Maximum Flue Gas Temperature : C Recuperator - 1260 deg C (2300 deg F)|M Recuperator - 1150 deg C (2100 deg F)
- Maintenance Interval : Twice per year (more frequent if media is contaminated)
- Combustion Principle : High‑velocity staged combustion with flue gas recirculation
- Operating Modes : On/Off, cyclic operation
- Burner Versions : ECOMAX LE..C, ECOMAX LE..M
- Adjusting Range : 60 to 100%
- Flame Velocity : 130-170 m/s (430-560 ft/s)
- Capacity Range : (LE 1) - 36 kW/136 kBTU/h, (LE 2) - 60 kW/227 kBTU/h, (LE 3) - 100 kW/378 kBTU/h
- Ignition Type : Direct Spark Ignition
- Flame Control : Flame rod (UV sensor optional)
- Heating Type : Radiant tube heating
- Flame Length : 300 to 450 mm (1 to 1.5 ft) depending on model
- Control Type : On/Off or Low/High/Off (NFPA)
- Applications : Indirect heating (radiant tube systems)
- Burner Type : Low‑NOx self‑recuperative gas burner
- Approvals : EN 746-2, 2006/42/EC
- Material : Cast Aluminium, Double‑Wall Design
- Gas Type : Natural gas (L and H quality)
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
22801300
Insulation 4_5(A) -casing/flue gas
22801300
Insulation 4_5(A) -casing/flue gas
HK405831
SHIM,ECOMAX 0C,FLUE GAS INEX SISC,84MM O
HK405831
SHIM,ECOMAX 0C,FLUE GAS INEX SISC,84MM O
KS21100687
Electrode Eco 2 -545-A=551-MT
KS21100687
Electrode Eco 2 -545-A=551-MT
KS21103986
Elektrode Eco 3 -695-A= 780-MT-APM
KS21103986
Elektrode Eco 3 -695-A= 780-MT-APM
KS21104121
Elektrode Eco 4 -695-A= 822-GD-APM
KS21104121
Elektrode Eco 4 -695-A= 822-GD-APM
KS21106221
SI ECO 1 545 A 566 MT APM ECOMAX 1C545,V
KS21106221
SI ECO 1 545 A 566 MT APM ECOMAX 1C545,V
KS21800137
GSKT SET ECO 1C/2C ECOMAX 1C/2C
KS21800137
GSKT SET ECO 1C/2C ECOMAX 1C/2C
KS21800154
Dichtung-Set Eco 3C
KS21800154
Dichtung-Set Eco 3C
KS21801029
Gaslanze ECO 4C/M-695-SB/(31)
KS21801029
Gaslanze ECO 4C/M-695-SB/(31)
KS21802412
Gaslanze ECO 1M-695-SB/(33)
KS21802412
Gaslanze ECO 1M-695-SB/(33)
