self recuperative and radiant tube burners
SICAFLEX
For installation in metallic and ceramic radiant tubes
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

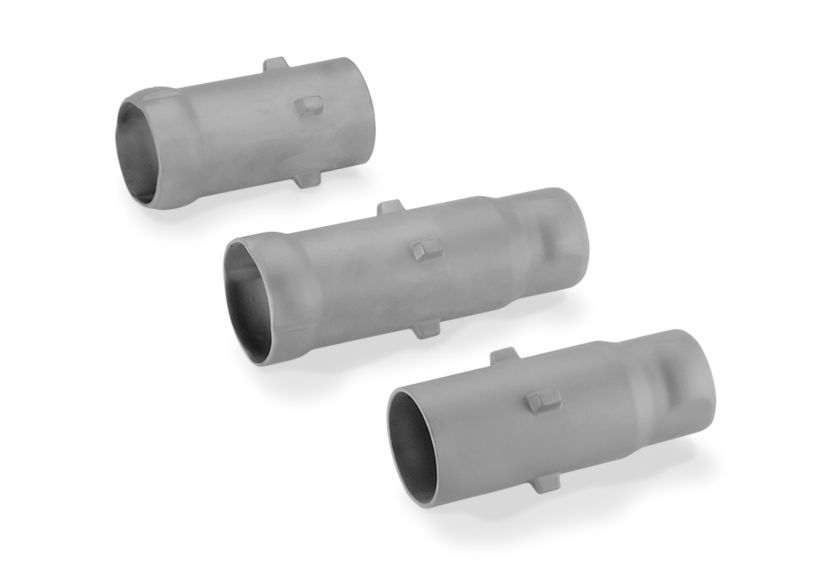

Segmented flame tubes for for installation in metallic and ceramic radiant tubes to guide the flue gases in single-ended radiant tubes.
Features & Benefits:
Features & Benefits:
- Flame tubes can be made to any length by combining individual flame tube segments
- Patented design with bayonet joints allows flame tube to be bent
- Material: SiSiC for maximum thermal capacity
- Minimum radiant tube internal diameter: 88 mm
- Sicaflex external diameter: 84 mm (±1)
- Length: 200 mm Narrow end cut off
Specifications
Applications & Compatibility
- Applications
- Guiding hot flue gases in single-ended radiant tubes
- Compatible Burner Types
- Self‑recuperative burners - ECOMAX..C and ECOMAX..M
Dimensions & Length Specifications
- Segment Length
- Optional: 250, 200, 150 mm
- Standard: 300 mm
Connections & Interfaces
- Segment Connection Type
- Bayonet joint
Ignition, Flame & Supervision Specifications
- Recirculation Gap
- 30 mm ± 5 mm (D1)
Overview
- Product Type
- Segmented ceramic flame tube
Processing & Performance Metrics
- NOx Emissions
- Supports NOx reduction
Maximum/Minimum Temperature Limits
- Maximum Application Temperature
- 1350 deg C
Material Specifications
- Material
- SiSiC (Silicon Infiltrated Silicon Carbide)
Electrical Specifications
- Maintenance Interval
- Not specified; long service life due to ceramic material
Installation & Mounting Specifications
- Installation Orientation
- Horizontal and vertical configurations
Thermal, Flow & Process Characteristics
- Heating Type
- Indirect heating (radiant tube systems)
Mechanical Design & Adjustment Characteristics
- Deflector Gap
- 0.7 to 1.5 x radiant tube internal diameter (V1)
- Cut End Options
- Narrow end (F), wide end (M)
Applications & Compatibility
- Applications
- Guiding hot flue gases in single-ended radiant tubes
- Compatible Burner Types
- Self‑recuperative burners - ECOMAX..C and ECOMAX..M
Dimensions & Length Specifications
- Segment Length
- Optional: 250, 200, 150 mm
- Standard: 300 mm
Connections & Interfaces
- Segment Connection Type
- Bayonet joint
Ignition, Flame & Supervision Specifications
- Recirculation Gap
- 30 mm ± 5 mm (D1)
Overview
- Product Type
- Segmented ceramic flame tube
Processing & Performance Metrics
- NOx Emissions
- Supports NOx reduction
Maximum/Minimum Temperature Limits
- Maximum Application Temperature
- 1350 deg C
Material Specifications
- Material
- SiSiC (Silicon Infiltrated Silicon Carbide)
Electrical Specifications
- Maintenance Interval
- Not specified; long service life due to ceramic material
Installation & Mounting Specifications
- Installation Orientation
- Horizontal and vertical configurations
Thermal, Flow & Process Characteristics
- Heating Type
- Indirect heating (radiant tube systems)
Mechanical Design & Adjustment Characteristics
- Deflector Gap
- 0.7 to 1.5 x radiant tube internal diameter (V1)
- Cut End Options
- Narrow end (F), wide end (M)
- Applications : Guiding hot flue gases in single-ended radiant tubes
- Segment Length : Optional: 250, 200, 150 mm|Standard: 300 mm
- Segment Connection Type : Bayonet joint
- Recirculation Gap : 30 mm ± 5 mm (D1)
- Product Type : Segmented ceramic flame tube
- NOx Emissions : Supports NOx reduction
- Maximum Application Temperature : 1350 deg C
- Material : SiSiC (Silicon Infiltrated Silicon Carbide)
- Maintenance Interval : Not specified; long service life due to ceramic material
- Installation Orientation : Horizontal and vertical configurations
- Heating Type : Indirect heating (radiant tube systems)
- Deflector Gap : 0.7 to 1.5 x radiant tube internal diameter (V1)
- Cut End Options : Narrow end (F), wide end (M)
- Compatible Burner Types : Self‑recuperative burners - ECOMAX..C and ECOMAX..M
