InciniCone
Burners designed for Fume Incineration, and mounted direcly inside the exhaust duct.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

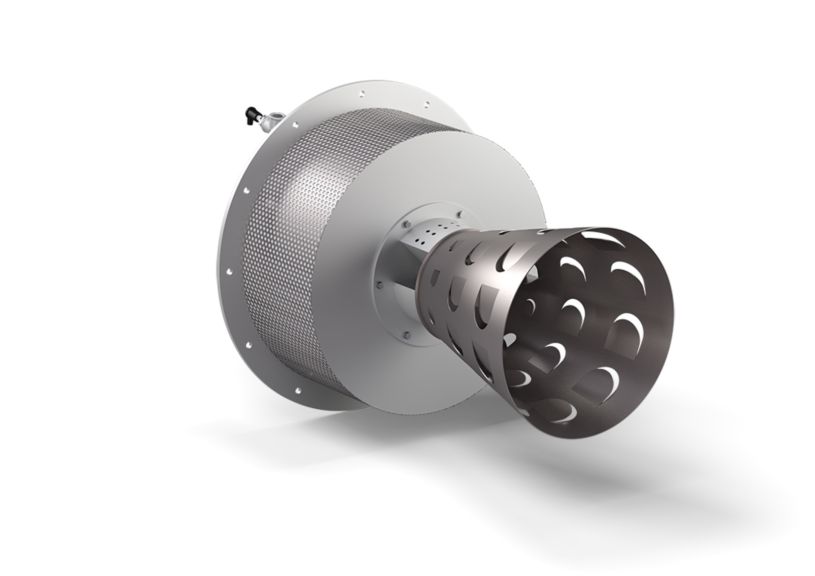

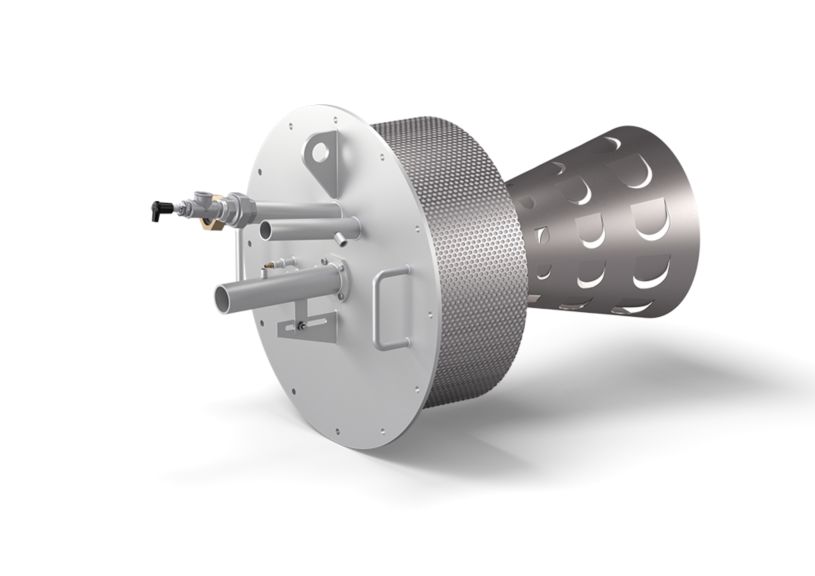

InciniCone burners are designed for fume incineration and the after-heating of exhaust from turbines, dryers, ovens and similar equipment. The burner is mounted in the exhaust duct and requires the exhaust stream to supply all of the oxygen needed for complete combustion. Burner assemblies include the burner body, gas or oil gun, gas pilot with ignition plug and peepsight. Nine sizes are available for this gas or oil firing incineration burner.
Features & Benefits:
Features & Benefits:
- Gas firing with interchangeable gas guns
- Insulated back-plate for cooler working environment
- Fuel turndowns up to 26:1 depending on the application
- Fume stream turndowns up to 2.5:1
- Concentric design ensures even mixing and combustion
- Compact design allows for easy burner removal and access to incinerator
- Minimal maintenance
Specifications
Product Design & Configuration
- Burner Family
- Incini‑Cone
Applications & Compatibility
- Typical Uses
- Thermal incineration, VOC destruction, smoke incineration, deodorization
- Primary Application
- Flue‑Gas Incineration and Reheating Of Flue Air From Turbines, Dryers, Ovens, and Similar Equipment
Installation & Mounting Specifications
- Mounting Orientation
- Installed directly in the flue‑air duct millimetre
Fuel, Gas & Media Specifications
- Fuel Type
- Natural Gas, Propane, Butane, #2 fuel oil
Combustion, Mixing & Fuel Dynamics
- Combustion Principle
- Nozzle‑mixing raw‑gas pilot burner using process (flue) air as combustion air
Air & Combustion Air Specifications
- Combustion Air Supply
- No separate air supply line required; oxygen supplied by the flue‑gas stream
Overview
- Burner Type
- Gas and oil incineration burner
Product Design & Configuration
- Burner Family
- Incini‑Cone
Applications & Compatibility
- Typical Uses
- Thermal incineration, VOC destruction, smoke incineration, deodorization
- Primary Application
- Flue‑Gas Incineration and Reheating Of Flue Air From Turbines, Dryers, Ovens, and Similar Equipment
Installation & Mounting Specifications
- Mounting Orientation
- Installed directly in the flue‑air duct millimetre
Fuel, Gas & Media Specifications
- Fuel Type
- Natural Gas, Propane, Butane, #2 fuel oil
Combustion, Mixing & Fuel Dynamics
- Combustion Principle
- Nozzle‑mixing raw‑gas pilot burner using process (flue) air as combustion air
Air & Combustion Air Specifications
- Combustion Air Supply
- No separate air supply line required; oxygen supplied by the flue‑gas stream
Overview
- Burner Type
- Gas and oil incineration burner
- Burner Family : Incini‑Cone
- Typical Uses : Thermal incineration, VOC destruction, smoke incineration, deodorization
- Primary Application : Flue‑Gas Incineration and Reheating Of Flue Air From Turbines, Dryers, Ovens, and Similar Equipment
- Mounting Orientation : Installed directly in the flue‑air duct millimetre
- Fuel Type : Natural Gas, Propane, Butane, #2 fuel oil
- Combustion Principle : Nozzle‑mixing raw‑gas pilot burner using process (flue) air as combustion air
- Combustion Air Supply : No separate air supply line required; oxygen supplied by the flue‑gas stream
- Burner Type : Gas and oil incineration burner
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
00.4360002.11
CONE,IC,VRSN 2,IC136
00.4360002.11
CONE,IC,VRSN 2,IC136
00.4360002.12
CONE,IC,VRSN 2,IC224
00.4360002.12
CONE,IC,VRSN 2,IC224
00.4360002.13
CONE,IC,VRSN 2,IC360
00.4360002.13
CONE,IC,VRSN 2,IC360
00.4360002.14
CONE,IC,VRSN 2,IC500
00.4360002.14
CONE,IC,VRSN 2,IC500
00.4360002.15
CONE,IC,VRSN 2,IC680
00.4360002.15
CONE,IC,VRSN 2,IC680
00.4360002.16
CONE,IC,VRSN 2,IC900
00.4360002.16
CONE,IC,VRSN 2,IC900
00.4360002.17
CONE,IC,VRSN 2,IC1480
00.4360002.17
CONE,IC,VRSN 2,IC1480
00.4360002.18
CONE,IC,VRSN 2,IC1780
00.4360002.18
CONE,IC,VRSN 2,IC1780
00.4360002.19
CONE,IC,VRSN 2,IC2960
00.4360002.19
CONE,IC,VRSN 2,IC2960
00.4360003.01
CONE,IC,IC 0136,SUB ASY
00.4360003.01
CONE,IC,IC 0136,SUB ASY
