single burners
OPTIMA™ SLS

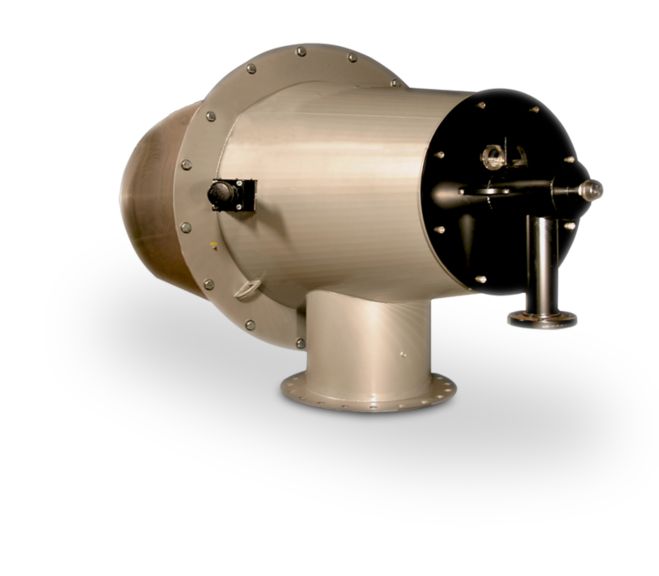

OPTIMA™ SLS is a nozzle-mixing, ultra low NOx and ultra low CO burner.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
OPTIMA™ SLS is a nozzle-mixing, ultra low NOx and ultra low CO burner. The burner is suitable for installation in dryers (spray, flash, fluidized bed, print, paper and others), air heaters, kilns, process heaters, and ovens. The all-metal burner design provides very compact, repeatable heating with a flame fully contained in its discharge sleeve. OPTIMA™ SLS provides optimal performance when coupled with MAXON’s SMARTFIRE® Intelligent Ratio Control System. This advanced control package allows the burner to be fully factory preset for trouble-free installation and start-up. In addition, the intelligence of SMARTFIRE® keeps the burner fully optimized for fuel efficiency and emissions. With the optional communications gateway, your OPTIMA™ SLS Burner can be supported by MAXON over any common phone line. SLS™ Technology reduces NOx in industrial burners by reducing prompt NOx formation in the reacting flow field. This advanced technology is an innovative method to merge stabilized, lean premix technology with flexible nozzle mix advantages. Covered by two US patents, the SLS™ Technology in MAXON products produces extremely low emission of NOx and CO without sacrificing performance or reliability.
Features & Benefits:
Features & Benefits:
- Extremely Clean, reliable heat with ultra Low NOx and CO production for ease of air permitting and environmental compliance
- Large capacity heat releases with a compact, robust flame geometry
- Intelligent ratio control for reliable operation and optimal fuel efficiency
- Direct factory operational support with optional communication gateway
- All steel and high temperature alloy construction for reduced weight and increased durability
- Fuel flexible with natural gas, propane, and butane capability. Contact MAXON for other fuels
- Configurable for dryers, air heaters, ovens, kilns, process heaters, paper machines, and a variety of other industrial heating equipment
Specifications
Applications & Compatibility
- Applications
- Industrial dryers (paper, wood, gypsum, spray, flash, fluidized bed), air heaters, ovens, kilns, process heaters
Performance, Flow & Capacity
- Turndown Ratio
- Up to 8:1
Operating/Process Temperature Ranges
- Process Temperature Range
- 1000 deg F
Pressure Specifications
- Process Pressure Range
- Up to 1.5 psig; contact MAXON for higher pressures
- Minimum Combustion Air Pressure
- 0.5 in wc
- Combustion Air Pressure
- ~32 in WC at full capacity (size‑independent)
Performance Specifications
- Pilot Capacity
- 125,000 to 250,000 Btu/h
Material Specifications
- Material
- Carbon‑Steel Housing; AISI 330 Stainless Steel Sleeve and Cone; AISI 304 Stainless Steel Fuel Nozzles
Installation & Mounting Specifications
- Installation Orientation
- Can be mounted in any orientation
Ignition, Flame & Supervision Specifications
- Ignition Type
- Interrupted pilot required; raw gas or pilot air depending on conditions
- Flame Supervision
- UV or IR Scanners (detect both pilot and main flame)
- Flame Containment
- Fully contained in discharge sleeve
Fuel, Gas & Media Specifications
- Fuel Type
- Natural Gas, Propane, Butane
- Fuel Flexibility
- Supports fuel blends and multiple gaseous fuels
Air & Combustion Air Specifications
- Excess Air for Optimal Emissions
- 43%
Control, Logic & Functional Behavior
- Control System Type
- SMARTFIRE® or SMARTLINK® Intelligent Ratio Control
Combustion, Mixing & Fuel Dynamics
- Combustion Principle
- Nozzle‑mix burner with patented shear layer stabilization (SLS)
Processing & Performance Metrics
- Capacity Range
- 8 to 93.5 MMBtu/h (≈ 2.3 to 27.4 MW)
- CO/NOx Emissions
- NOx: < 9-15 ppm at 3% O₂; CO: Near zero
Electrical Specifications
- Burner Variant
- SLS - Shear Layer Stabilized
Overview
- Burner Type
- Ultra‑low emissions, low‑temperature gas burner
Dimensions & Size Specifications
- Burner Sizes
- 8, 10, 12, 14, 16, 19, 22 in
Product Design & Configuration
- Burner Family
- OPTIMA™
Applications & Compatibility
- Applications
- Industrial dryers (paper, wood, gypsum, spray, flash, fluidized bed), air heaters, ovens, kilns, process heaters
Performance, Flow & Capacity
- Turndown Ratio
- Up to 8:1
Operating/Process Temperature Ranges
- Process Temperature Range
- 1000 deg F
Pressure Specifications
- Process Pressure Range
- Up to 1.5 psig; contact MAXON for higher pressures
- Minimum Combustion Air Pressure
- 0.5 in wc
- Combustion Air Pressure
- ~32 in WC at full capacity (size‑independent)
Performance Specifications
- Pilot Capacity
- 125,000 to 250,000 Btu/h
Material Specifications
- Material
- Carbon‑Steel Housing; AISI 330 Stainless Steel Sleeve and Cone; AISI 304 Stainless Steel Fuel Nozzles
Installation & Mounting Specifications
- Installation Orientation
- Can be mounted in any orientation
Ignition, Flame & Supervision Specifications
- Ignition Type
- Interrupted pilot required; raw gas or pilot air depending on conditions
- Flame Supervision
- UV or IR Scanners (detect both pilot and main flame)
- Flame Containment
- Fully contained in discharge sleeve
Fuel, Gas & Media Specifications
- Fuel Type
- Natural Gas, Propane, Butane
- Fuel Flexibility
- Supports fuel blends and multiple gaseous fuels
Air & Combustion Air Specifications
- Excess Air for Optimal Emissions
- 43%
Control, Logic & Functional Behavior
- Control System Type
- SMARTFIRE® or SMARTLINK® Intelligent Ratio Control
Combustion, Mixing & Fuel Dynamics
- Combustion Principle
- Nozzle‑mix burner with patented shear layer stabilization (SLS)
Processing & Performance Metrics
- Capacity Range
- 8 to 93.5 MMBtu/h (≈ 2.3 to 27.4 MW)
- CO/NOx Emissions
- NOx: < 9-15 ppm at 3% O₂; CO: Near zero
Electrical Specifications
- Burner Variant
- SLS - Shear Layer Stabilized
Overview
- Burner Type
- Ultra‑low emissions, low‑temperature gas burner
Dimensions & Size Specifications
- Burner Sizes
- 8, 10, 12, 14, 16, 19, 22 in
Product Design & Configuration
- Burner Family
- OPTIMA™
- Applications : Industrial dryers (paper, wood, gypsum, spray, flash, fluidized bed), air heaters, ovens, kilns, process heaters
- Turndown Ratio : Up to 8:1
- Process Temperature Range : 1000 deg F
- Process Pressure Range : Up to 1.5 psig; contact MAXON for higher pressures
- Pilot Capacity : 125,000 to 250,000 Btu/h
- Minimum Combustion Air Pressure : 0.5 in wc
- Material : Carbon‑Steel Housing; AISI 330 Stainless Steel Sleeve and Cone; AISI 304 Stainless Steel Fuel Nozzles
- Installation Orientation : Can be mounted in any orientation
- Ignition Type : Interrupted pilot required; raw gas or pilot air depending on conditions
- Fuel Type : Natural Gas, Propane, Butane
- Fuel Flexibility : Supports fuel blends and multiple gaseous fuels
- Flame Supervision : UV or IR Scanners (detect both pilot and main flame)
- Flame Containment : Fully contained in discharge sleeve
- Excess Air for Optimal Emissions : 43%
- Control System Type : SMARTFIRE® or SMARTLINK® Intelligent Ratio Control
- Combustion Principle : Nozzle‑mix burner with patented shear layer stabilization (SLS)
- Combustion Air Pressure : ~32 in WC at full capacity (size‑independent)
- Capacity Range : 8 to 93.5 MMBtu/h (≈ 2.3 to 27.4 MW)
- CO/NOx Emissions : NOx: < 9-15 ppm at 3% O₂; CO: Near zero
- Burner Variant : SLS - Shear Layer Stabilized
- Burner Type : Ultra‑low emissions, low‑temperature gas burner
- Burner Sizes : 8, 10, 12, 14, 16, 19, 22 in
- Burner Family : OPTIMA™
Others
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
08OPTSLS
8" OPTIMA SLS Burner
08OPTSLS
8" OPTIMA SLS Burner
1074901
12" BRNR HSG
1074901
12" BRNR HSG
1074904
12" FUEL NZL
1074904
12" FUEL NZL
1074907
12" INSL HSG
1074907
12" INSL HSG
1074908
12" CONE
1074908
12" CONE
1074909
12" DIS SLV
1074909
12" DIS SLV
1074912
BKPLT GSKT
1074912
BKPLT GSKT
1074913
PILT GSKT
1074913
PILT GSKT
1076189
10" BRNR HSG
1076189
10" BRNR HSG
1076191
10" FUEL NZL
1076191
10" FUEL NZL
