OVENPAK® 400

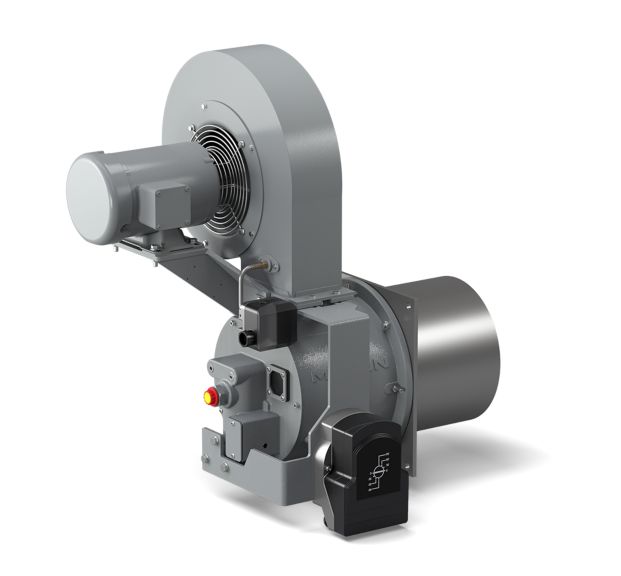

OVENPAK® 400 Burners are nozzle-mixing gas burners for many industrial direct-fired applications where clean combustion and high turndown are required.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
MAXON's OVENPAK® 400 Series is the world's most flexible and reliable industrial burner. The OVENPAK® burns most any fuel gas and requires only low pressure fuel. This natural gas burner provides clean combustion with low NOx levels while providing unmatched turndown. OVENPAK® Gas Burners provide outstanding performance in ovens and dryers, paint finishing lines, paper and textile machines, food baking ovens, coffee roasters, grain dryers, and fume incinerators.
Features & Benefits:
Features & Benefits:
- Burns any clean fuel gas
- Fires into passing air streams
- Requires only low pressure gas
- Provides clean combustion with low NOx levels
- Compact burner design provides quick and easy installation
- Simple field adjustment and maintenance
Specifications
Applications & Compatibility
- Applications
- Ovens, dryers, paint finishing, paper/textile machines, food baking, etc.
Performance, Flow & Capacity
- Turndown Ratio
- Up to 40:1
Processing & Performance Metrics
- NOx Emissions
- Low NOx combustion
- Capacity Range
- Up to 16,500,000 Btu/hr, model‑dependent
Installation & Mounting Specifications
- Mounting Options
- Flanged burner body, can be installed in any orientation (subject to controls)
Air & Combustion Air Specifications
- Maximum Discharge Air Volume
- Up to 12,000 SCFM
- Combustion Air Supply
- Integral combustion air blower or external blower (EB versions)
Air/Exhaust/Flue Gas Temperatures
- Maximum Discharge Air Temperature
- 600 deg F (316 deg C)
Mechanical Design & Adjustment Characteristics
- Impeller Type
- Non-sparking paddle wheel type
- Drive Options
- Manual handle, electric control motor, or universal joint arrangements
Ignition, Flame & Supervision Specifications
- Ignition Type
- Spark ignitor with pilot
- Flame Supervision
- Flame rod or UV detector
Pressure Specifications
- Gas Supply Pressure
- Low‑pressure gas required
Fuel, Gas & Media Specifications
- Fuel Type
- Any clean fuel gas (natural gas standard)
Actuation, Valve & Motion Control Specifications
- Discharge Sleeve
- Stainless Steel Discharge Sleeve (standard or high‑temperature options)
Control, Logic & Functional Behavior
- Control Options
- Manual, Hi/Lo, Universal Joint, MRV (Micro-Ratio Valve)
Product Overview & Classification
- Construction
- Robust industrial design with stainless‑steel sleeve and durable burner body
Software, Configuration & Cyber
- Configurations
- Standard (integral blower), EB, 400‑MA, EB‑MA, EB‑MRV
Combustion, Mixing & Fuel Dynamics
- Combustion Principle
- Nozzle‑mixing burner with patented mixing cone
Overview
- Burner Type
- Direct‑fired gas burner
Product Design & Configuration
- Burner Series
- Model 400
- Burner Family
- OVENPAK®
Applications & Compatibility
- Applications
- Ovens, dryers, paint finishing, paper/textile machines, food baking, etc.
Performance, Flow & Capacity
- Turndown Ratio
- Up to 40:1
Processing & Performance Metrics
- NOx Emissions
- Low NOx combustion
- Capacity Range
- Up to 16,500,000 Btu/hr, model‑dependent
Installation & Mounting Specifications
- Mounting Options
- Flanged burner body, can be installed in any orientation (subject to controls)
Air & Combustion Air Specifications
- Maximum Discharge Air Volume
- Up to 12,000 SCFM
- Combustion Air Supply
- Integral combustion air blower or external blower (EB versions)
Air/Exhaust/Flue Gas Temperatures
- Maximum Discharge Air Temperature
- 600 deg F (316 deg C)
Mechanical Design & Adjustment Characteristics
- Impeller Type
- Non-sparking paddle wheel type
- Drive Options
- Manual handle, electric control motor, or universal joint arrangements
Ignition, Flame & Supervision Specifications
- Ignition Type
- Spark ignitor with pilot
- Flame Supervision
- Flame rod or UV detector
Pressure Specifications
- Gas Supply Pressure
- Low‑pressure gas required
Fuel, Gas & Media Specifications
- Fuel Type
- Any clean fuel gas (natural gas standard)
Actuation, Valve & Motion Control Specifications
- Discharge Sleeve
- Stainless Steel Discharge Sleeve (standard or high‑temperature options)
Control, Logic & Functional Behavior
- Control Options
- Manual, Hi/Lo, Universal Joint, MRV (Micro-Ratio Valve)
Product Overview & Classification
- Construction
- Robust industrial design with stainless‑steel sleeve and durable burner body
Software, Configuration & Cyber
- Configurations
- Standard (integral blower), EB, 400‑MA, EB‑MA, EB‑MRV
Combustion, Mixing & Fuel Dynamics
- Combustion Principle
- Nozzle‑mixing burner with patented mixing cone
Overview
- Burner Type
- Direct‑fired gas burner
Product Design & Configuration
- Burner Series
- Model 400
- Burner Family
- OVENPAK®
- Applications : Ovens, dryers, paint finishing, paper/textile machines, food baking, etc.
- Turndown Ratio : Up to 40:1
- NOx Emissions : Low NOx combustion
- Mounting Options : Flanged burner body, can be installed in any orientation (subject to controls)
- Maximum Discharge Air Volume : Up to 12,000 SCFM
- Maximum Discharge Air Temperature : 600 deg F (316 deg C)
- Impeller Type : Non-sparking paddle wheel type
- Ignition Type : Spark ignitor with pilot
- Gas Supply Pressure : Low‑pressure gas required
- Fuel Type : Any clean fuel gas (natural gas standard)
- Flame Supervision : Flame rod or UV detector
- Drive Options : Manual handle, electric control motor, or universal joint arrangements
- Discharge Sleeve : Stainless Steel Discharge Sleeve (standard or high‑temperature options)
- Control Options : Manual, Hi/Lo, Universal Joint, MRV (Micro-Ratio Valve)
- Construction : Robust industrial design with stainless‑steel sleeve and durable burner body
- Configurations : Standard (integral blower), EB, 400‑MA, EB‑MA, EB‑MRV
- Combustion Principle : Nozzle‑mixing burner with patented mixing cone
- Combustion Air Supply : Integral combustion air blower or external blower (EB versions)
- Capacity Range : Up to 16,500,000 Btu/hr, model‑dependent
- Burner Type : Direct‑fired gas burner
- Burner Series : Model 400
- Burner Family : OVENPAK®
