ThermAir
Air Heating Burner with Fixed-Air Wide Turndown
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

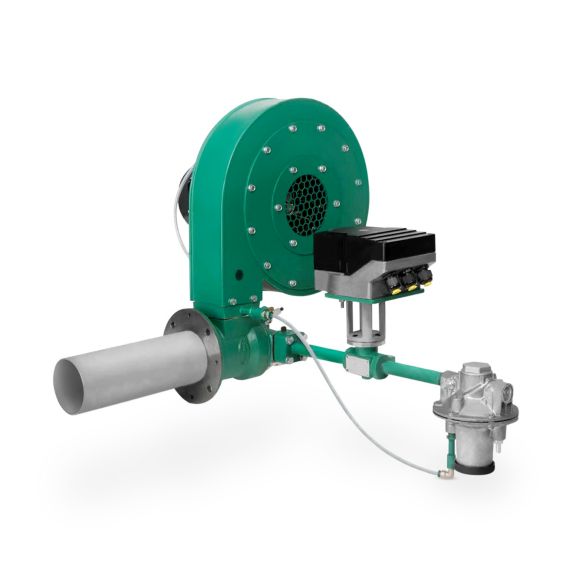

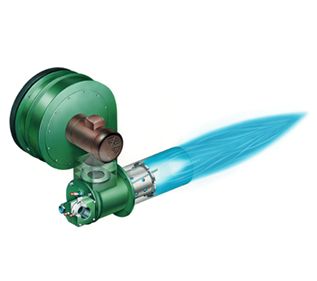

The Eclipse ThermAir burner is a nozzle-mixing burner with a packaged air blower that's designed to fire with fixed combustion air over a wide turndown range. Fixed air operation plus integral air and gas orifices make the ThermAir one of the simplest burners ever to quickly setup and adjust. ThermAir burners are ideal on heaters, textile ovens and in situations where the fuel is highly variable (800 Btu/cf to 3200 Btu/cf). Plus they're perfect for ovens needing additional air to carry moisture away from the product being heated.
Features & Benefits:
Features & Benefits:
- ThermAir burners are unsurpassed for quality, safety, reliability and efficiency
- Multi-fuel capability (natural gas, propane, butane) without changing nozzle
- Direct spark ignition
- Low NOx emissions: 60 ppm at high fire
- Easy to install, operate and maintain
- Right or left hand piping; readily adapts to your present system
- Burner can be disassembled from the rear
- Global design: metric/English gas interface
- 30:1 turndown
Specifications
Operating Limits, Durability & Lifecycle
- Altitude Adjustment
- Capacity reduced ~3% per 1000 ft (300 m) above sea level
Actuation, Valve & Motion Control Specifications
- Valve Train Requirement
- Main gas shut‑off valve train per NFPA recommendations
Applications & Compatibility
- Typical Applications
- Heaters, textile ovens, applications with highly variable fuel
- Primary Application
- Direct and indirect air heating
Performance, Flow & Capacity
- Turndown Ratio
- Greater than 30:1
Connections & Interfaces
- Pipe Connection Type
- NPT or Rc Threaded
Overview
- Models
- TA0015 - TA0500
- Burner Type
- Nozzle‑mix air‑heating burner
Mechanical Design & Adjustment Characteristics
- Loading Line
- Plastic, Flexible Braided Stainless Steel, Rigid Stainless Tube
Actuation, Control & Motion Characteristics
- Limit Switch Options
- High, low, high and low, or none
Installation & Mounting Specifications
- Installation Orientation
- Vertical Down, Vertical Up, Horizontal
Ignition, Flame & Supervision Specifications
- Ignition Type
- Direct Spark Ignition
- Ignition Transformer Specs
- 6000 to 8000 VAC, ≥ 0.02 A, Full wave output
- Flame Sensor
- Flame rod (TA0015 to TA0100), UV scanner (all models)
Combustion, Fuel & Mixing Sub‑Systems
- Gas Control Options
- Stripped, Basic (modulating valve), Complete (modulating valve + ratio regulator)
Fuel, Gas & Media Specifications
- Fuel Type
- Multiple fuels (Natural Gas, Propane, Butane)
Motor Specifications
- Control Motor Specifications
- ≤ 2 rpm, ≥ 25 in-lb torque, 90 deg stroke, Modulating control
- Control Motor
- Kromschröder IC 20 actuator or customer‑supplied motor
Material Specifications
- Combustor Materials
- Alloy tube (low temp), SiC tube or refractory block (high temp)
Combustion, Mixing & Fuel Dynamics
- Combustion Principle
- Nozzle‑mix combustion
Air & Combustion Air Specifications
- Combustion Air Requirements
- Fresh (20.9% O₂), clean, temperature ≤ 150 deg F (65 deg C)
Processing & Performance Metrics
- Capacity Range
- 150,000 to 5,000,000 BTU/h (44 to 1465 kW)
Product Design & Configuration
- Burner Family
- ThermAir®
Combustion Air, Blower & Emissions Specifications
- Blower Configuration
- Right-hand standard; left-hand optional
Operating Limits, Durability & Lifecycle
- Altitude Adjustment
- Capacity reduced ~3% per 1000 ft (300 m) above sea level
Actuation, Valve & Motion Control Specifications
- Valve Train Requirement
- Main gas shut‑off valve train per NFPA recommendations
Applications & Compatibility
- Typical Applications
- Heaters, textile ovens, applications with highly variable fuel
- Primary Application
- Direct and indirect air heating
Performance, Flow & Capacity
- Turndown Ratio
- Greater than 30:1
Connections & Interfaces
- Pipe Connection Type
- NPT or Rc Threaded
Overview
- Models
- TA0015 - TA0500
- Burner Type
- Nozzle‑mix air‑heating burner
Mechanical Design & Adjustment Characteristics
- Loading Line
- Plastic, Flexible Braided Stainless Steel, Rigid Stainless Tube
Actuation, Control & Motion Characteristics
- Limit Switch Options
- High, low, high and low, or none
Installation & Mounting Specifications
- Installation Orientation
- Vertical Down, Vertical Up, Horizontal
Ignition, Flame & Supervision Specifications
- Ignition Type
- Direct Spark Ignition
- Ignition Transformer Specs
- 6000 to 8000 VAC, ≥ 0.02 A, Full wave output
- Flame Sensor
- Flame rod (TA0015 to TA0100), UV scanner (all models)
Combustion, Fuel & Mixing Sub‑Systems
- Gas Control Options
- Stripped, Basic (modulating valve), Complete (modulating valve + ratio regulator)
Fuel, Gas & Media Specifications
- Fuel Type
- Multiple fuels (Natural Gas, Propane, Butane)
Motor Specifications
- Control Motor Specifications
- ≤ 2 rpm, ≥ 25 in-lb torque, 90 deg stroke, Modulating control
- Control Motor
- Kromschröder IC 20 actuator or customer‑supplied motor
Material Specifications
- Combustor Materials
- Alloy tube (low temp), SiC tube or refractory block (high temp)
Combustion, Mixing & Fuel Dynamics
- Combustion Principle
- Nozzle‑mix combustion
Air & Combustion Air Specifications
- Combustion Air Requirements
- Fresh (20.9% O₂), clean, temperature ≤ 150 deg F (65 deg C)
Processing & Performance Metrics
- Capacity Range
- 150,000 to 5,000,000 BTU/h (44 to 1465 kW)
Product Design & Configuration
- Burner Family
- ThermAir®
Combustion Air, Blower & Emissions Specifications
- Blower Configuration
- Right-hand standard; left-hand optional
- Altitude Adjustment : Capacity reduced ~3% per 1000 ft (300 m) above sea level
- Valve Train Requirement : Main gas shut‑off valve train per NFPA recommendations
- Typical Applications : Heaters, textile ovens, applications with highly variable fuel
- Turndown Ratio : Greater than 30:1
- Primary Application : Direct and indirect air heating
- Pipe Connection Type : NPT or Rc Threaded
- Models : TA0015 - TA0500
- Loading Line : Plastic, Flexible Braided Stainless Steel, Rigid Stainless Tube
- Limit Switch Options : High, low, high and low, or none
- Installation Orientation : Vertical Down, Vertical Up, Horizontal
- Ignition Type : Direct Spark Ignition
- Ignition Transformer Specs : 6000 to 8000 VAC, ≥ 0.02 A, Full wave output
- Gas Control Options : Stripped, Basic (modulating valve), Complete (modulating valve + ratio regulator)
- Fuel Type : Multiple fuels (Natural Gas, Propane, Butane)
- Flame Sensor : Flame rod (TA0015 to TA0100), UV scanner (all models)
- Control Motor Specifications : ≤ 2 rpm, ≥ 25 in-lb torque, 90 deg stroke, Modulating control
- Control Motor : Kromschröder IC 20 actuator or customer‑supplied motor
- Combustor Materials : Alloy tube (low temp), SiC tube or refractory block (high temp)
- Combustion Principle : Nozzle‑mix combustion
- Combustion Air Requirements : Fresh (20.9% O₂), clean, temperature ≤ 150 deg F (65 deg C)
- Capacity Range : 150,000 to 5,000,000 BTU/h (44 to 1465 kW)
- Burner Type : Nozzle‑mix air‑heating burner
- Burner Family : ThermAir®
- Blower Configuration : Right-hand standard; left-hand optional
