single burners

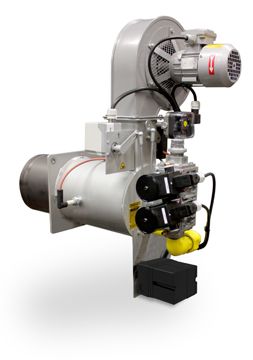

VALUPAK®-II
The VALUPAK®-II gas burner is specifically designed for applications where burners are used under balanced pressure conditions.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The MAXON VALUPAK®-II gas burner provides a significant enhancement to the legacy VALUPAK® offering. The VALUPAK®-II is designed for process air heating applications and provides a very stable and clean combustion environment. This packaged solution offers better control on CO over the entire turndown of the burner as well as the availability of a pilot connection. The burner can be easily switched between natural gas and propane in order to take advantage of relative fuel savings/availability. The MAXON VALUPAK®-II burner is produced in Vilvoorde, Belgium and Suzhou, China.
Features & Benefits:
Features & Benefits:
- High turndown
- Available in 4 sizes
- Capacities 2 kW - 558 kW (HHV)
- Stable and clean combustion
- Suitable for UV scanner and flame rod
- Low gas pressure requirements
- Ease of installation and operation with low maintenance requirements
- All metal construction
- Multi voltage and frequency blower motors
- Better control on CO over the entire turndown of the burner
- Pilot connection availability
- Easily Switch between Natural Gas and Propane
Specifications
Applications & Compatibility
- Applications
- Process Air Heating, Textile Machines, Printing Machines, Dryers
Performance, Flow & Capacity
- Turndown Ratio
- High turndown (up to approximately 70:1 depending on model)
Connections & Interfaces
- Spark Ignitor Connection
- 1/2 in NPT
- Gas Inlet Connection
- 1/2 to 1 in NPT (model dependent)
Safety, Protection & Reliability
- Protection Class
- IP54
Pressure Specifications
- Operating Pressure Range
- Balanced pressure (0 mbar duct pressure)
Electrical Specifications
- Motor Voltage
- 230 to 480 V
- Frequency
- 50/60 Hz
Motor Specifications
- Motor Type
- Single‑phase (selected models), Triphase
Installation & Mounting Specifications
- Installation Orientation
- Any orientation
Ignition, Flame & Supervision Specifications
- Ignition Type
- Direct Spark Ignition
Performance Specifications
- Heat Capacity Range
- 2 to 950 kW (LHV, size dependent)
Fuel, Gas & Media Specifications
- Fuel Type
- Natural Gas (C1), LPG/Propane (C3)
Processing & Performance Metrics
- Emissions
- CO Emissions (NG) -< 25 to 50 mg/Nm³ at 17% O₂ (model dependent)
- NOx Emissions (NG) - Typically 25 to 40 mg/Nm³ at 17% O₂
Product Overview & Classification
- Construction
- All‑metal
Combustion Design & Characteristics
- Combustion Type
- Stable, clean combustion
Overview
- Burner Type
- Nozzle-mixing burner with packaged air blower
Combustion Air, Blower & Emissions Specifications
- Blower Types
- UHC102, UHC122, UHC142, UHC182, UHC202, UMI300, UMI390
Standards & Certifications
- Approvals
- Eurasian Customs Union
Applications & Compatibility
- Applications
- Process Air Heating, Textile Machines, Printing Machines, Dryers
Performance, Flow & Capacity
- Turndown Ratio
- High turndown (up to approximately 70:1 depending on model)
Connections & Interfaces
- Spark Ignitor Connection
- 1/2 in NPT
- Gas Inlet Connection
- 1/2 to 1 in NPT (model dependent)
Safety, Protection & Reliability
- Protection Class
- IP54
Pressure Specifications
- Operating Pressure Range
- Balanced pressure (0 mbar duct pressure)
Electrical Specifications
- Motor Voltage
- 230 to 480 V
- Frequency
- 50/60 Hz
Motor Specifications
- Motor Type
- Single‑phase (selected models), Triphase
Installation & Mounting Specifications
- Installation Orientation
- Any orientation
Ignition, Flame & Supervision Specifications
- Ignition Type
- Direct Spark Ignition
Performance Specifications
- Heat Capacity Range
- 2 to 950 kW (LHV, size dependent)
Fuel, Gas & Media Specifications
- Fuel Type
- Natural Gas (C1), LPG/Propane (C3)
Processing & Performance Metrics
- Emissions
- CO Emissions (NG) -< 25 to 50 mg/Nm³ at 17% O₂ (model dependent)
- NOx Emissions (NG) - Typically 25 to 40 mg/Nm³ at 17% O₂
Product Overview & Classification
- Construction
- All‑metal
Combustion Design & Characteristics
- Combustion Type
- Stable, clean combustion
Overview
- Burner Type
- Nozzle-mixing burner with packaged air blower
Combustion Air, Blower & Emissions Specifications
- Blower Types
- UHC102, UHC122, UHC142, UHC182, UHC202, UMI300, UMI390
Standards & Certifications
- Approvals
- Eurasian Customs Union
- Applications : Process Air Heating, Textile Machines, Printing Machines, Dryers
- Turndown Ratio : High turndown (up to approximately 70:1 depending on model)
- Spark Ignitor Connection : 1/2 in NPT
- Protection Class : IP54
- Operating Pressure Range : Balanced pressure (0 mbar duct pressure)
- Motor Voltage : 230 to 480 V
- Motor Type : Single‑phase (selected models), Triphase
- Installation Orientation : Any orientation
- Ignition Type : Direct Spark Ignition
- Heat Capacity Range : 2 to 950 kW (LHV, size dependent)
- Gas Inlet Connection : 1/2 to 1 in NPT (model dependent)
- Fuel Type : Natural Gas (C1), LPG/Propane (C3)
- Frequency : 50/60 Hz
- Emissions : CO Emissions (NG) -< 25 to 50 mg/Nm³ at 17% O₂ (model dependent)|NOx Emissions (NG) - Typically 25 to 40 mg/Nm³ at 17% O₂
- Construction : All‑metal
- Combustion Type : Stable, clean combustion
- Burner Type : Nozzle-mixing burner with packaged air blower
- Blower Types : UHC102, UHC122, UHC142, UHC182, UHC202, UMI300, UMI390
- Approvals : Eurasian Customs Union
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
307149
MIXING CONE VALUPAK II-60
307149
MIXING CONE VALUPAK II-60
307152
VALUPAK II-60-UHC102-NG
307152
VALUPAK II-60-UHC102-NG
307153
VALUPAK II-60-UHC122-NG+LPG
307153
VALUPAK II-60-UHC122-NG+LPG
307154
VALUPAK II-60-UMI300-NG+LPG
307154
VALUPAK II-60-UMI300-NG+LPG
307155
VALUPAK II-60-UHC102-LPG
307155
VALUPAK II-60-UHC102-LPG
307911
VAL II-150 EB & 150mm SLV
307911
VAL II-150 EB & 150mm SLV
307912
VALUPAK II-300 EB
307912
VALUPAK II-300 EB
307913
VALUPAK II-600 EB
307913
VALUPAK II-600 EB
307914
VALUPAK II-900 EB
307914
VALUPAK II-900 EB
310947
DISCHARGE SLEEVE VP600 L=210
310947
DISCHARGE SLEEVE VP600 L=210
