Prepiped LP (Liquid Propane) Manifold PLPM
Pre-piped liquid propane manifold designed to meet industry-accepted safety standards for liquid propane delivery to combustion systems.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

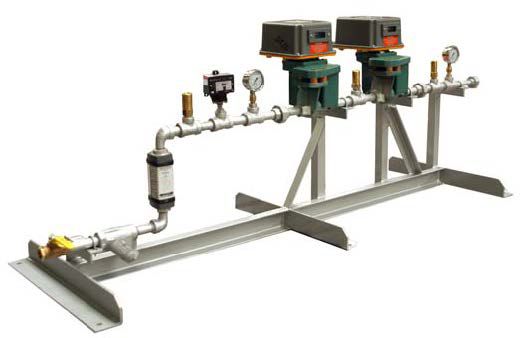

The PLPM is a liquid propane manifold is a factory assembled prepiped LP train that permits easy, fast installation. The manifold is available for liquid propane and various propane/butane mixtures. Additionally, the PLPM is packaged to provide optimum convenience and ease of maintenance.
Each PLPM is equipped with the following items:
Each PLPM is equipped with the following items:
- Mounting Rack
- Inlet Ball Valve
- Y Strainer
- In-line Flow Meter
- Low/High LP Pressure Switch
- Inlet Pressure Gauge & Needle Valve
- (2) Automatic Safety Shutoff Valves With Visual Indication, and Valve Open/Closed Switches
- Outlet Pressure Gauge & Needle Valve
- (3) Safety Pressure Relief Valves
Specifications
Fuel, Gas & Media Specifications
- Alternate Fuels
- Propane/butane mixtures
- Fuel Type
- Liquid propane
Overview
- Product Type
- Factory‑assembled, prepiped liquid propane (LP) gas manifold
Installation & Mounting Specifications
- Mounting Types
- Supplied with mounting rack
Pressure Specifications
- Maximum Service Pressure
- 300 psig (2070 kPa)
Filtration & Media Handling
- Filtration
- “Y” strainer
Connections & Interfaces
- Connection Size
- 3/4 in NPT and 1‑1/4 in NPT (model‑dependent) inch
Processing & Performance Metrics
- Capacity Range
- Approximately 400 to 2300 gph (1510 to 8700 lph), model‑dependent
Fuel, Gas & Media Specifications
- Alternate Fuels
- Propane/butane mixtures
- Fuel Type
- Liquid propane
Overview
- Product Type
- Factory‑assembled, prepiped liquid propane (LP) gas manifold
Installation & Mounting Specifications
- Mounting Types
- Supplied with mounting rack
Pressure Specifications
- Maximum Service Pressure
- 300 psig (2070 kPa)
Filtration & Media Handling
- Filtration
- “Y” strainer
Connections & Interfaces
- Connection Size
- 3/4 in NPT and 1‑1/4 in NPT (model‑dependent) inch
Processing & Performance Metrics
- Capacity Range
- Approximately 400 to 2300 gph (1510 to 8700 lph), model‑dependent
- Alternate Fuels : Propane/butane mixtures
- Product Type : Factory‑assembled, prepiped liquid propane (LP) gas manifold
- Mounting Types : Supplied with mounting rack
- Maximum Service Pressure : 300 psig (2070 kPa)
- Fuel Type : Liquid propane
- Filtration : “Y” strainer
- Connection Size : 3/4 in NPT and 1‑1/4 in NPT (model‑dependent) inch
- Capacity Range : Approximately 400 to 2300 gph (1510 to 8700 lph), model‑dependent
