Prepiped Oil / Heavy Oil Manifold POM/POM-H

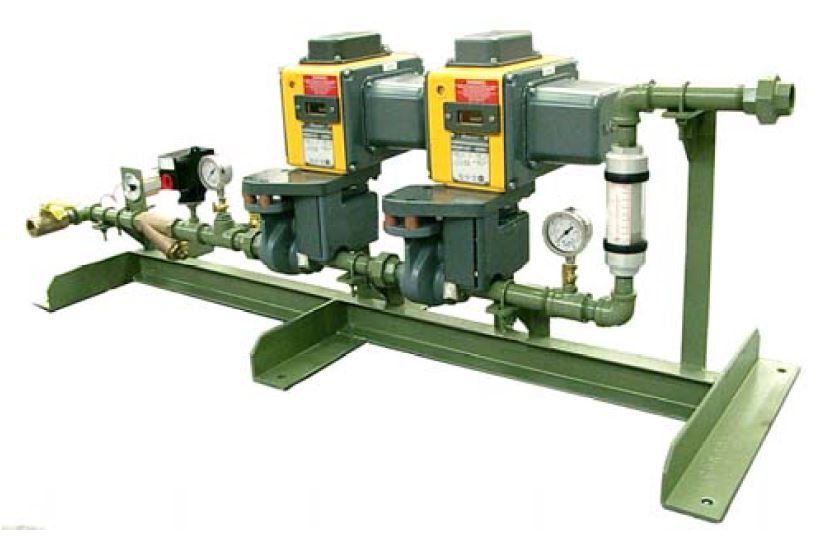

Factory assembled prepiped oil train that permits easy, fast installation. The manifold is available for light fuel oil (POM) or heavy fuel oil (POM-H) applications.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The POM manifold is designed to meet industry-accepted safety standards for fuel oil delivery to combustion systems. Additionally, the POM is packaged to provide optimum convenience and ease of maintenance.
Each POM is equipped with the following items:
Each POM is equipped with the following items:
- Mounting Rack
- Inlet Ball Valve
- Y Strainer
- In-line Flow Meter
- Low/High Oil Pressure Switch
- Inlet Pressure Gauge & Needle Valve
- (2) Automatic Safety Shutoff Valves With Visual Indication and Valve Open/Closed Switches
- Outlet Pressure Gauge & Needle Valve
- Low/High Oil Temperature Controller
- Normally Open Return Solenoid Valve
- Return Line Ball Valve
Specifications
Applications & Compatibility
- Applications
- Asphalt, mining, air heating, and other oil‑fired applications
- Can be used as a system shutoff for multiburner furnaces, kilns, and ovens
- Single burner firing applications
Overview
- Product Type
- Factory‑assembled, prepiped oil/heavy oil fuel manifold
Operating/Process Temperature Ranges
- Maximum Operating Temperature
- Fuel oil up to 250 deg F (121 deg C)
Pressure Specifications
- Maximum Operating Pressure
- 80 psig (550 kPa) kilopascal
Connections & Interfaces
- Connection Size
- 3/4 in, 1 in, and 1‑1/4 in NPT (model‑dependent) inch
Processing & Performance Metrics
- Capacity Range
- Heavy Oil - 288 to 1,720 gph (1,090 to 6,510 lph), model‑dependent
- Light Oil - 300 to 1,800 gph (1,140 to 6,810 lph), model‑dependent
Applications & Compatibility
- Applications
- Asphalt, mining, air heating, and other oil‑fired applications
- Can be used as a system shutoff for multiburner furnaces, kilns, and ovens
- Single burner firing applications
Overview
- Product Type
- Factory‑assembled, prepiped oil/heavy oil fuel manifold
Operating/Process Temperature Ranges
- Maximum Operating Temperature
- Fuel oil up to 250 deg F (121 deg C)
Pressure Specifications
- Maximum Operating Pressure
- 80 psig (550 kPa) kilopascal
Connections & Interfaces
- Connection Size
- 3/4 in, 1 in, and 1‑1/4 in NPT (model‑dependent) inch
Processing & Performance Metrics
- Capacity Range
- Heavy Oil - 288 to 1,720 gph (1,090 to 6,510 lph), model‑dependent
- Light Oil - 300 to 1,800 gph (1,140 to 6,810 lph), model‑dependent
- Applications : Asphalt, mining, air heating, and other oil‑fired applications|Can be used as a system shutoff for multiburner furnaces, kilns, and ovens|Single burner firing applications
- Product Type : Factory‑assembled, prepiped oil/heavy oil fuel manifold
- Maximum Operating Temperature : Fuel oil up to 250 deg F (121 deg C)
- Maximum Operating Pressure : 80 psig (550 kPa) kilopascal
- Connection Size : 3/4 in, 1 in, and 1‑1/4 in NPT (model‑dependent) inch
- Capacity Range : Heavy Oil - 288 to 1,720 gph (1,090 to 6,510 lph), model‑dependent|Light Oil - 300 to 1,800 gph (1,140 to 6,810 lph), model‑dependent
