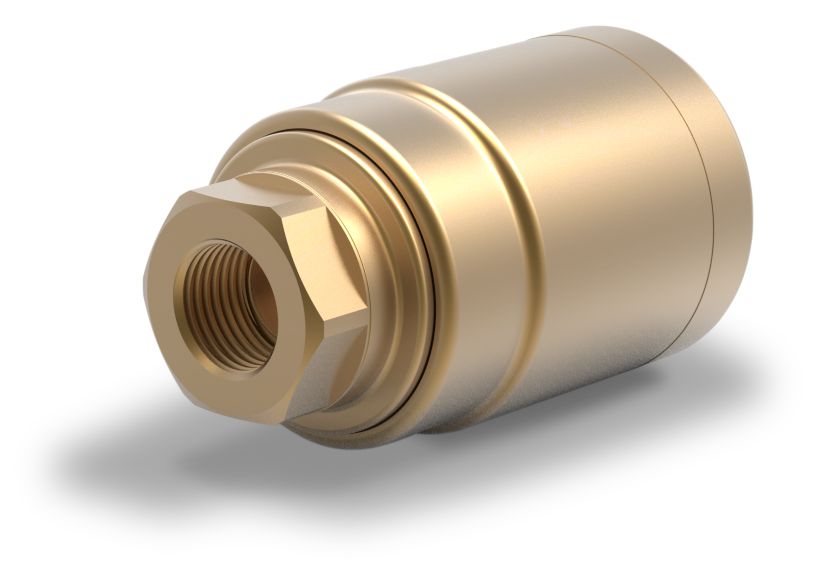

Non-return gas valves GRS, GRSF
Non-return gas valve to prevent gas creepage or surge, for gas, air and oxygen.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Non-return gas valve to prevent gas creepage or surge, for gas, air and oxygen.
Features & Benefits:
Features & Benefits:
- GRS: not flame-arresting
- GRSF: with sinter bronze flame arrester, so flame-arresting in the case of use with combustion air
- DN: 15 to 80
- Connection: thread or flange
- pu: max. 100 mbar or 5 bar
Specifications
Overview
- Design
- Robust
- Product Type
- GRS: Non-return gas valve
- GRSF: Non-return gas valve with flame arrester
Pressure Specifications
- Opening Pressure Range
- Low
- Inlet Pressure Range
- GRS: Up to 25 bar (DN 15-25), up to 20 bar (DN 40-50), up to 10 bar (DN 80)
- GRSF: Up to 5 bar (DN 15-50)
Connections & Interfaces
- Pipe Connection Type
- Rp Internal Thread (R), Flange to ISO 7005 (F)
Operating/Process Temperature Ranges
- Medium Temperature
- GRS: -20 to +70 deg C (GRS 15-50/GRSF 15-50); -20 to +50 deg C with oxygen
- GRSF: -20 to +70 deg C (GRSF 15-50); -20 to +50 deg C with oxygen
Ignition, Flame & Supervision Specifications
- Flame Arresting
- GRS: No (must be used with additional safety device for flashback protection)
- GRSF: Yes (stops flashbacks and prevents gas return after flashback)
Dimensions & Size Specifications
- Nominal Sizes
- GRS: DN 15, 20, 25, 40, 50, 80
- GRSF: DN 15, 20, 25, 40, 50
Standards & Certifications
- Approvals
- DIN-DVGW tested and registered; EU Pressure Equipment Directive compliant, Internal Thread to ISO 7-1, PN 16 flange to ISO 7005
Material Specifications
- Material
- Brass
Fuel, Gas & Media Specifications
- Gas Type
- GRS: Town/district gas, hydrogen, natural gas, propane, purified biogas, nitrogen, inert gases, compressed air, oxygen
- GRSF: Town/district gas, natural gas, propane, compressed air
Applications & Compatibility
- Purpose
- GRS: Prevents reverse gas flow, surges, and creeping
- GRSF: Prevents reverse gas flow and flashbacks of combustion gas-air mixtures
Overview
- Design
- Robust
- Product Type
- GRS: Non-return gas valve
- GRSF: Non-return gas valve with flame arrester
Pressure Specifications
- Opening Pressure Range
- Low
- Inlet Pressure Range
- GRS: Up to 25 bar (DN 15-25), up to 20 bar (DN 40-50), up to 10 bar (DN 80)
- GRSF: Up to 5 bar (DN 15-50)
Connections & Interfaces
- Pipe Connection Type
- Rp Internal Thread (R), Flange to ISO 7005 (F)
Operating/Process Temperature Ranges
- Medium Temperature
- GRS: -20 to +70 deg C (GRS 15-50/GRSF 15-50); -20 to +50 deg C with oxygen
- GRSF: -20 to +70 deg C (GRSF 15-50); -20 to +50 deg C with oxygen
Ignition, Flame & Supervision Specifications
- Flame Arresting
- GRS: No (must be used with additional safety device for flashback protection)
- GRSF: Yes (stops flashbacks and prevents gas return after flashback)
Dimensions & Size Specifications
- Nominal Sizes
- GRS: DN 15, 20, 25, 40, 50, 80
- GRSF: DN 15, 20, 25, 40, 50
Standards & Certifications
- Approvals
- DIN-DVGW tested and registered; EU Pressure Equipment Directive compliant, Internal Thread to ISO 7-1, PN 16 flange to ISO 7005
Material Specifications
- Material
- Brass
Fuel, Gas & Media Specifications
- Gas Type
- GRS: Town/district gas, hydrogen, natural gas, propane, purified biogas, nitrogen, inert gases, compressed air, oxygen
- GRSF: Town/district gas, natural gas, propane, compressed air
Applications & Compatibility
- Purpose
- GRS: Prevents reverse gas flow, surges, and creeping
- GRSF: Prevents reverse gas flow and flashbacks of combustion gas-air mixtures
- Design : Robust
- Opening Pressure Range : Low
- Pipe Connection Type : Rp Internal Thread (R), Flange to ISO 7005 (F)
- Inlet Pressure Range : GRS: Up to 25 bar (DN 15-25), up to 20 bar (DN 40-50), up to 10 bar (DN 80)|GRSF: Up to 5 bar (DN 15-50)
- Medium Temperature : GRS: -20 to +70 deg C (GRS 15-50/GRSF 15-50); -20 to +50 deg C with oxygen|GRSF: -20 to +70 deg C (GRSF 15-50); -20 to +50 deg C with oxygen
- Flame Arresting : GRS: No (must be used with additional safety device for flashback protection)|GRSF: Yes (stops flashbacks and prevents gas return after flashback)
- Nominal Sizes : GRS: DN 15, 20, 25, 40, 50, 80|GRSF: DN 15, 20, 25, 40, 50
- Product Type : GRS: Non-return gas valve|GRSF: Non-return gas valve with flame arrester
- Approvals : DIN-DVGW tested and registered; EU Pressure Equipment Directive compliant, Internal Thread to ISO 7-1, PN 16 flange to ISO 7005
- Material : Brass
- Gas Type : GRS: Town/district gas, hydrogen, natural gas, propane, purified biogas, nitrogen, inert gases, compressed air, oxygen|GRSF: Town/district gas, natural gas, propane, compressed air
- Purpose : GRS: Prevents reverse gas flow, surges, and creeping|GRSF: Prevents reverse gas flow and flashbacks of combustion gas-air mixtures
