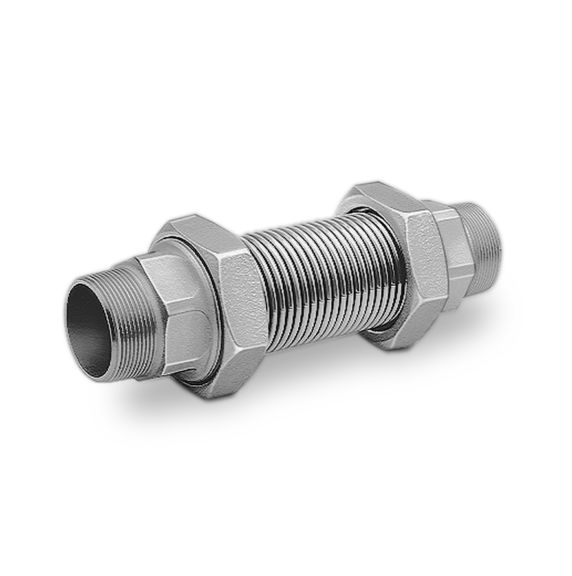

Stainless steel bellows units EKO
Stainless steel bellows units for stress-free pipe installation and to prevent transmission of vibration, for gas, air and water, with restricting orifice if desired.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Stainless steel bellows units for stress-free pipe installation and to prevent transmission of vibration, for gas, air and water, with restricting orifice if desired, DIN-DVGW tested and registered.
Features & Benefits:
Features & Benefits:
- DN: 15 to 200
- Connection: internal thread, external thread or flange
- pu: max. 4 or 10 bar
Specifications
Applications & Compatibility
- Purpose
- Stress-free, safe pipe installation; absorbs thermal and pressure expansions; prevents vibration transmission in gas, air, and water installations
Operating/Process Temperature Ranges
- Operating Temperature Range
- EKO..F: air: -20 to +500 deg C, gas: -20 to +150 deg C, water: 0 to +100 deg C
- EKO..R: air/gas: -20 to +250 deg C, water: 0 to +100 deg C (short-term peaks up to 300 deg C)
Pressure Specifications
- Inlet Pressure Range
- EKO..F: 10 bar (EKO 250F10P, EKO 350F10P: 1 bar)
- EKO..R: air/water: 10 bar, gas: 5 bar
Mechanical Design & Adjustment Characteristics
- Movement Absorption
- Axial and lateral movement absorption
Operating Limits & Resistance
- Bursting Resistance
- High, due to multiple-layer bellows
Connections & Interfaces
- Connection Type
- Internal Thread (RI), external thread (RA), flange (F, F10P, F100P)
Dimensions & Size Specifications
- Nominal Sizes
- DN 15 to 350 (varies by model)
Standards & Certifications
- Approvals
- DIN-DVGW tested and registered; EU certified
Applications & Compatibility
- Purpose
- Stress-free, safe pipe installation; absorbs thermal and pressure expansions; prevents vibration transmission in gas, air, and water installations
Operating/Process Temperature Ranges
- Operating Temperature Range
- EKO..F: air: -20 to +500 deg C, gas: -20 to +150 deg C, water: 0 to +100 deg C
- EKO..R: air/gas: -20 to +250 deg C, water: 0 to +100 deg C (short-term peaks up to 300 deg C)
Pressure Specifications
- Inlet Pressure Range
- EKO..F: 10 bar (EKO 250F10P, EKO 350F10P: 1 bar)
- EKO..R: air/water: 10 bar, gas: 5 bar
Mechanical Design & Adjustment Characteristics
- Movement Absorption
- Axial and lateral movement absorption
Operating Limits & Resistance
- Bursting Resistance
- High, due to multiple-layer bellows
Connections & Interfaces
- Connection Type
- Internal Thread (RI), external thread (RA), flange (F, F10P, F100P)
Dimensions & Size Specifications
- Nominal Sizes
- DN 15 to 350 (varies by model)
Standards & Certifications
- Approvals
- DIN-DVGW tested and registered; EU certified
- Purpose : Stress-free, safe pipe installation; absorbs thermal and pressure expansions; prevents vibration transmission in gas, air, and water installations
- Operating Temperature Range : EKO..F: air: -20 to +500 deg C, gas: -20 to +150 deg C, water: 0 to +100 deg C|EKO..R: air/gas: -20 to +250 deg C, water: 0 to +100 deg C (short-term peaks up to 300 deg C)
- Inlet Pressure Range : EKO..F: 10 bar (EKO 250F10P, EKO 350F10P: 1 bar)|EKO..R: air/water: 10 bar, gas: 5 bar
- Movement Absorption : Axial and lateral movement absorption
- Bursting Resistance : High, due to multiple-layer bellows
- Connection Type : Internal Thread (RI), external thread (RA), flange (F, F10P, F100P)
- Nominal Sizes : DN 15 to 350 (varies by model)
- Approvals : DIN-DVGW tested and registered; EU certified
