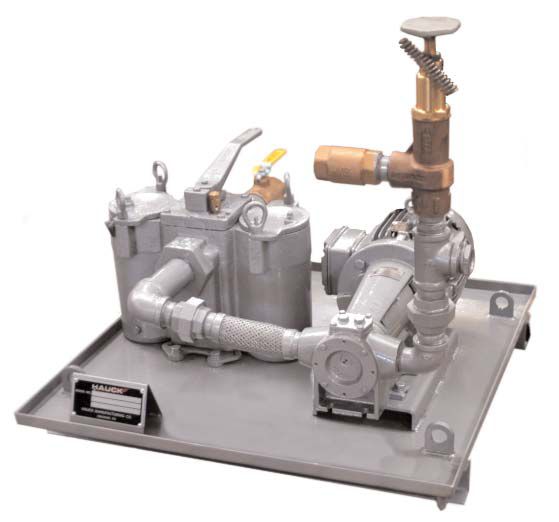

Hauck Oil Supply Pumping Unit SPU
Hauck SPU Supply Pumping Units provide efficient, dependable delivery of fuel oil to furnaces, kilns, ovens, dryers, boilers, etc.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Oil Supply Pumping Units are presized and completely assembled on a skid, the units are ready for connection to on-site fuel supply and electrical power. Available in multiple sizes for light oil and forheavy/recycled oil to meet the requirements for most applications. Consult Hauck for special design supply pumping units including different flow capacities or dual pumps for enhanced oil supply system reliability.
Features & Benefits:
Features & Benefits:
- Pre-engineered for optimum performance
- Skid mounted and prepiped
- Double basket inlet strainer
- Direct mounted
- TEFC C-flange motors
- Wear resistant pump internals for heavy/recycled oils
- Field adjustable oil discharge pressure
- Light and heavy/recycled oil versions available
- Easy field installation
- Long service life
- Change strainers for cleaning without shutting down oil supply flow
- Elimination of pump/motor alignment issues via direct connected pump
- Maintains constant oil supply pressure via field adjustable pressure control
Specifications
Applications & Compatibility
- Applications
- Industrial fuel oil supply systems
Processing & Performance Metrics
- Viscosity Limit
- Heavy/Recycled Oil Pumps - Up to 2000 SSU
- Light Oil Pumps - Up to 90 SSU
Overview
- Product Type
- Fuel oil pumping skid
Electrical Specifications
- Power Supply
- 60 Hz (standard)
Control, Logic & Functional Behavior
- Operating Principle
- Positive displacement gear pump
- Control Type
- Continuous circulation with pressure relief
Installation & Mounting Specifications
- Mounting Types
- Pre‑assembled, skid‑mounted unit
Motor Specifications
- Motor Type
- TEFC (Totally Enclosed Fan Cooled)
Fuel, Gas & Media Specifications
- Fuel Oil Type
- Heavy/Recycled Oil - No. 5, No. 6, recycled oil
- Light Oil - No. 2, No. 4 fuel oil
Standards & Certifications
- Approvals
- NFPA
Applications & Compatibility
- Applications
- Industrial fuel oil supply systems
Processing & Performance Metrics
- Viscosity Limit
- Heavy/Recycled Oil Pumps - Up to 2000 SSU
- Light Oil Pumps - Up to 90 SSU
Overview
- Product Type
- Fuel oil pumping skid
Electrical Specifications
- Power Supply
- 60 Hz (standard)
Control, Logic & Functional Behavior
- Operating Principle
- Positive displacement gear pump
- Control Type
- Continuous circulation with pressure relief
Installation & Mounting Specifications
- Mounting Types
- Pre‑assembled, skid‑mounted unit
Motor Specifications
- Motor Type
- TEFC (Totally Enclosed Fan Cooled)
Fuel, Gas & Media Specifications
- Fuel Oil Type
- Heavy/Recycled Oil - No. 5, No. 6, recycled oil
- Light Oil - No. 2, No. 4 fuel oil
Standards & Certifications
- Approvals
- NFPA
- Applications : Industrial fuel oil supply systems
- Viscosity Limit : Heavy/Recycled Oil Pumps - Up to 2000 SSU|Light Oil Pumps - Up to 90 SSU
- Product Type : Fuel oil pumping skid
- Power Supply : 60 Hz (standard)
- Operating Principle : Positive displacement gear pump
- Mounting Types : Pre‑assembled, skid‑mounted unit
- Motor Type : TEFC (Totally Enclosed Fan Cooled)
- Fuel Oil Type : Heavy/Recycled Oil - No. 5, No. 6, recycled oil|Light Oil - No. 2, No. 4 fuel oil
- Control Type : Continuous circulation with pressure relief
- Approvals : NFPA
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
HK17016
PAN,SPU PUMPING UNIT
HK17016
PAN,SPU PUMPING UNIT
HK17095
PUMP UNIT,SJ075 260/ES25 50 LP SPLY
HK17095
PUMP UNIT,SJ075 260/ES25 50 LP SPLY
HK17096
PUMP UNIT,SJ360 580/ESII75 125 LP SPLY
HK17096
PUMP UNIT,SJ360 580/ESII75 125 LP SPLY
HK20715
PUMP,POSITIVE DISPLACEMENT,LGL 2,LPG BLA
HK20715
PUMP,POSITIVE DISPLACEMENT,LGL 2,LPG BLA
HK301524
PUMP ASSY,HD51EFM,5HP,HVY/RECYCLED OIL R
HK301524
PUMP ASSY,HD51EFM,5HP,HVY/RECYCLED OIL R
HK301525
PUMP ASSY,GP26EM,1HP,HVY/RECYCLED OIL RO
HK301525
PUMP ASSY,GP26EM,1HP,HVY/RECYCLED OIL RO
HK301526
PUMP ASSY,GP33EM,2HP,HVY/RECYCLED OIL RO
HK301526
PUMP ASSY,GP33EM,2HP,HVY/RECYCLED OIL RO
HK301527
PUMP ASSY,GP41EM,3HP,HVY/RECYCLED OIL RO
HK301527
PUMP ASSY,GP41EM,3HP,HVY/RECYCLED OIL RO
HK301606
PUMP,GEAR,HD51EFM,2 FLGD,HVY/REC OIL ROT
HK301606
PUMP,GEAR,HD51EFM,2 FLGD,HVY/REC OIL ROT
HK301704
PUMP ASSY,GP26EM,3/4HP,LITE OIL ROTAN GP
HK301704
PUMP ASSY,GP26EM,3/4HP,LITE OIL ROTAN GP
