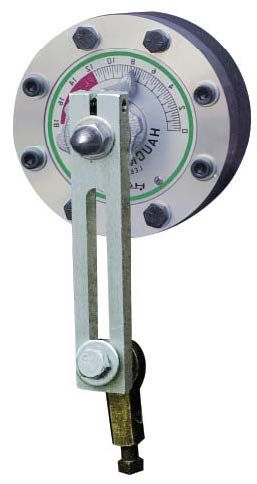

B, F, G, & K Micro Cam Oil Valves MCOV
Hauck Micro-Cam oil (MCOV) valves provide accurate, reproducible flow control of fuel oil to any type of industrial process, thus making the operation of oil-fi red heat processing equipment more dependable
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Hauck Micro-Cam oil (MCOV) valves provide accurate, reproducible flow control of fuel oil to any type of industrial process, thus making the operation of oil-fi red heat processing equipment more dependable.
Features & Benefits:
Features & Benefits:
- All-purpose liquid fuel valve
- Ideal for modulating liquid fuel fl ow manually, with a linked actuator, or a direct coupled actuator
- Ideal for limiting liquid fuel fl ow in main or bypass fuel supplies
- Valve bodies feature solid steel construction, precision machined for accuracy and dependability
- Heat tempered components ensure a long service life
- Zero maintenance design prevents fouling
- UL Listed B and F series valves for a viriety of applications
- Oil valves rated to 225 PSI, LP valves rated to 250 PSI
Specifications
Electrical Specifications
- Maintenance Interval
- None (zero maintenance design)
Metering & Process Capability
- Metering Capability
- Yes (B series suitable for metering in gallons/hr)
Control, Logic & Functional Behavior
- Control Principle
- Micro‑cam with knife edge rotating against V‑slot to meter flow
- Control Type
- Handwheel (manual), threaded wheel for actuator coupling (automatic)
Pressure Specifications
- Pressure Ratings
- Oil: 225 psi, LP: 250 psi
Material Specifications
- Body Material
- Cold rolled steel (hardened and ground)
Actuation, Valve & Motion Control Specifications
- Valve Series
- B, F, G, K
Performance, Flow & Capacity
- Flow Control
- Linear (B series), Non-linear (F, G, K series)
Applications & Compatibility
- Applications
- Accurate, repeatable control and limitation of liquid fuel flow to burners
- Oil‑fired industrial heating and heat processing equipment
Fuel, Gas & Media Specifications
- Fuel Type
- All grades of fuel oil (including heavy residuals), LP (liquid propane)
Standards & Certifications
- Approvals
- B and F series valves are UL listed
Electrical Specifications
- Maintenance Interval
- None (zero maintenance design)
Metering & Process Capability
- Metering Capability
- Yes (B series suitable for metering in gallons/hr)
Control, Logic & Functional Behavior
- Control Principle
- Micro‑cam with knife edge rotating against V‑slot to meter flow
- Control Type
- Handwheel (manual), threaded wheel for actuator coupling (automatic)
Pressure Specifications
- Pressure Ratings
- Oil: 225 psi, LP: 250 psi
Material Specifications
- Body Material
- Cold rolled steel (hardened and ground)
Actuation, Valve & Motion Control Specifications
- Valve Series
- B, F, G, K
Performance, Flow & Capacity
- Flow Control
- Linear (B series), Non-linear (F, G, K series)
Applications & Compatibility
- Applications
- Accurate, repeatable control and limitation of liquid fuel flow to burners
- Oil‑fired industrial heating and heat processing equipment
Fuel, Gas & Media Specifications
- Fuel Type
- All grades of fuel oil (including heavy residuals), LP (liquid propane)
Standards & Certifications
- Approvals
- B and F series valves are UL listed
- Maintenance Interval : None (zero maintenance design)
- Metering Capability : Yes (B series suitable for metering in gallons/hr)
- Control Principle : Micro‑cam with knife edge rotating against V‑slot to meter flow
- Pressure Ratings : Oil: 225 psi, LP: 250 psi
- Body Material : Cold rolled steel (hardened and ground)
- Valve Series : B, F, G, K
- Flow Control : Linear (B series), Non-linear (F, G, K series)
- Control Type : Handwheel (manual), threaded wheel for actuator coupling (automatic)
- Applications : Accurate, repeatable control and limitation of liquid fuel flow to burners|Oil‑fired industrial heating and heat processing equipment
- Fuel Type : All grades of fuel oil (including heavy residuals), LP (liquid propane)
- Approvals : B and F series valves are UL listed
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
HK12503
VLV,B 1/2 12W MICRO OIL UL
HK12503
VLV,B 1/2 12W MICRO OIL UL
HK12503R0241
VLV,B 1/2 12W W/LMT SW
HK12503R0241
VLV,B 1/2 12W W/LMT SW
HK12507
VLV,B 1/2 16W MICRO OIL UL
HK12507
VLV,B 1/2 16W MICRO OIL UL
HK12511
VLV,B 1/2 18W MICRO OIL UL
HK12511
VLV,B 1/2 18W MICRO OIL UL
HK12515
VLV,B 1/2 20W MICRO OIL UL
HK12515
VLV,B 1/2 20W MICRO OIL UL
HK12515R0241
VLV,B 1/2 20W MICRO OIL
HK12515R0241
VLV,B 1/2 20W MICRO OIL
HK12519
VLV,B 1/2 24W MICRO OIL UL
HK12519
VLV,B 1/2 24W MICRO OIL UL
HK12519R0159
VLV,B 1/2 24 W/B&L M740 940
HK12519R0159
VLV,B 1/2 24 W/B&L M740 940
HK12521
BDY ASSY,B 1/2 12 MICRO VLV
HK12521
BDY ASSY,B 1/2 12 MICRO VLV
HK12523
BDY ASSY,B/F/H 1/2 16 VLV
HK12523
BDY ASSY,B/F/H 1/2 16 VLV
