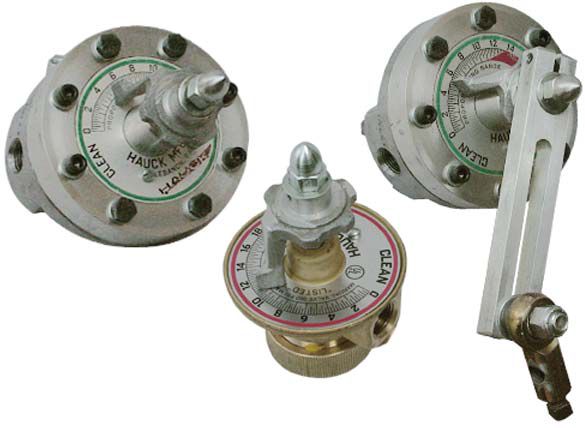

Self-Cleaning Micro Oil Valves MOV
Hauck’s Self-Cleaning Micro Oil Valves are engineered to produce accurate, reproducible linear flow control of oil to any type of industrial process.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The MOV valves are available in two model series. The AS Series is used for straight through piping applications while the S Series is employed where an angle valve is required. All S Series valves are UL listed. This valve is intended for flow control. It is not designed to replace a shutoff valve. For tight shutoff, a ball or solenoid valve should be provided in the fuel supply line.
Features & Benefits:
Features & Benefits:
- Self-cleaning for clog-free operation
- Factory flow tested for accurate, reproducible flow rates
- Linear flow characteristic
- Suitable for No. 1 through No. 6 fuel oil
- Available with manual or automatic flow control
- Case hardened metering components
- All S series valves are UL listed
- UL listed valves pressure rated to 300 psig (2070 kPa)
Specifications
Overview
- Series
- MOV S Series, MOV AS Series
- Product Type
- Liquid fuel flow control valve with self‑cleaning metering mechanism
Processing & Performance Metrics
- Flow Capacity Range
- 1 to 398 gph (3.9 to 1506 lph) depending on model and pressure
Actuation, Valve & Motion Control Specifications
- Valve Travel Range
- 0 to 180 deg (manual)
- 0 to 90 deg (automatic)
- Valve Type
- Self-cleaning (except S-3-1610)
Measurement, Media & Physical Properties
- Specific Gravity
- 0.849 at 60 deg F (15.5 deg C)
Pressure Specifications
- Pressure Ratings
- UL Listed valves rated to 300 psig (2070 kPa)
Control, Logic & Functional Behavior
- Control Type
- Automatic Control: Adjustable radius lever supplied for actuator‑driven control (typically 0-90 deg )
- Manual Control: Handwheel provides manual adjustment over full 180 deg dial range
Dimensions & Size Specifications
- Valve Sizes
- 3/8 in NPT
Fuel, Gas & Media Specifications
- Fuel Type
- No. 1 through No. 6 fuel oil
Standards & Certifications
- Approvals
- UL Listed (all S Series valves)
Overview
- Series
- MOV S Series, MOV AS Series
- Product Type
- Liquid fuel flow control valve with self‑cleaning metering mechanism
Processing & Performance Metrics
- Flow Capacity Range
- 1 to 398 gph (3.9 to 1506 lph) depending on model and pressure
Actuation, Valve & Motion Control Specifications
- Valve Travel Range
- 0 to 180 deg (manual)
- 0 to 90 deg (automatic)
- Valve Type
- Self-cleaning (except S-3-1610)
Measurement, Media & Physical Properties
- Specific Gravity
- 0.849 at 60 deg F (15.5 deg C)
Pressure Specifications
- Pressure Ratings
- UL Listed valves rated to 300 psig (2070 kPa)
Control, Logic & Functional Behavior
- Control Type
- Automatic Control: Adjustable radius lever supplied for actuator‑driven control (typically 0-90 deg )
- Manual Control: Handwheel provides manual adjustment over full 180 deg dial range
Dimensions & Size Specifications
- Valve Sizes
- 3/8 in NPT
Fuel, Gas & Media Specifications
- Fuel Type
- No. 1 through No. 6 fuel oil
Standards & Certifications
- Approvals
- UL Listed (all S Series valves)
- Series : MOV S Series, MOV AS Series
- Flow Capacity Range : 1 to 398 gph (3.9 to 1506 lph) depending on model and pressure
- Valve Travel Range : 0 to 180 deg (manual)|0 to 90 deg (automatic)
- Specific Gravity : 0.849 at 60 deg F (15.5 deg C)
- Pressure Ratings : UL Listed valves rated to 300 psig (2070 kPa)
- Product Type : Liquid fuel flow control valve with self‑cleaning metering mechanism
- Control Type : Automatic Control: Adjustable radius lever supplied for actuator‑driven control (typically 0-90 deg )|Manual Control: Handwheel provides manual adjustment over full 180 deg dial range
- Valve Sizes : 3/8 in NPT
- Valve Type : Self-cleaning (except S-3-1610)
- Fuel Type : No. 1 through No. 6 fuel oil
- Approvals : UL Listed (all S Series valves)
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
101028405
KIT,LIT,B,F,G,& K MICRO CAM OIL VLV
101028405
KIT,LIT,B,F,G,& K MICRO CAM OIL VLV
101028456
KIT,LIT,SELF CLNNG MICRO OIL VLV
101028456
KIT,LIT,SELF CLNNG MICRO OIL VLV
HK16938R0241
VLV,H 1/2 24 MICRO W/LMT SW
HK16938R0241
VLV,H 1/2 24 MICRO W/LMT SW
HK44526A
WHL,MICRO VLV PTR
HK44526A
WHL,MICRO VLV PTR
HK4531A
CLR,OIL VLV LOCK
HK4531A
CLR,OIL VLV LOCK
HK45836
VLV,S 3 2D UL MICRO OIL
HK45836
VLV,S 3 2D UL MICRO OIL
HK5741
PIN,CAM CNTRG K/J/G VLV
HK5741
PIN,CAM CNTRG K/J/G VLV
HK6958X002
SCR,1/4 20 UNC2A X 1/4,HXSCNPT SET STL H
HK6958X002
SCR,1/4 20 UNC2A X 1/4,HXSCNPT SET STL H
HK9596
STEM,MICRO OIL VLV
HK9596
STEM,MICRO OIL VLV
HKG-1-29-007
VLV ASSY,G 1 29 007 MOV W/DD B C MTR
HKG-1-29-007
VLV ASSY,G 1 29 007 MOV W/DD B C MTR
