Manual valves AKT
Manual shut-off valves for isolation of light and heavy duty fuel oil, water, gas, and air. Available with Rp or NPT threads, and flanges.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Manual shut-off valves, for gas, air and water, EU certified.
Features & Benefits:
Features & Benefits:
- DN: 6 to 250
- Connection: thread or flange
- pu: max. 4, 5 or 16 bar
- Brass, steel or ductile cast iron housing
Specifications
Applications & Compatibility
- Applications
- Gas control lines, central flame protection systems, isolation of fuel oil, gas, air, and water lines
- Media Compatibility
- All gases per DVGW Code of Practice G 260/I and air; selected versions suitable for biogas and other media
Material Specifications
- Valve Stem Material
- Viton (F160G), Perbunan (F160G1)
- Valve Ball Material
- Brass (R50B), Stainless steel 1.4408 (R160M/S), Cast steel (F160G/G1) - all chromium-plated
- Seal Material
- PTFE (Teflon)
- Material
- Brass, Steel, Stainless Steel, Cast Iron
Actuation, Valve & Motion Control Specifications
- Torque Design
- Low torque via Teflon seals
Temperature Control/Measurement
- Temperature Rating
- Gas: -20 to +60 deg C
- Other media: -20 to +180 deg C
Product Overview & Classification
- Product Variants

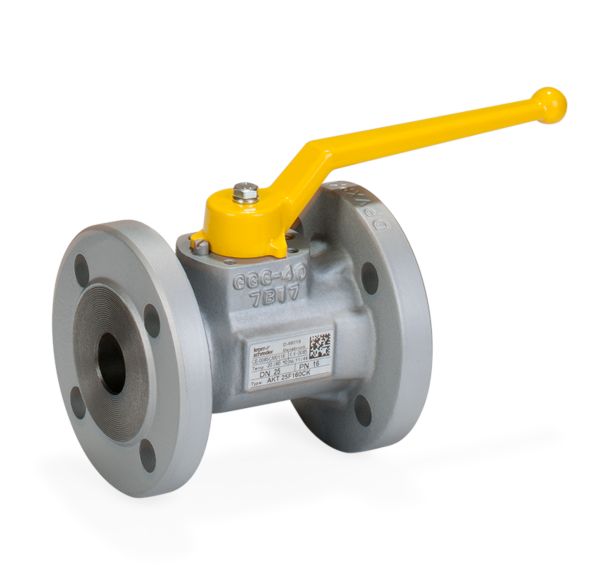

- AKT..F - Manual valve with flanged connection (ISO 7005/EN 1092‑2)
- AKT..R - Manual valve with Rp internal thread
- AKT..T - Manual valve with NPT internal thread (T‑product)
Installation & Mounting Specifications
- Installation Orientation
- Any installation position; any flow direction
Connections & Interfaces
- Connection Type
- Rp Internal Thread, NPT Thread, Flanged (ISO 7005, ANSI)
Standards & Certifications
- Approvals
- Eurasian Customs Union certified, DIN EN 331; DIN EN 13774; DVGW approvals (variant dependent), Gas Appliances Regulation (EU) 2016/426; Construction Products Regulation (EU) 305/2011; Pressure Equipment Directive 2014/68/EU (variant dependent)
Applications & Compatibility
- Applications
- Gas control lines, central flame protection systems, isolation of fuel oil, gas, air, and water lines
- Media Compatibility
- All gases per DVGW Code of Practice G 260/I and air; selected versions suitable for biogas and other media
Material Specifications
- Valve Stem Material
- Viton (F160G), Perbunan (F160G1)
- Valve Ball Material
- Brass (R50B), Stainless steel 1.4408 (R160M/S), Cast steel (F160G/G1) - all chromium-plated
- Seal Material
- PTFE (Teflon)
- Material
- Brass, Steel, Stainless Steel, Cast Iron
Actuation, Valve & Motion Control Specifications
- Torque Design
- Low torque via Teflon seals
Temperature Control/Measurement
- Temperature Rating
- Gas: -20 to +60 deg C
- Other media: -20 to +180 deg C
Product Overview & Classification
- Product Variants
- AKT..F - Manual valve with flanged connection (ISO 7005/EN 1092‑2)
- AKT..R - Manual valve with Rp internal thread
- AKT..T - Manual valve with NPT internal thread (T‑product)
Installation & Mounting Specifications
- Installation Orientation
- Any installation position; any flow direction
Connections & Interfaces
- Connection Type
- Rp Internal Thread, NPT Thread, Flanged (ISO 7005, ANSI)
Standards & Certifications
- Approvals
- Eurasian Customs Union certified, DIN EN 331; DIN EN 13774; DVGW approvals (variant dependent), Gas Appliances Regulation (EU) 2016/426; Construction Products Regulation (EU) 305/2011; Pressure Equipment Directive 2014/68/EU (variant dependent)
- Applications : Gas control lines, central flame protection systems, isolation of fuel oil, gas, air, and water lines
- Valve Stem Material : Viton (F160G), Perbunan (F160G1)
- Valve Ball Material : Brass (R50B), Stainless steel 1.4408 (R160M/S), Cast steel (F160G/G1) - all chromium-plated
- Torque Design : Low torque via Teflon seals
- Temperature Rating : Gas: -20 to +60 deg C|Other media: -20 to +180 deg C
- Seal Material : PTFE (Teflon)
- Product Variants : AKT..F - Manual valve with flanged connection (ISO 7005/EN 1092‑2)|AKT..R - Manual valve with Rp internal thread|AKT..T - Manual valve with NPT internal thread (T‑product)
- Media Compatibility : All gases per DVGW Code of Practice G 260/I and air; selected versions suitable for biogas and other media
- Material : Brass, Steel, Stainless Steel, Cast Iron
- Installation Orientation : Any installation position; any flow direction
- Connection Type : Rp Internal Thread, NPT Thread, Flanged (ISO 7005, ANSI)
- Approvals : Eurasian Customs Union certified, DIN EN 331; DIN EN 13774; DVGW approvals (variant dependent), Gas Appliances Regulation (EU) 2016/426; Construction Products Regulation (EU) 305/2011; Pressure Equipment Directive 2014/68/EU (variant dependent)
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
03152272
AKT 15R50B
03152272
AKT 15R50B
03152344
AKT 25F160GK
03152344
AKT 25F160GK
03152347
AKT 50F160G
03152347
AKT 50F160G
03152348
AKT 65F160G
03152348
AKT 65F160G
03152349
AKT 80F160G
03152349
AKT 80F160G
03152350
AKT 100F160G
03152350
AKT 100F160G
KS03151181
LOCK DVC, MAN VLV AKT6/10R50B,ASV6/10R50
KS03151181
LOCK DVC, MAN VLV AKT6/10R50B,ASV6/10R50
KS03151182
ASV 15/20R50B
KS03151182
ASV 15/20R50B
KS03151183
ASV 25/32R50B
KS03151183
ASV 25/32R50B
KS03151184
ASV 40/50R50B
KS03151184
ASV 40/50R50B
