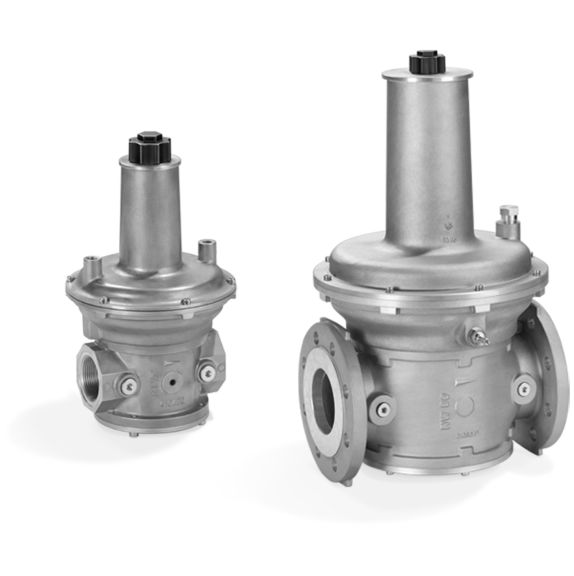

Circulation pressure control and relief regulators VAR
Kromschroder pressure regulators for combustion equipment and systems.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Relief pressure regulators for maintaining constant pressures in gas consumption equipment or for relieving brief pressure surges in control systems, in particular upstream of large-scale burners, circulation pressure control regulators for compensating for pressure fluctuations occurring on compressors or fans as the result of different flow rates.
Features & Benefits:
The pressure regulators comply with the requirements of EN 88, Class A, Group 2
Features & Benefits:
The pressure regulators comply with the requirements of EN 88, Class A, Group 2
- DN: 25 to 150
- Connection: thread or flange
- pu: max. 200, 500 or 1000 mbar
- Opening pressure range pd: 10 to 500 mbar
Specifications
Environmental Conditions
- Ambient Temperature Range
- -15 to +60 deg C
Mechanical & Hardware Characteristics
- Spring Table
- Red: 10 to 25 mbar; Yellow: 26 to 40 mbar; Green: 41 to 55 mbar; Blue: 56 to 70 mbar; Black: 71 to 85 mbar; White: 86 to 100 mbar; Black/Red: 101 to 150 mbar; Black/Yellow: 151 to 220 mbar; Black/Green: 221 to 340 mbar
Pressure Specifications
- Opening Pressure Range
- VAR -1: 10 to 150 mbar
- VAR -2: 151 to 340 mbar (adjustable via color-coded springs)
Dimensions & Size Specifications
- Nominal Sizes
- VAR 25, VAR 40, VAR 50, VAR 65, VAR 80, VAR 100
Material Specifications
- Material
- Aluminum
Connections & Interfaces
- Connection Type
- Rp Internal Thread to ISO 7-1, Flange to ISO 7005
Standards & Certifications
- Approvals
- Machinery Directive 2006/42/EC, EN 13611, EN 88, Eurasian Customs Union Compliance
Applications & Compatibility
- Applications
- Maintains constant pressure and eliminates brief pressure surges in gas appliances
- Suitable for town gas, natural gas, LPG (gaseous), biogas (max. 0.02% H2S); Must be dry and free of condensate
Environmental Conditions
- Ambient Temperature Range
- -15 to +60 deg C
Mechanical & Hardware Characteristics
- Spring Table
- Red: 10 to 25 mbar; Yellow: 26 to 40 mbar; Green: 41 to 55 mbar; Blue: 56 to 70 mbar; Black: 71 to 85 mbar; White: 86 to 100 mbar; Black/Red: 101 to 150 mbar; Black/Yellow: 151 to 220 mbar; Black/Green: 221 to 340 mbar
Pressure Specifications
- Opening Pressure Range
- VAR -1: 10 to 150 mbar
- VAR -2: 151 to 340 mbar (adjustable via color-coded springs)
Dimensions & Size Specifications
- Nominal Sizes
- VAR 25, VAR 40, VAR 50, VAR 65, VAR 80, VAR 100
Material Specifications
- Material
- Aluminum
Connections & Interfaces
- Connection Type
- Rp Internal Thread to ISO 7-1, Flange to ISO 7005
Standards & Certifications
- Approvals
- Machinery Directive 2006/42/EC, EN 13611, EN 88, Eurasian Customs Union Compliance
Applications & Compatibility
- Applications
- Maintains constant pressure and eliminates brief pressure surges in gas appliances
- Suitable for town gas, natural gas, LPG (gaseous), biogas (max. 0.02% H2S); Must be dry and free of condensate
- Ambient Temperature Range : -15 to +60 deg C
- Spring Table : Red: 10 to 25 mbar; Yellow: 26 to 40 mbar; Green: 41 to 55 mbar; Blue: 56 to 70 mbar; Black: 71 to 85 mbar; White: 86 to 100 mbar; Black/Red: 101 to 150 mbar; Black/Yellow: 151 to 220 mbar; Black/Green: 221 to 340 mbar
- Opening Pressure Range : VAR -1: 10 to 150 mbar|VAR -2: 151 to 340 mbar (adjustable via color-coded springs)
- Nominal Sizes : VAR 25, VAR 40, VAR 50, VAR 65, VAR 80, VAR 100
- Material : Aluminum
- Connection Type : Rp Internal Thread to ISO 7-1, Flange to ISO 7005
- Approvals : Machinery Directive 2006/42/EC, EN 13611, EN 88, Eurasian Customs Union Compliance
- Applications : Maintains constant pressure and eliminates brief pressure surges in gas appliances|Suitable for town gas, natural gas, LPG (gaseous), biogas (max. 0.02% H2S); Must be dry and free of condensate
