Pressure regulators for gas GDJ

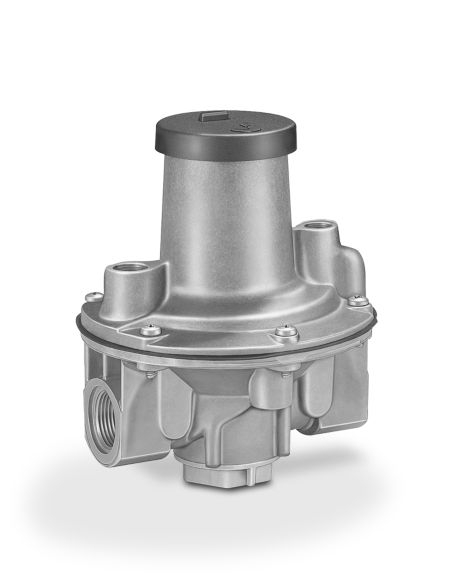

Spring-loaded pressure regulator with inlet pressure compensation diaphragm and zero shut-off to maintain the set outlet pressure pd constant despite changing gas flow rates, with safety diaphragm, GDJ for gas, GDJ..L for air.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Spring-loaded pressure regulator with inlet pressure compensation diaphragm and zero shut-off to maintain the set outlet pressure pd constant despite changing gas flow rates
Features & Benefits:
Features & Benefits:
- With safety diaphragm, therefore no purge line required
- GDJ for gas
- GDJ..L for air
- DN: 15 to 50
- Connection: thread
- pu: max. 400 mbar
- pd: 2 to 160 mbar
Specifications
Environmental Conditions
- Ambient Temperature Range
- -20 to +60 deg C (-4 to +140 deg F)
Performance, Flow & Capacity
- Turndown Ratio
- 10:1
Storage/Transport Temperatures
- Storage Temperature Range
- -20 to +40 deg C (-4 to +104 deg F)
Pressure Specifications
- Outlet Pressure Range
- GDJ 15: 2 to 55 mbar
- GDJ 20 to 40: 5 to 160 mbar
- GDJ 50: 5 to 100 mbar
- Inlet Pressure Range
- Up to 400 mbar
Dimensions & Size Specifications
- Nominal Sizes
- 15, 20, 25, 40, 50
Material Specifications
- Material
- Aluminum
Fuel, Gas & Media Specifications
- Gas Type
- Natural Gas, Town Gas, LPG (gaseous), Biogas (max. 0.02% H₂S) (GDJ..L also for air)
Connections & Interfaces
- Connection Type
- Rp Internal Thread or NPT
Standards & Certifications
- Approvals
- EU Certified (EU 2016/426 GAR, EN 88-1:2022 + A1:2023); Eurasian Customs Union compliance, EN 88-1:2022 + A1:2023; ANSI Z21.18a-2010; CSA6.3a-2010
Applications & Compatibility
- Applications
- Controls pressure for gas and air supply to burners and appliances in industry and heating sector
- Maintains constant outlet pressure in gas pipelines despite changing flow rates and inlet pressures
Environmental Conditions
- Ambient Temperature Range
- -20 to +60 deg C (-4 to +140 deg F)
Performance, Flow & Capacity
- Turndown Ratio
- 10:1
Storage/Transport Temperatures
- Storage Temperature Range
- -20 to +40 deg C (-4 to +104 deg F)
Pressure Specifications
- Outlet Pressure Range
- GDJ 15: 2 to 55 mbar
- GDJ 20 to 40: 5 to 160 mbar
- GDJ 50: 5 to 100 mbar
- Inlet Pressure Range
- Up to 400 mbar
Dimensions & Size Specifications
- Nominal Sizes
- 15, 20, 25, 40, 50
Material Specifications
- Material
- Aluminum
Fuel, Gas & Media Specifications
- Gas Type
- Natural Gas, Town Gas, LPG (gaseous), Biogas (max. 0.02% H₂S) (GDJ..L also for air)
Connections & Interfaces
- Connection Type
- Rp Internal Thread or NPT
Standards & Certifications
- Approvals
- EU Certified (EU 2016/426 GAR, EN 88-1:2022 + A1:2023); Eurasian Customs Union compliance, EN 88-1:2022 + A1:2023; ANSI Z21.18a-2010; CSA6.3a-2010
Applications & Compatibility
- Applications
- Controls pressure for gas and air supply to burners and appliances in industry and heating sector
- Maintains constant outlet pressure in gas pipelines despite changing flow rates and inlet pressures
- Ambient Temperature Range : -20 to +60 deg C (-4 to +140 deg F)
- Turndown Ratio : 10:1
- Storage Temperature Range : -20 to +40 deg C (-4 to +104 deg F)
- Outlet Pressure Range : GDJ 15: 2 to 55 mbar|GDJ 20 to 40: 5 to 160 mbar|GDJ 50: 5 to 100 mbar
- Nominal Sizes : 15, 20, 25, 40, 50
- Material : Aluminum
- Inlet Pressure Range : Up to 400 mbar
- Gas Type : Natural Gas, Town Gas, LPG (gaseous), Biogas (max. 0.02% H₂S) (GDJ..L also for air)
- Connection Type : Rp Internal Thread or NPT
- Approvals : EU Certified (EU 2016/426 GAR, EN 88-1:2022 + A1:2023); Eurasian Customs Union compliance, EN 88-1:2022 + A1:2023; ANSI Z21.18a-2010; CSA6.3a-2010
- Applications : Controls pressure for gas and air supply to burners and appliances in industry and heating sector|Maintains constant outlet pressure in gas pipelines despite changing flow rates and inlet pressures
