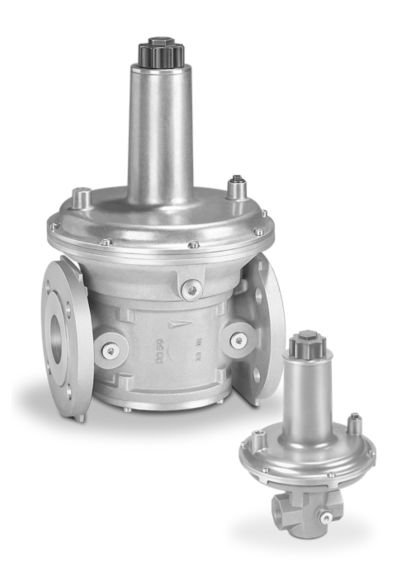

Pressure regulators for gas VGBF
Outlet pressure pd 10-30 mbar as standard (factory setting: 20 mbar), with safety diaphragm, therefore no purge line required, for gas, EU certified.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Outlet pressure pd 10-30 mbar as standard (factory setting: 20 mbar), with safety diaphragm, therefore no purge line required, for gas, EU certified.
Features & Benefits:
Features & Benefits:
- DN: 15 to 150
- Connection: thread or flange
- pu: max. 0.5 bar, 1 bar or 4 bar
- pd: 5 to 350 mbar
Specifications
Pressure Specifications
- Lock-up Pressure Zone Class
- SG 30 (5 to 50 mbar), SG 20 (>50 mbar)
- Inlet Pressure Range
- VGBF..05: 500 mbar (50 kPa)
- VGBF..10: 1 bar (100 kPa)
- VGBF..40: 4 bar (400 kPa)
Environmental Conditions
- Ambient Temperature Range
- -20 to +60 deg C (-4 to +140 deg F)
- VGBF..V: 0 to 60 deg C (32 to 140 deg F)
Connections & Interfaces
- Impulse Line Connection
- Rp 1/4 (DN 15, 25), Rp 3/8 (DN 40 to 150); NPT available
- Connection Type
- Rp Internal Thread to ISO 7-1, Flange to ISO 7005, NPT Thread (DN 15 to 50), ANSI Flange (DN 50 to 100)
Measurement, Accuracy & Sensing
- Accuracy Class (AC)
- EN 334, AC 10
Dimensions & Size Specifications
- Nominal Sizes
- DN 15 to 150
Applications & Compatibility
- Applications
- Maintains constant outlet pressure in gas pipelines despite changing flow rates and inlet pressures
- Suitable for natural gas, town gas, LPG (gaseous), hydrogen, biogas, and air (VGBF..V)
Standards & Certifications
- Approvals
- CE: 0063AQ09733, EU 2016/426 GAR, EN 88-1, EN 88-2:2008, EN 334:2009, PED, RoHS II/III, UKCA, Eurasian Customs Union, China RoHS, REACH Regulation
Material Specifications
- Material
- Aluminum
Pressure Specifications
- Lock-up Pressure Zone Class
- SG 30 (5 to 50 mbar), SG 20 (>50 mbar)
- Inlet Pressure Range
- VGBF..05: 500 mbar (50 kPa)
- VGBF..10: 1 bar (100 kPa)
- VGBF..40: 4 bar (400 kPa)
Environmental Conditions
- Ambient Temperature Range
- -20 to +60 deg C (-4 to +140 deg F)
- VGBF..V: 0 to 60 deg C (32 to 140 deg F)
Connections & Interfaces
- Impulse Line Connection
- Rp 1/4 (DN 15, 25), Rp 3/8 (DN 40 to 150); NPT available
- Connection Type
- Rp Internal Thread to ISO 7-1, Flange to ISO 7005, NPT Thread (DN 15 to 50), ANSI Flange (DN 50 to 100)
Measurement, Accuracy & Sensing
- Accuracy Class (AC)
- EN 334, AC 10
Dimensions & Size Specifications
- Nominal Sizes
- DN 15 to 150
Applications & Compatibility
- Applications
- Maintains constant outlet pressure in gas pipelines despite changing flow rates and inlet pressures
- Suitable for natural gas, town gas, LPG (gaseous), hydrogen, biogas, and air (VGBF..V)
Standards & Certifications
- Approvals
- CE: 0063AQ09733, EU 2016/426 GAR, EN 88-1, EN 88-2:2008, EN 334:2009, PED, RoHS II/III, UKCA, Eurasian Customs Union, China RoHS, REACH Regulation
Material Specifications
- Material
- Aluminum
- Lock-up Pressure Zone Class : SG 30 (5 to 50 mbar), SG 20 (>50 mbar)
- Ambient Temperature Range : -20 to +60 deg C (-4 to +140 deg F)|VGBF..V: 0 to 60 deg C (32 to 140 deg F)
- Impulse Line Connection : Rp 1/4 (DN 15, 25), Rp 3/8 (DN 40 to 150); NPT available
- Inlet Pressure Range : VGBF..05: 500 mbar (50 kPa)|VGBF..10: 1 bar (100 kPa)|VGBF..40: 4 bar (400 kPa)
- Accuracy Class (AC) : EN 334, AC 10
- Connection Type : Rp Internal Thread to ISO 7-1, Flange to ISO 7005, NPT Thread (DN 15 to 50), ANSI Flange (DN 50 to 100)
- Nominal Sizes : DN 15 to 150
- Applications : Maintains constant outlet pressure in gas pipelines despite changing flow rates and inlet pressures|Suitable for natural gas, town gas, LPG (gaseous), hydrogen, biogas, and air (VGBF..V)
- Approvals : CE: 0063AQ09733, EU 2016/426 GAR, EN 88-1, EN 88-2:2008, EN 334:2009, PED, RoHS II/III, UKCA, Eurasian Customs Union, China RoHS, REACH Regulation
- Material : Aluminum
