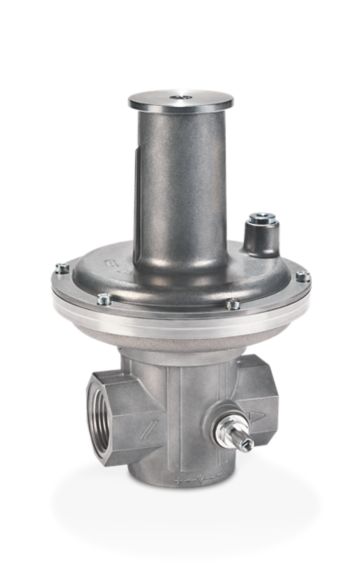

Relief valve VSBV
Relief valve for eliminating short-term pressure surges or preventing pressure increases due to gas creeps, for gas, DN 25, Rp internal thread, pu max. 4 bar, pressure test point at the inlet.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Relief valve for eliminating short-term pressure surges or preventing pressure increases due to gas creeps
Features & Benefits:
Features & Benefits:
- For gas
- DN 25
- Rp internal thread
- pu max. 4 bar
- Pressure test point at the inlet
- Standard adjusting range: 70 – 170 mbar (factory setting: 100 mbar)
- EU certified
- DN: 25
- Connection: thread
- pu: max. 4 bar
- pf: 20 to 500 mbar
Specifications
Measurement & Sensing Characteristics
- Accuracy Group
- AG 10
Storage/Transport Temperatures
- Storage Temperature Range
- -15 to +40 deg C (5 to 104 deg F)
Pressure Specifications
- Opening Pressure Range
- 20 to 500 mbar (Adjustable via Color-Coded Springs)
- Maximum Inlet Pressure
- Up to 4 bar millibar
Dimensions & Size Specifications
- Nominal Sizes
- DN 25
Fuel, Gas & Media Specifications
- Gas Type
- Natural Gas, Town Gas, Landfill Gas, LPG (gaseous), Hydrogen, Biogas (max. 0.02% H₂S) (Must be dry and free of condensate)
Dimensions & Weight
- Dimensions
- 132 mm (5.2 in) L
Connections & Interfaces
- Connection Type
- Rp Internal Thread (R), NPT Internal Thread (TN)
Material Specifications
- Body Material
- Aluminum
Standards & Certifications
- Approvals
- EU 2016/426 GAR; PED (2014/68/EU); RoHS II/III; DIN 33821; UKCA; Eurasian Customs Union; REACH; China RoHS
Applications & Compatibility
- Applications
- Relieves brief pressure surges in control systems, preventing unintentional activation of safety shut-off valve JSAV; reduces excessive pressure increases due to gas creeps from non-tight closing regulators; compulsory in gas pressure control systems with JSAV per EN 746-2
Environmental Conditions
- Ambient Temperature Range
- -15 to +60 deg C (5 to 140 deg F)
Measurement & Sensing Characteristics
- Accuracy Group
- AG 10
Storage/Transport Temperatures
- Storage Temperature Range
- -15 to +40 deg C (5 to 104 deg F)
Pressure Specifications
- Opening Pressure Range
- 20 to 500 mbar (Adjustable via Color-Coded Springs)
- Maximum Inlet Pressure
- Up to 4 bar millibar
Dimensions & Size Specifications
- Nominal Sizes
- DN 25
Fuel, Gas & Media Specifications
- Gas Type
- Natural Gas, Town Gas, Landfill Gas, LPG (gaseous), Hydrogen, Biogas (max. 0.02% H₂S) (Must be dry and free of condensate)
Dimensions & Weight
- Dimensions
- 132 mm (5.2 in) L
Connections & Interfaces
- Connection Type
- Rp Internal Thread (R), NPT Internal Thread (TN)
Material Specifications
- Body Material
- Aluminum
Standards & Certifications
- Approvals
- EU 2016/426 GAR; PED (2014/68/EU); RoHS II/III; DIN 33821; UKCA; Eurasian Customs Union; REACH; China RoHS
Applications & Compatibility
- Applications
- Relieves brief pressure surges in control systems, preventing unintentional activation of safety shut-off valve JSAV; reduces excessive pressure increases due to gas creeps from non-tight closing regulators; compulsory in gas pressure control systems with JSAV per EN 746-2
Environmental Conditions
- Ambient Temperature Range
- -15 to +60 deg C (5 to 140 deg F)
- Accuracy Group : AG 10
- Storage Temperature Range : -15 to +40 deg C (5 to 104 deg F)
- Opening Pressure Range : 20 to 500 mbar (Adjustable via Color-Coded Springs)
- Nominal Sizes : DN 25
- Maximum Inlet Pressure : Up to 4 bar millibar
- Gas Type : Natural Gas, Town Gas, Landfill Gas, LPG (gaseous), Hydrogen, Biogas (max. 0.02% H₂S) (Must be dry and free of condensate)
- Dimensions : 132 mm (5.2 in) L
- Connection Type : Rp Internal Thread (R), NPT Internal Thread (TN)
- Body Material : Aluminum
- Approvals : EU 2016/426 GAR; PED (2014/68/EU); RoHS II/III; DIN 33821; UKCA; Eurasian Customs Union; REACH; China RoHS
- Applications : Relieves brief pressure surges in control systems, preventing unintentional activation of safety shut-off valve JSAV; reduces excessive pressure increases due to gas creeps from non-tight closing regulators; compulsory in gas pressure control systems with JSAV per EN 746-2
- Ambient Temperature Range : -15 to +60 deg C (5 to 140 deg F)
