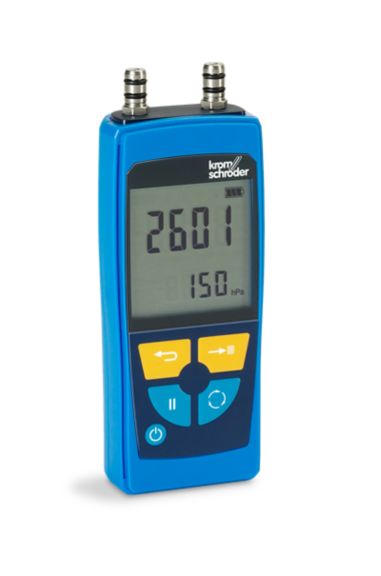

Elektronic pressure gauge DMG
For positive pressure, negative pressure and differential pressure measurement, for gas or air.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Features & Benefits:
- For positive pressure, negative pressure and differential pressure measurement
- Can be used with gas or air
- Measuring ranges: -130 to 130 mbar or -1000 to 1000 mbar
Specifications
Overview
- Models
- DMG S2601 and DMG S2610
- Product Type
- Handheld electronic pressure gauge
Storage/Transport Temperatures
- Storage Temperature Range
- -20 to +50 deg C (-4 to 122 deg F)
Pressure Specifications
- Maximum Positive Pressure
- 1.35 bar (19.6 psi)(DMG S2601), 3 bar (43.5 psi)(DMG S2610)
Environmental Conditions
- Ambient Temperature Range
- 0 to +40 deg C (32 to 104 deg F)
- Enclosure Rating
- IP40 (EN 60529)
Measurement, Accuracy & Sensing
- Measurement Media
- Non‑aggressive gaseous media
- Resolutions
- Resolution (DMG S2601) 0.01 (<19.99), 0.1 (>20), Resolution (DMG S2610) 0.1 (<199.9), 1 (>200)
Product Overview & Classification
- Primary Function
- Measurement of negative pressure, positive pressure, and differential pressure
Processing & Performance Metrics
- Measuring Range
- DMG S2601 - ±150 mbar (2.2 psi), Max: 180 mbar (2.6 psi)
- DMG S2610 - Rated: ±1000 mbar (14.5 psi), Max: 1500 mbar (21.8 psi)
Control, Logic & System Behavior
- Response Delay
- 90% of measured value within 10 seconds
Electrical Specifications
- Power Supply
- 2 x 1.5 V batteries (LR6/AA), USB power adapter
Control, Software & User Interface Specifications
- Display Type
- Transflective
Applications & Compatibility
- Applications
- Burner adjustment, chimney draught measurement, HVAC systems, filters, ducts, process and extraction systems
Dimensions & Weight
- Dimensions
- 66 x 37 x 143 mm (2.7 x 1.4 x 5.6 in) (Including protective sleeve)
Standards & Certifications
- Approvals
- TÜV Tested and Approved According to 1. BImSchV/EN 50379-2 for official measurements, EMC Standards - EN 55022, EN 61000-6-1, EN 61000-4-2, EN 61000-4-3, Certified by Gosstandart (GOST-R), Approved by Rostekhnadzor (RTN), 2004/108/EC
Material Specifications
- Material
- Plastic (Blue), Protective Sleeve: Plasticized PVC
Overview
- Models
- DMG S2601 and DMG S2610
- Product Type
- Handheld electronic pressure gauge
Storage/Transport Temperatures
- Storage Temperature Range
- -20 to +50 deg C (-4 to 122 deg F)
Pressure Specifications
- Maximum Positive Pressure
- 1.35 bar (19.6 psi)(DMG S2601), 3 bar (43.5 psi)(DMG S2610)
Environmental Conditions
- Ambient Temperature Range
- 0 to +40 deg C (32 to 104 deg F)
- Enclosure Rating
- IP40 (EN 60529)
Measurement, Accuracy & Sensing
- Measurement Media
- Non‑aggressive gaseous media
- Resolutions
- Resolution (DMG S2601) 0.01 (<19.99), 0.1 (>20), Resolution (DMG S2610) 0.1 (<199.9), 1 (>200)
Product Overview & Classification
- Primary Function
- Measurement of negative pressure, positive pressure, and differential pressure
Processing & Performance Metrics
- Measuring Range
- DMG S2601 - ±150 mbar (2.2 psi), Max: 180 mbar (2.6 psi)
- DMG S2610 - Rated: ±1000 mbar (14.5 psi), Max: 1500 mbar (21.8 psi)
Control, Logic & System Behavior
- Response Delay
- 90% of measured value within 10 seconds
Electrical Specifications
- Power Supply
- 2 x 1.5 V batteries (LR6/AA), USB power adapter
Control, Software & User Interface Specifications
- Display Type
- Transflective
Applications & Compatibility
- Applications
- Burner adjustment, chimney draught measurement, HVAC systems, filters, ducts, process and extraction systems
Dimensions & Weight
- Dimensions
- 66 x 37 x 143 mm (2.7 x 1.4 x 5.6 in) (Including protective sleeve)
Standards & Certifications
- Approvals
- TÜV Tested and Approved According to 1. BImSchV/EN 50379-2 for official measurements, EMC Standards - EN 55022, EN 61000-6-1, EN 61000-4-2, EN 61000-4-3, Certified by Gosstandart (GOST-R), Approved by Rostekhnadzor (RTN), 2004/108/EC
Material Specifications
- Material
- Plastic (Blue), Protective Sleeve: Plasticized PVC
- Models : DMG S2601 and DMG S2610
- Storage Temperature Range : -20 to +50 deg C (-4 to 122 deg F)
- Maximum Positive Pressure : 1.35 bar (19.6 psi)(DMG S2601), 3 bar (43.5 psi)(DMG S2610)
- Ambient Temperature Range : 0 to +40 deg C (32 to 104 deg F)
- Measurement Media : Non‑aggressive gaseous media
- Primary Function : Measurement of negative pressure, positive pressure, and differential pressure
- Enclosure Rating : IP40 (EN 60529)
- Measuring Range : DMG S2601 - ±150 mbar (2.2 psi), Max: 180 mbar (2.6 psi)|DMG S2610 - Rated: ±1000 mbar (14.5 psi), Max: 1500 mbar (21.8 psi)
- Response Delay : 90% of measured value within 10 seconds
- Product Type : Handheld electronic pressure gauge
- Power Supply : 2 x 1.5 V batteries (LR6/AA), USB power adapter
- Display Type : Transflective
- Applications : Burner adjustment, chimney draught measurement, HVAC systems, filters, ducts, process and extraction systems
- Resolutions : Resolution (DMG S2601) 0.01 (<19.99), 0.1 (>20), Resolution (DMG S2610) 0.1 (<199.9), 1 (>200)
- Dimensions : 66 x 37 x 143 mm (2.7 x 1.4 x 5.6 in) (Including protective sleeve)
- Approvals : TÜV Tested and Approved According to 1. BImSchV/EN 50379-2 for official measurements, EMC Standards - EN 55022, EN 61000-6-1, EN 61000-4-2, EN 61000-4-3, Certified by Gosstandart (GOST-R), Approved by Rostekhnadzor (RTN), 2004/108/EC
- Material : Plastic (Blue), Protective Sleeve: Plasticized PVC
