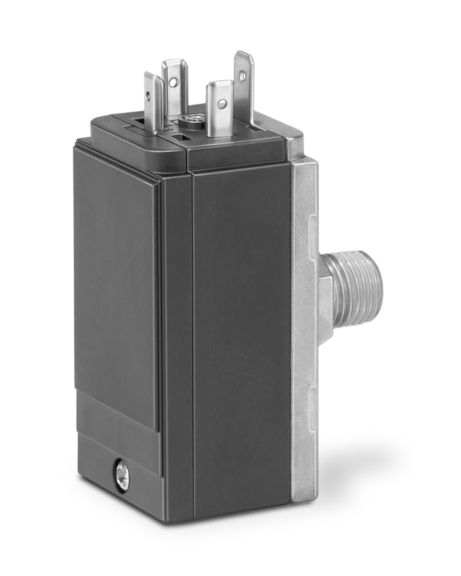

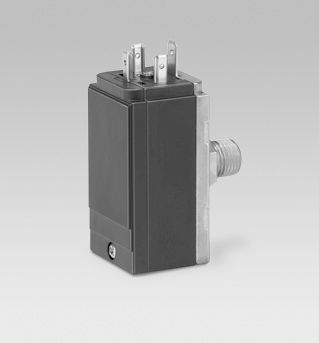

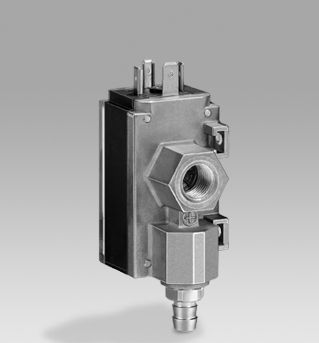

Kromschroeder DG..C pressure switches for gas
For monitoring gas and air pressures
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Diaphragm pressure switches with micro switch (silicone-free) for monitoring gas pressures on boilers
Features & Benefits:
Features & Benefits:
- Certificates: EU certified, UL listed, FM, AGA approved and EAC, RoHS compliant

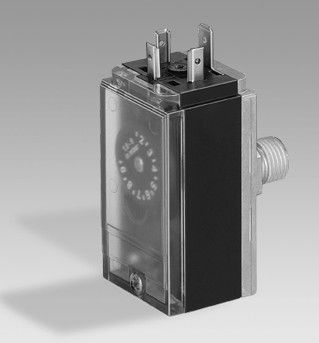

- Settings: switching point adjustment via setting dial or factory set
- Medium: Positive pressure: Gas, biogas, air, flue gasses
- Pressure Range: 3 to 500 mbar (1.2 to 144WC)
- Pneumatic Connections:
- Internal 1x or 2x Rp 1/4
- External Rp 1/8 or 1/4
- Contacts/Switching Capacity:
- CE version:
- Siver contacts, 24-250V AC, 0.05-5A
- Gold contacts, 5-250V AC, 0.01-5A
- UL versions:
- Gold contacts, max 30V AC, 0.05A
- Siver contacts, 30-240V AC, 5A
- CE version:
- Electrical connection: 4-Pin plug and socket
- Silicon free
- For available accessories see documentation
Specifications
Environmental Conditions
- Ambient Temperature Range
- -20 to +70 deg C (CE); -15 to +60 deg C (US versions)
- Enclosure Rating
- IP54 (standard); reduced if plug orientation is downward
Connections & Interfaces
- Electrical Connections
- Tab receptacle (4.8 x 0.8 mm), socket, 4-pin plug with/without socket
- Mechanical Connection
- Rp 1/4 in internal/external thread, Rp 1/8 in external thread, valVario attachment
Electrical Specifications
- Maintenance Interval
- Recommended once per year
Applications & Compatibility
- Media Compatibility
- Natural Gas, Town Gas, LPG (gaseous), Flue Gas, Biogas (≤ 0.1% H₂S), Air
- Hazardous Area Use
- Suitable for Zone 1 and 2 with isolating amplifier
- Applications
- Gas inlet pressure monitoring, low/high pressure protection, fan monitoring
Actuation, Control & Motion Characteristics
- Switching Function
- NO contact or change‑over contact (NO/NC/COM), version‑dependent
- Switching Range
- Approximately 3 to 500 mbar (model‑dependent)
Performance Specifications
- Switching Capacity
- Up to 250 VAC, 5 A (varies by model and contact type)
Material Specifications
- Diaphragm Material
- NBR (silicone-free)
- Material
- PBT plastic (glass fiber reinforced), aluminum lower section
Safety, Protection & Reliability
- Protection Class
- IP54 (with socket), IP00 (AMP plug), IP40 (plug downward)
- Safety Rating
- SIL 1-3, PL a-e, HFT 0 (single), HFT 1 (redundant), EN 13611, EN 1854, Gas Appliances Regulation (EU) 2016/426, UL/FM Approval - DG..CT and DG..CFT versions, AGA Approved, Eurasian Customs Union, cULus Listed, UL 353
- Reset Options
- Manual or automatic depending on model
Product Overview & Classification
- Primary Function
- Monitoring minimum and/or maximum gas pressure
Overview
- Product Type
- Compact diaphragm pressure switch for gas
Environmental Conditions
- Ambient Temperature Range
- -20 to +70 deg C (CE); -15 to +60 deg C (US versions)
- Enclosure Rating
- IP54 (standard); reduced if plug orientation is downward
Connections & Interfaces
- Electrical Connections
- Tab receptacle (4.8 x 0.8 mm), socket, 4-pin plug with/without socket
- Mechanical Connection
- Rp 1/4 in internal/external thread, Rp 1/8 in external thread, valVario attachment
Electrical Specifications
- Maintenance Interval
- Recommended once per year
Applications & Compatibility
- Media Compatibility
- Natural Gas, Town Gas, LPG (gaseous), Flue Gas, Biogas (≤ 0.1% H₂S), Air
- Hazardous Area Use
- Suitable for Zone 1 and 2 with isolating amplifier
- Applications
- Gas inlet pressure monitoring, low/high pressure protection, fan monitoring
Actuation, Control & Motion Characteristics
- Switching Function
- NO contact or change‑over contact (NO/NC/COM), version‑dependent
- Switching Range
- Approximately 3 to 500 mbar (model‑dependent)
Performance Specifications
- Switching Capacity
- Up to 250 VAC, 5 A (varies by model and contact type)
Material Specifications
- Diaphragm Material
- NBR (silicone-free)
- Material
- PBT plastic (glass fiber reinforced), aluminum lower section
Safety, Protection & Reliability
- Protection Class
- IP54 (with socket), IP00 (AMP plug), IP40 (plug downward)
- Safety Rating
- SIL 1-3, PL a-e, HFT 0 (single), HFT 1 (redundant), EN 13611, EN 1854, Gas Appliances Regulation (EU) 2016/426, UL/FM Approval - DG..CT and DG..CFT versions, AGA Approved, Eurasian Customs Union, cULus Listed, UL 353
- Reset Options
- Manual or automatic depending on model
Product Overview & Classification
- Primary Function
- Monitoring minimum and/or maximum gas pressure
Overview
- Product Type
- Compact diaphragm pressure switch for gas
- Ambient Temperature Range : -20 to +70 deg C (CE); -15 to +60 deg C (US versions)
- Electrical Connections : Tab receptacle (4.8 x 0.8 mm), socket, 4-pin plug with/without socket
- Mechanical Connection : Rp 1/4 in internal/external thread, Rp 1/8 in external thread, valVario attachment
- Maintenance Interval : Recommended once per year
- Media Compatibility : Natural Gas, Town Gas, LPG (gaseous), Flue Gas, Biogas (≤ 0.1% H₂S), Air
- Switching Function : NO contact or change‑over contact (NO/NC/COM), version‑dependent
- Switching Capacity : Up to 250 VAC, 5 A (varies by model and contact type)
- Hazardous Area Use : Suitable for Zone 1 and 2 with isolating amplifier
- Diaphragm Material : NBR (silicone-free)
- Protection Class : IP54 (with socket), IP00 (AMP plug), IP40 (plug downward)
- Primary Function : Monitoring minimum and/or maximum gas pressure
- Enclosure Rating : IP54 (standard); reduced if plug orientation is downward
- Switching Range : Approximately 3 to 500 mbar (model‑dependent)
- Safety Rating : SIL 1-3, PL a-e, HFT 0 (single), HFT 1 (redundant), EN 13611, EN 1854, Gas Appliances Regulation (EU) 2016/426, UL/FM Approval - DG..CT and DG..CFT versions, AGA Approved, Eurasian Customs Union, cULus Listed, UL 353
- Reset Options : Manual or automatic depending on model
- Product Type : Compact diaphragm pressure switch for gas
- Applications : Gas inlet pressure monitoring, low/high pressure protection, fan monitoring
- Material : PBT plastic (glass fiber reinforced), aluminum lower section
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
C60VR40017
MAX. PRESSURE SWITCH RANGE SETTING: 2-17
C60VR40017
MAX. PRESSURE SWITCH RANGE SETTING: 2-17
C60VR40040
MAX. PRESSURE SWITCH RANGE SETTING: 5-40
C60VR40040
MAX. PRESSURE SWITCH RANGE SETTING: 5-40
C60VR40040B
MAX. PRESSURE SWITCH RANGE SETTING: 5-40
C60VR40040B
MAX. PRESSURE SWITCH RANGE SETTING: 5-40
C60VR40040G
PRESSURE SWITCH 5-40MBAR GOLD PLATED
C60VR40040G
PRESSURE SWITCH 5-40MBAR GOLD PLATED
C60VR40040UCS15
MAX. PRESSURE SWITCH RANGE SETTING: 11
C60VR40040UCS15
MAX. PRESSURE SWITCH RANGE SETTING: 11
C60VR40110
GAS PRESSURE SWITCHES FOR FLANGED
C60VR40110
GAS PRESSURE SWITCHES FOR FLANGED
KS74214175
DG40VC1-5W/B
KS74214175
DG40VC1-5W/B
KS75454574
SW,PRESS, GAS,DG 45VC1 5W /B
KS75454574
SW,PRESS, GAS,DG 45VC1 5W /B
KS75454575
SW,PRESS, GAS,DG 110VC1 5W /B
KS75454575
SW,PRESS, GAS,DG 110VC1 5W /B
KS75454576
SW,PRESS, GAS,DG 300VC1 5W /B
KS75454576
SW,PRESS, GAS,DG 300VC1 5W /B
