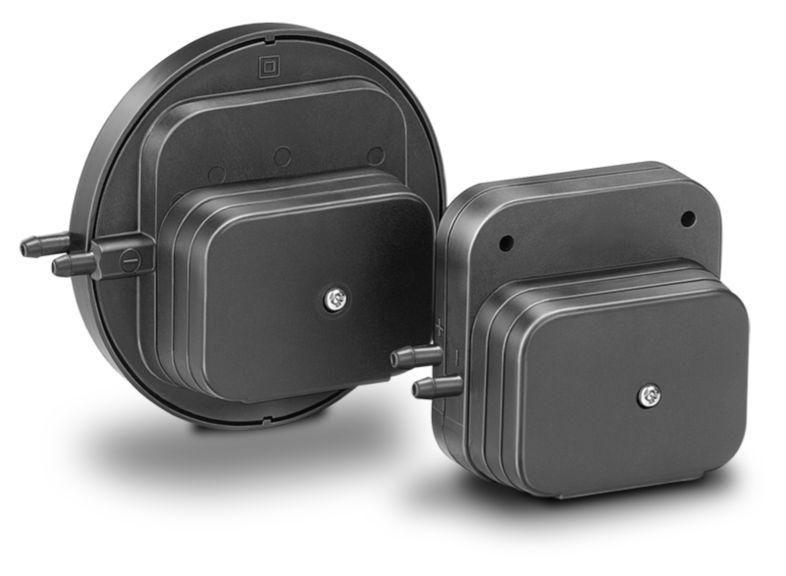

Kromschroeder DL..E pressure switches for air
For monitoring air and flue gas pressures, for positive pressure, negative pressure and differential pressure, FM and CE approved
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
For monitoring air and flue gas pressures, for positive pressure, negative pressure and differential pressure.
- Certificates: EU certified, UR listed, FM, AGA approved and EAC, RoHS compliant
- Setting: Switching point adjustment via adjustment screw
- Medium: Air, flue gas, non aggressive gas
- Range:
- Model DL1-50E: 0.2 to 50 mbar (0.08 to 20WC)
- Model DL2,4,14,35E: 30 to 3500Pa (0.12 to 14.1 WC)
- Pneumatic connections: Tube connections
- Contacts/Switching Capacity:
- CE version:
- Siver contacts, 24-250V AC, 0.05-5A
- Gold contacts, 5-250V AC, 0.01-5A
- UL versions:
- Gold contacts, max 30V AC, 0.05A
- Siver contacts, 30-240V AC, 5A
- CE version:
- Electrical connection: 6.3x0.8 AMP connectors (UR recognized)
- Silicon free
- For available accessories see documentation
Specifications
Metering & Process Capability
- Medium
- Air, flue gas, non‑aggressive gases
Pressure Specifications
- Maximum Inlet/Withstand Pressure
- Up to 5 kPa (model dependent)
- Pressure Type
- Positive, negative, differential
Actuation, Control & Motion Characteristics
- Switching Point Adjustment
- Adjusting screw
- Switching Differential
- Range dependent
- Switching Function
- Switch-on/switch-off/changeover
Environmental Conditions
- Ambient Temperature Range
- -20 to +85 deg C (variant dependent)
- Enclosure Rating
- IP10/IP21/IP42/IP44
Connections & Interfaces
- Electrical Connections
- AMP plug
- Pressure Connection
- Tube connection
Inputs, Outputs & Interface Signals
- Contact Configuration
- SPDT (COM/NO/NC)
Performance Specifications
- Switching Capacity
- Up to 5 A
Material Specifications
- Diaphragm Material
- LSR/NBR (model dependent)
- Material
- Glass‑Fiber Reinforced PBT
System Monitoring, Indication & Status
- Visual Indication
- Not standard (Optional)
Processing & Performance Metrics
- Adjusting Range
- 20 to 5000 Pa (model dependent)
Product Overview & Classification
- Product Series
- DL..E
Electrical Specifications
- Rated Voltage
- 12 to 250 VAC/DC
Overview
- Product Type
- Air Pressure Switch
Applications & Compatibility
- Applications
- Boilers, flue gas fans, HVAC
Standards & Certifications
- Approvals
- CE, UL (variant dependent)
Metering & Process Capability
- Medium
- Air, flue gas, non‑aggressive gases
Pressure Specifications
- Maximum Inlet/Withstand Pressure
- Up to 5 kPa (model dependent)
- Pressure Type
- Positive, negative, differential
Actuation, Control & Motion Characteristics
- Switching Point Adjustment
- Adjusting screw
- Switching Differential
- Range dependent
- Switching Function
- Switch-on/switch-off/changeover
Environmental Conditions
- Ambient Temperature Range
- -20 to +85 deg C (variant dependent)
- Enclosure Rating
- IP10/IP21/IP42/IP44
Connections & Interfaces
- Electrical Connections
- AMP plug
- Pressure Connection
- Tube connection
Inputs, Outputs & Interface Signals
- Contact Configuration
- SPDT (COM/NO/NC)
Performance Specifications
- Switching Capacity
- Up to 5 A
Material Specifications
- Diaphragm Material
- LSR/NBR (model dependent)
- Material
- Glass‑Fiber Reinforced PBT
System Monitoring, Indication & Status
- Visual Indication
- Not standard (Optional)
Processing & Performance Metrics
- Adjusting Range
- 20 to 5000 Pa (model dependent)
Product Overview & Classification
- Product Series
- DL..E
Electrical Specifications
- Rated Voltage
- 12 to 250 VAC/DC
Overview
- Product Type
- Air Pressure Switch
Applications & Compatibility
- Applications
- Boilers, flue gas fans, HVAC
Standards & Certifications
- Approvals
- CE, UL (variant dependent)
- Medium : Air, flue gas, non‑aggressive gases
- Maximum Inlet/Withstand Pressure : Up to 5 kPa (model dependent)
- Switching Point Adjustment : Adjusting screw
- Ambient Temperature Range : -20 to +85 deg C (variant dependent)
- Switching Differential : Range dependent
- Electrical Connections : AMP plug
- Contact Configuration : SPDT (COM/NO/NC)
- Pressure Connection : Tube connection
- Switching Function : Switch-on/switch-off/changeover
- Switching Capacity : Up to 5 A
- Diaphragm Material : LSR/NBR (model dependent)
- Visual Indication : Not standard (Optional)
- Enclosure Rating : IP10/IP21/IP42/IP44
- Adjusting Range : 20 to 5000 Pa (model dependent)
- Product Series : DL..E
- Rated Voltage : 12 to 250 VAC/DC
- Pressure Type : Positive, negative, differential
- Product Type : Air Pressure Switch
- Applications : Boilers, flue gas fans, HVAC
- Approvals : CE, UL (variant dependent)
