Pressure Switches & Gauges

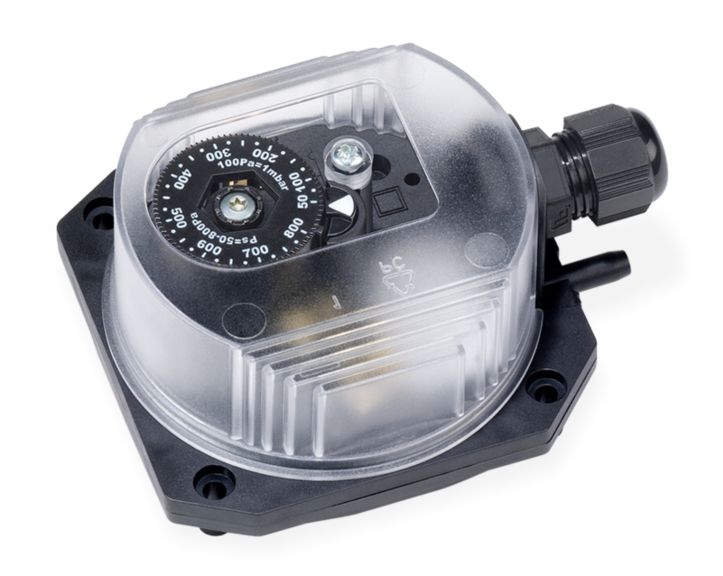

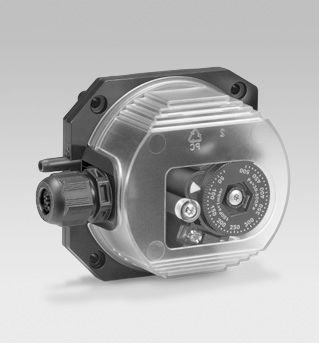

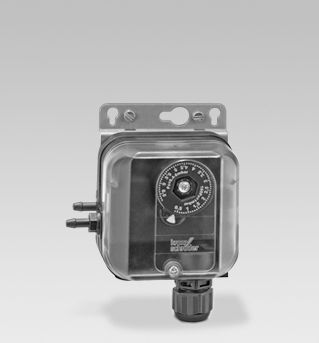

Kromschroeder DL..K pressure switches for air
For monitoring air and flue gas pressures, for positive pressure, negative pressure and differential pressure
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
For monitoring air and flue gas pressures, for positive pressure, negative pressure and differential pressure
Features & Benefits:
Features & Benefits:
- Certificates: EU certified, UL listed, FM, AGA approved and EAC, RoHS compliant
- Setting: Switching point adjustment via setting dial
- Medium: Air, flue gas, non aggressive gas
- Range: -1.5 to 150 mbar (0.12 to 20"WC)
- Pneumatic connections:
- Tube connections:
- CE versions: Rp 1/4, Rp 1/8
- UL versions: 1/4" NPT, 1/8" NPT
- Tube connections:
- Contacts:
- CE versions:
- Siver contacts, 24-250V AC, 0.05-5A
- Gold contacts, 5-250V AC, 0.01-5A
- UL versions:
- Siver contacts, 30-240V AC, 5A
- Gold contacts, max 30V AC, 0.05A
- CE versions:
- Electrical connection:
- Screw terminals, M16x1.5 cable gland
- Screw terminals, 1/2" NPT cable conduit
- 4-Pin plug and socket
- Silicon free
- For available accessories see documentation
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
KS84444030
SW,PRESS,AIR,DL 2ET 1
KS84444030
SW,PRESS,AIR,DL 2ET 1
KS84444031
SW,PRESS,AIR,DL 2ETG 1
KS84444031
SW,PRESS,AIR,DL 2ETG 1
KS84444040
SW,PRESS,AIR,DL 4ET 1
KS84444040
SW,PRESS,AIR,DL 4ET 1
KS84444041
SW,PRESS,AIR,DL 4ETG 1
KS84444041
SW,PRESS,AIR,DL 4ETG 1
KS84444050
SW,PRESS,AIR,DL 14ET 1
KS84444050
SW,PRESS,AIR,DL 14ET 1
KS84444051
SW,PRESS,AIR,DL 14ETG 1
KS84444051
SW,PRESS,AIR,DL 14ETG 1
KS84444060
SW,PRESS,AIR,DL 35ET 1
KS84444060
SW,PRESS,AIR,DL 35ET 1
KS84444061
SW,PRESS,AIR,DL 35ETG 1
KS84444061
SW,PRESS,AIR,DL 35ETG 1
KS84444570
SW,PRESS,AIR,DL 3,5KT 1
KS84444570
SW,PRESS,AIR,DL 3,5KT 1
KS84444571
SW,PRESS,AIR,DL 3,5KTG 1
KS84444571
SW,PRESS,AIR,DL 3,5KTG 1
