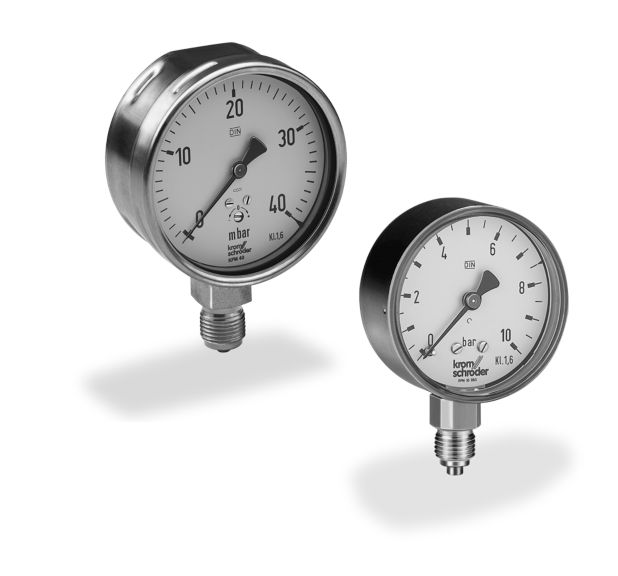

Pressure gauges KFM, RFM
Pressure gauges with capsule element or Bourdon tube for pressure display, positive-pressure-proof, with zero point correction, for gas and air.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Features & Benefits:
- Pressure gauges with capsule element or Bourdon tube for pressure display
- Positive-pressure-proof, with zero point correction
- Suitable for gas and air
- Measuring ranges:
- KFM: 0 to 400 mbar
- RFM: 0 to 16 bar
- Diameter: 63 or 100 mm
Specifications
Measurement, Accuracy & Sensing
- Accuracy Class (AC)
- KFM: Class 1.6, RFM: Class 1.6 (Ø63), Class 1.0 (Ø100)
- Measuring Principle
- KFM: Capsule element (EN 837‑3)
- RFM: Bourdon tube (EN 837‑1)
- Measurement Media
- Dry, clean, non‑aggressive gases and air
Processing & Performance Metrics
- Zero Point Correction
- Available on Ø100 models
- Measuring Range
- KFM: Up to 400 mbar
- RFM: Up to 16 bar
Applications & Compatibility
- Typical Applications
- KFM: Low gas pressure monitoring, differential pressure indication, leak tightness checks
- RFM: Gas pressure monitoring, system pressure indication, leak tightness checks
- Gas Compatibility
- Natural Gas, LPG (gaseous), Air
Temperature Control/Measurement
- Temperature Rating
- -20 to +60 deg C (operation), -20 to +40 deg C (storage)
Dimensions & Size Specifications
- Scale Diameters
- 63 and 100 mm
Safety, Protection & Reliability
- Protection Class
- KFM/RFM Ø63: IP32, KFM/RFM Ø100: IP54
Product Overview & Classification
- Primary Function
- KFM: Measurement of low gas and air pressures
- RFM: Measurement of higher gas and air pressures
Pressure Specifications
- Pressure Type
- Positive pressure or positive/negative pressure
Material Specifications
- Material
- Stainless Steel
Control, Software & User Interface Specifications
- Display Type
- Analog dial with pointer
Connections & Interfaces
- Connection Type
- G1/4 B, G 1/2 B or NPT threads
Standards & Certifications
- Approvals
- Metrological certificates (RU, BY), DVGW, GAR, Eurasian Customs Union
Measurement, Accuracy & Sensing
- Accuracy Class (AC)
- KFM: Class 1.6, RFM: Class 1.6 (Ø63), Class 1.0 (Ø100)
- Measuring Principle
- KFM: Capsule element (EN 837‑3)
- RFM: Bourdon tube (EN 837‑1)
- Measurement Media
- Dry, clean, non‑aggressive gases and air
Processing & Performance Metrics
- Zero Point Correction
- Available on Ø100 models
- Measuring Range
- KFM: Up to 400 mbar
- RFM: Up to 16 bar
Applications & Compatibility
- Typical Applications
- KFM: Low gas pressure monitoring, differential pressure indication, leak tightness checks
- RFM: Gas pressure monitoring, system pressure indication, leak tightness checks
- Gas Compatibility
- Natural Gas, LPG (gaseous), Air
Temperature Control/Measurement
- Temperature Rating
- -20 to +60 deg C (operation), -20 to +40 deg C (storage)
Dimensions & Size Specifications
- Scale Diameters
- 63 and 100 mm
Safety, Protection & Reliability
- Protection Class
- KFM/RFM Ø63: IP32, KFM/RFM Ø100: IP54
Product Overview & Classification
- Primary Function
- KFM: Measurement of low gas and air pressures
- RFM: Measurement of higher gas and air pressures
Pressure Specifications
- Pressure Type
- Positive pressure or positive/negative pressure
Material Specifications
- Material
- Stainless Steel
Control, Software & User Interface Specifications
- Display Type
- Analog dial with pointer
Connections & Interfaces
- Connection Type
- G1/4 B, G 1/2 B or NPT threads
Standards & Certifications
- Approvals
- Metrological certificates (RU, BY), DVGW, GAR, Eurasian Customs Union
- Accuracy Class (AC) : KFM: Class 1.6, RFM: Class 1.6 (Ø63), Class 1.0 (Ø100)
- Zero Point Correction : Available on Ø100 models
- Typical Applications : KFM: Low gas pressure monitoring, differential pressure indication, leak tightness checks|RFM: Gas pressure monitoring, system pressure indication, leak tightness checks
- Temperature Rating : -20 to +60 deg C (operation), -20 to +40 deg C (storage)
- Scale Diameters : 63 and 100 mm
- Protection Class : KFM/RFM Ø63: IP32, KFM/RFM Ø100: IP54
- Primary Function : KFM: Measurement of low gas and air pressures|RFM: Measurement of higher gas and air pressures
- Pressure Type : Positive pressure or positive/negative pressure
- Measuring Range : KFM: Up to 400 mbar|RFM: Up to 16 bar
- Measuring Principle : KFM: Capsule element (EN 837‑3)|RFM: Bourdon tube (EN 837‑1)
- Measurement Media : Dry, clean, non‑aggressive gases and air
- Material : Stainless Steel
- Gas Compatibility : Natural Gas, LPG (gaseous), Air
- Display Type : Analog dial with pointer
- Connection Type : G1/4 B, G 1/2 B or NPT threads
- Approvals : Metrological certificates (RU, BY), DVGW, GAR, Eurasian Customs Union
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
03200178
KFM 4 RB 63
03200178
KFM 4 RB 63
20202
0 to 15" wc Pressure Gauge
20202
0 to 15" wc Pressure Gauge
KS03110615
"Pressure gauge seal 1/2"
KS03110615
"Pressure gauge seal 1/2"
KS03110617
PRESS GA SEAL 1/4
KS03110617
PRESS GA SEAL 1/4
KS03110711
MANOMETERDICHTUNG 1/2" - PTFE
KS03110711
MANOMETERDICHTUNG 1/2" - PTFE
KS03150191
COCK,PRESS GA,MH 15,1/2 IN. BSP,W CLAMPI
KS03150191
COCK,PRESS GA,MH 15,1/2 IN. BSP,W CLAMPI
KS03150192
MH 15M
KS03150192
MH 15M
KS03152141
DH 8R50
KS03152141
DH 8R50
KS03152142
COCK,MAN,PUSH TO TEST,1/4 DH8TN40
KS03152142
COCK,MAN,PUSH TO TEST,1/4 DH8TN40
KS03200108
KFM 100RB100
KS03200108
KFM 100RB100
