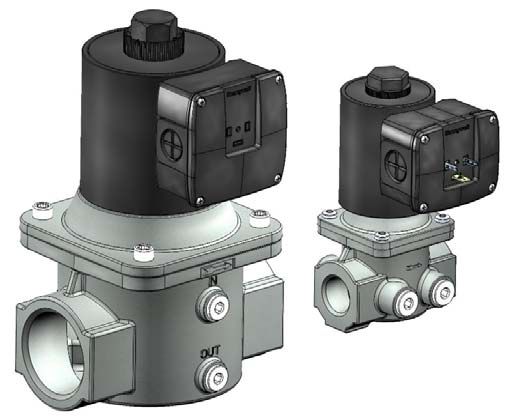

Solenoid valves for gas VE, V4295
Class A Gas Valves
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
These series class A gas valves are used for control and regulation of gaseous fluids in gas power burners, atmospheric gas boilers, melting furnaces, incinerators and other gas consuming appliances. They offer a series of functionalities:
Features & Benefits:
Features & Benefits:
- Gas valves, Normally Closed
- CPI switch optional
- Gas valves for use with Honeywell V4055, V4062 and V9055 fluid power actuators
- Relief valves Normally Open
- Adjustable opening characteristics optional
- Fluid power actuators are field replaceable
Specifications
Actuation, Valve & Motion Control Specifications
- Actuator Type
- Direct‑acting electric solenoid operation
- Valve Operation
- Normally Closed (N.C.) shut‑off valves and Normally Open (N.O.) vent/relief valves available
- Valve Body Pattern
- Straight‑through flow design
- Opening Time
- Less than 1 seconds (VE AX/BX versions; V4295 series)
- Closing Time
- Less than 1 seconds
Applications & Compatibility
- Typical Applications
- Atmospheric boilers, commercial water heaters, rooftop make‑up air units, gas power burners, furnaces, incinerators, melting furnaces
- Applications
- On/Off control of gas flow in gas‑fired appliances and industrial combustion systems
Overview
- Product Type
- Electrically operated solenoid gas valves for safety shut‑off, venting, regulation, and control of gaseous fuels
Product Overview & Classification
- Product Family
- VE Series Solenoid Gas Valves and V4295 Series Solenoid Gas Valves
Dimensions & Size Specifications
- Pipe Size
- V4295 Series: 3/8 in up to 3 in NPT (model dependent)
- VE Series: DN10 (3/8 in) up to DN100 (4 in)
Pressure Specifications
- Maximum Operating Pressure
- V4295 Series: 2 psi (all sizes), 5 psi for N.C. models up to 2 in kilopascal
- VE Series: up to 200 to 360 mbar depending on size and model kilopascal
Fuel, Gas & Media Specifications
- Gas Media
- Natural Gas, LPG, Manufactured Gas, Mixed Gas, Air
Processing & Performance Metrics
- Flow Capacity Range
- High flow capacity suitable for industrial burners; V4295 Series up to 6,100 CFH at 1 in. wc (size dependent)
Environmental Conditions
- Enclosure Rating
- VE Series: IP65 (with proper gland or DIN plug)
- Ambient Temperature Range
- V4295 Series: -40 to +145 deg F (-40 to +63 deg C)
- VE Series: -15 to +60 deg C
Electrical Specifications
- Electrical Supply
- V4295A: 110/120 VAC (50/60 Hz)
- VE Series: 24 VAC, 100-120 VAC, 200-240 VAC (50/60 Hz)
Connections & Interfaces
- Electrical Connections
- Terminal block with cable gland or DIN plug (VE Series); screw terminals (V4295 Series)
Material Specifications
- Body Material
- V4295 Series: Die‑Cast Aluminum
- VE Series: Metal Valve Body (per EN 161 compliant construction)
Standards & Certifications
- Approvals
- EN 161 (VE Series), ANSI Z21.21/CGA 6.5 (V4295 Series), CE (VE Series), UL/AGA/CGA/FM (V4295 Series, model dependent)
Actuation, Valve & Motion Control Specifications
- Actuator Type
- Direct‑acting electric solenoid operation
- Valve Operation
- Normally Closed (N.C.) shut‑off valves and Normally Open (N.O.) vent/relief valves available
- Valve Body Pattern
- Straight‑through flow design
- Opening Time
- Less than 1 seconds (VE AX/BX versions; V4295 series)
- Closing Time
- Less than 1 seconds
Applications & Compatibility
- Typical Applications
- Atmospheric boilers, commercial water heaters, rooftop make‑up air units, gas power burners, furnaces, incinerators, melting furnaces
- Applications
- On/Off control of gas flow in gas‑fired appliances and industrial combustion systems
Overview
- Product Type
- Electrically operated solenoid gas valves for safety shut‑off, venting, regulation, and control of gaseous fuels
Product Overview & Classification
- Product Family
- VE Series Solenoid Gas Valves and V4295 Series Solenoid Gas Valves
Dimensions & Size Specifications
- Pipe Size
- V4295 Series: 3/8 in up to 3 in NPT (model dependent)
- VE Series: DN10 (3/8 in) up to DN100 (4 in)
Pressure Specifications
- Maximum Operating Pressure
- V4295 Series: 2 psi (all sizes), 5 psi for N.C. models up to 2 in kilopascal
- VE Series: up to 200 to 360 mbar depending on size and model kilopascal
Fuel, Gas & Media Specifications
- Gas Media
- Natural Gas, LPG, Manufactured Gas, Mixed Gas, Air
Processing & Performance Metrics
- Flow Capacity Range
- High flow capacity suitable for industrial burners; V4295 Series up to 6,100 CFH at 1 in. wc (size dependent)
Environmental Conditions
- Enclosure Rating
- VE Series: IP65 (with proper gland or DIN plug)
- Ambient Temperature Range
- V4295 Series: -40 to +145 deg F (-40 to +63 deg C)
- VE Series: -15 to +60 deg C
Electrical Specifications
- Electrical Supply
- V4295A: 110/120 VAC (50/60 Hz)
- VE Series: 24 VAC, 100-120 VAC, 200-240 VAC (50/60 Hz)
Connections & Interfaces
- Electrical Connections
- Terminal block with cable gland or DIN plug (VE Series); screw terminals (V4295 Series)
Material Specifications
- Body Material
- V4295 Series: Die‑Cast Aluminum
- VE Series: Metal Valve Body (per EN 161 compliant construction)
Standards & Certifications
- Approvals
- EN 161 (VE Series), ANSI Z21.21/CGA 6.5 (V4295 Series), CE (VE Series), UL/AGA/CGA/FM (V4295 Series, model dependent)
- Actuator Type : Direct‑acting electric solenoid operation
- Valve Operation : Normally Closed (N.C.) shut‑off valves and Normally Open (N.O.) vent/relief valves available
- Valve Body Pattern : Straight‑through flow design
- Typical Applications : Atmospheric boilers, commercial water heaters, rooftop make‑up air units, gas power burners, furnaces, incinerators, melting furnaces
- Product Type : Electrically operated solenoid gas valves for safety shut‑off, venting, regulation, and control of gaseous fuels
- Product Family : VE Series Solenoid Gas Valves and V4295 Series Solenoid Gas Valves
- Pipe Size : V4295 Series: 3/8 in up to 3 in NPT (model dependent)|VE Series: DN10 (3/8 in) up to DN100 (4 in)
- Opening Time : Less than 1 seconds (VE AX/BX versions; V4295 series)
- Maximum Operating Pressure : V4295 Series: 2 psi (all sizes), 5 psi for N.C. models up to 2 in kilopascal|VE Series: up to 200 to 360 mbar depending on size and model kilopascal
- Gas Media : Natural Gas, LPG, Manufactured Gas, Mixed Gas, Air
- Flow Capacity Range : High flow capacity suitable for industrial burners; V4295 Series up to 6,100 CFH at 1 in. wc (size dependent)
- Enclosure Rating : VE Series: IP65 (with proper gland or DIN plug)
- Electrical Supply : V4295A: 110/120 VAC (50/60 Hz)|VE Series: 24 VAC, 100-120 VAC, 200-240 VAC (50/60 Hz)
- Electrical Connections : Terminal block with cable gland or DIN plug (VE Series); screw terminals (V4295 Series)
- Closing Time : Less than 1 seconds
- Body Material : V4295 Series: Die‑Cast Aluminum|VE Series: Metal Valve Body (per EN 161 compliant construction)
- Approvals : EN 161 (VE Series), ANSI Z21.21/CGA 6.5 (V4295 Series), CE (VE Series), UL/AGA/CGA/FM (V4295 Series, model dependent)
- Applications : On/Off control of gas flow in gas‑fired appliances and industrial combustion systems
- Ambient Temperature Range : V4295 Series: -40 to +145 deg F (-40 to +63 deg C)|VE Series: -15 to +60 deg C
