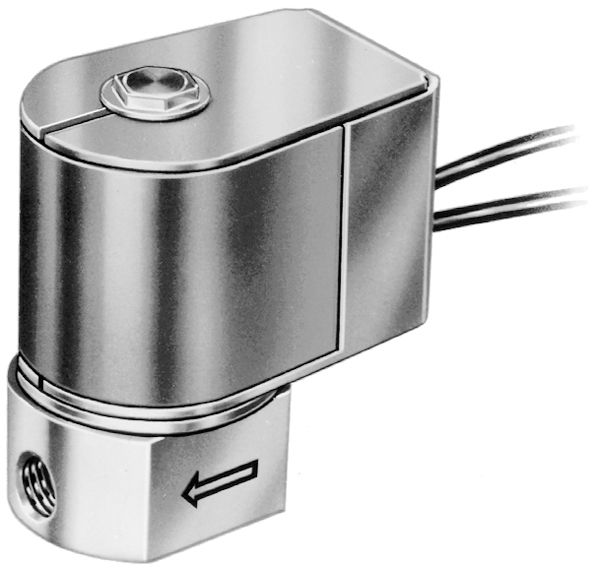

V4046/V8046 Pilot gas valves
Pilot gas valves for on/off control of natural, LP, and manufactured gases to pilot burners in industrial and commercial applications.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Provide on-off control of natural, LP and manufactured gases to pilot burners in industrial and commercial applications.
Features & Benefits:
Features & Benefits:
- Magnetically operated, normally closed
- Provide instantaneous action when energized
- On power failure, valve closes in one second maximum
- Use in any position, directly in pipe line or on support bracket
- Replace the solenoid coil without removing the valve body from the piping connections
- Straight-through valve pattern
- Available in line voltage or low voltage models
- Type of Fuel: Air; natural; manufactured; LP
- Body Pattern: Straight-through
- Valve Opening Time: 1 sec max
- Valve Closing Time: 1 sec max
- Mounting: Directly in pipe or on support bracket
- Materials: Body – Aluminum
- Power Consumption: 8 W
- Operating Temperature Range: -40°F to +125°F (-40°C to +52°C)
- Approvals, Underwriters Laboratories Inc.: Listed: File No. MH1639, V3, S3 - Guide No. YIOZ
- Approvals, CSA: Certificate No. 158158-2500006058, Guide No. C3371-03, 83
- Approvals, Factory Mutual: Approved: Report No. 17450
- Pressure Ratings (psi): 10 psi
- Pressure Ratings (kPa): 68.9 kPa
Specifications
Environmental Conditions
- Ambient Temperature Range
- -40 to +125 deg F (-40 to +54 deg C)
Actuation, Valve & Motion Control Specifications
- Valve Type
- Magnetic (solenoid) valve for gas
- Valve Pattern
- Straight-through
- Valve Operation
- Normally closed; opens immediately when energized
- Opening Time
- Immediate
- Closing Time
- ≤1 second on power failure
Material Specifications
- Valve Body Material
- Aluminum
Safety, Protection & Reliability
- Safety Action
- Closes on power failure
Pressure Specifications
- Pressure Ratings
- 10 psi (69 kPa) maximum inlet pressure
Electrical Specifications
- Powerhead Rotation
- 360 deg angular degrees
- Power Consumption
- V4046C: 13.8 VA (120 V), 13.7 VA (208 V) Watt
- V8046C: 14.1 VA (24 V) Watt
- Operating Voltage Range
- V4046C: 120 VAC or 208 VAC, 60 Hz
- V8046C: 24 VAC, 60 Hz
Dimensions & Size Specifications
- Pipe Size
- 1/8 in, 1/4 in, 3/8 in NPT
Installation & Mounting Specifications
- Mounting Position
- Any position; pipe or bracket mounted
Overview
- Models
- V4046C, V8046C
Fuel, Gas & Media Specifications
- Gas Type
- Natural Gas, LP (Propane, Butane), Manufactured, Mixed Gases
Processing & Performance Metrics
- Flow Capacity Range
- Up to 67 CFH (natural gas, 0.64 SG)
Connections & Interfaces
- Electrical Connections
- Two 36 in lead wires, 1/2 in conduit bushing
Mechanical & Hardware Characteristics
- Coil Replacement
- Field-replaceable without removing valve body
Standards & Certifications
- Approvals
- UL Listed, FM Approved, CSA/ANSI Certified, CSA/ANSI Z21.21/CSA 6.5 - Automatic gas valves
Environmental Conditions
- Ambient Temperature Range
- -40 to +125 deg F (-40 to +54 deg C)
Actuation, Valve & Motion Control Specifications
- Valve Type
- Magnetic (solenoid) valve for gas
- Valve Pattern
- Straight-through
- Valve Operation
- Normally closed; opens immediately when energized
- Opening Time
- Immediate
- Closing Time
- ≤1 second on power failure
Material Specifications
- Valve Body Material
- Aluminum
Safety, Protection & Reliability
- Safety Action
- Closes on power failure
Pressure Specifications
- Pressure Ratings
- 10 psi (69 kPa) maximum inlet pressure
Electrical Specifications
- Powerhead Rotation
- 360 deg angular degrees
- Power Consumption
- V4046C: 13.8 VA (120 V), 13.7 VA (208 V) Watt
- V8046C: 14.1 VA (24 V) Watt
- Operating Voltage Range
- V4046C: 120 VAC or 208 VAC, 60 Hz
- V8046C: 24 VAC, 60 Hz
Dimensions & Size Specifications
- Pipe Size
- 1/8 in, 1/4 in, 3/8 in NPT
Installation & Mounting Specifications
- Mounting Position
- Any position; pipe or bracket mounted
Overview
- Models
- V4046C, V8046C
Fuel, Gas & Media Specifications
- Gas Type
- Natural Gas, LP (Propane, Butane), Manufactured, Mixed Gases
Processing & Performance Metrics
- Flow Capacity Range
- Up to 67 CFH (natural gas, 0.64 SG)
Connections & Interfaces
- Electrical Connections
- Two 36 in lead wires, 1/2 in conduit bushing
Mechanical & Hardware Characteristics
- Coil Replacement
- Field-replaceable without removing valve body
Standards & Certifications
- Approvals
- UL Listed, FM Approved, CSA/ANSI Certified, CSA/ANSI Z21.21/CSA 6.5 - Automatic gas valves
- Ambient Temperature Range : -40 to +125 deg F (-40 to +54 deg C)
- Valve Type : Magnetic (solenoid) valve for gas
- Valve Pattern : Straight-through
- Valve Operation : Normally closed; opens immediately when energized
- Valve Body Material : Aluminum
- Safety Action : Closes on power failure
- Pressure Ratings : 10 psi (69 kPa) maximum inlet pressure
- Powerhead Rotation : 360 deg angular degrees
- Power Consumption : V4046C: 13.8 VA (120 V), 13.7 VA (208 V) Watt|V8046C: 14.1 VA (24 V) Watt
- Pipe Size : 1/8 in, 1/4 in, 3/8 in NPT
- Operating Voltage Range : V4046C: 120 VAC or 208 VAC, 60 Hz|V8046C: 24 VAC, 60 Hz
- Opening Time : Immediate
- Mounting Position : Any position; pipe or bracket mounted
- Models : V4046C, V8046C
- Gas Type : Natural Gas, LP (Propane, Butane), Manufactured, Mixed Gases
- Flow Capacity Range : Up to 67 CFH (natural gas, 0.64 SG)
- Electrical Connections : Two 36 in lead wires, 1/2 in conduit bushing
- Coil Replacement : Field-replaceable without removing valve body
- Closing Time : ≤1 second on power failure
- Approvals : UL Listed, FM Approved, CSA/ANSI Certified, CSA/ANSI Z21.21/CSA 6.5 - Automatic gas valves
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
V4046C1005/U
120/60. 1/8 IN
V4046C1005/U
120/60. 1/8 IN
V4046C1021/U
PILOT GAS VALVE
V4046C1021/U
PILOT GAS VALVE
V4046C1047/U
1/4 SOLENOID VALVE 120VAC
V4046C1047/U
1/4 SOLENOID VALVE 120VAC
V4046C1054/U
Gas valve
V4046C1054/U
Gas valve
V4046C1088/U
PILOT GAS VALVE
V4046C1088/U
PILOT GAS VALVE
V4046C1120/U
PILOT GAS VALVE
V4046C1120/U
PILOT GAS VALVE
V8046C1006/U
1/8 IN SMALL
V8046C1006/U
1/8 IN SMALL
V8046C1014/U
1/4 IN. SMALL
V8046C1014/U
1/4 IN. SMALL
V8046C1022/U
1/4 IN LG.
V8046C1022/U
1/4 IN LG.
V8046C1030/U
SOLENOID PILOT GAS VALVE 3/8"
V8046C1030/U
SOLENOID PILOT GAS VALVE 3/8"
