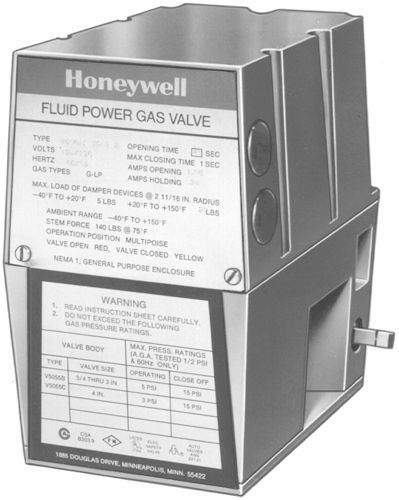

V4062 Fluid power actuators
High-Low-Off Actuators to pair with V5055 or V5097 Series gas valves
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Use with V5055 or V5097 Gas Valves to control gas supply for commercial and industrial burners. Valve opens to low fire position when power is applied; valve opens all the way on demand.
Features & Benefits:
Features & Benefits:
- Provide final safety shutoff service when used with V5055 or V5097 gas valve
- One-second maximum closing time
- Continuously displays the valve position with a red indicator when open and a yellow indicator when closed
- Mount in any position directly to valve bonnet with three setscrews
- Provide final safety shutoff service when used with V5055 or V5097 Gas Valves
- Electrical Ratings: 120 Vac
- Frequency: 60 Hz Maximum
- Safe Operating Pressure (psi): 5 psi
- Maximum Safe Operating Pressure (kPa): 34 kPa
- Temperature Range: -40°F to +150°F (-40°C to +66°C)
- Used With: V5034; V5055; V5097
- Approvals, CSA: When used with V5055 and V5097: Certified General listed File No. 158158, Class 3371 for USA and Canada
- Approvals, Underwriters Laboratories Inc.: When used with V5055A-E (3/4 to 4 in.) or V5097A-C (3/4 to 3 in.): Listed, File No. MH1639 Guide No. YIOZ
- Approvals, Swiss RE: When used with V5055 or V5097: Acceptable
Specifications
Environmental Conditions
- Ambient Temperature Range
- -10 to 70 deg C (50/60 Hz)
- -40 to 150 deg F (60 Hz)
- Enclosure Rating
- NEMA 1 (IP30)
Control, Safety & Timing Characteristics
- Proof-of-Closure Switch
- SPDT, non-adjustable
Overview
- Product Type
- Fluid Power Gas Valve Actuator
- Models
- V4062A (standard), V4062B (high pressure), V4062D (with proof-of-closure switch)
Electrical Specifications
- Power Consumption
- 120V/60Hz: 59.5 W opening/19 W holding Watt
- 220V/50Hz: 84 W opening/17 W holding Watt
Control, Logic & Functional Behavior
- Operation Type
- HI-LO-OFF three-position control Millimeter-PRD
Actuation, Valve & Motion Control Specifications
- Opening Time
- Fast-opening: 13 seconds at 60 Hz/16 seconds at 50 Hz
- Standard: 26 seconds at 60 Hz/32 seconds at 50 Hz
- Damper Shaft
- 3/8 in square
- 52 deg rotation
- Optional return spring
- Closing Time
- ≤1 second
Ignition, Flame & Supervision Specifications
- Low-Fire Adjustment Range
- 0.17 to 0.64 in valve stem travel
Processing & Performance Metrics
- Duty Cycle
- Continuous
Applications & Compatibility
- Compatible Valves
- V5055, V5097, VE5000 (Europe only)
Inputs, Outputs & Interface Signals
- Auxiliary Switch Rating
- SPDT, 1/2 hp (0.37 kW), adjustable
Standards & Certifications
- Approvals
- UL Listed File MH1639, Guide YIOZ, CSA Certified File 158158, Class 3371 (60 Hz models only), FM Approved
Environmental Conditions
- Ambient Temperature Range
- -10 to 70 deg C (50/60 Hz)
- -40 to 150 deg F (60 Hz)
- Enclosure Rating
- NEMA 1 (IP30)
Control, Safety & Timing Characteristics
- Proof-of-Closure Switch
- SPDT, non-adjustable
Overview
- Product Type
- Fluid Power Gas Valve Actuator
- Models
- V4062A (standard), V4062B (high pressure), V4062D (with proof-of-closure switch)
Electrical Specifications
- Power Consumption
- 120V/60Hz: 59.5 W opening/19 W holding Watt
- 220V/50Hz: 84 W opening/17 W holding Watt
Control, Logic & Functional Behavior
- Operation Type
- HI-LO-OFF three-position control Millimeter-PRD
Actuation, Valve & Motion Control Specifications
- Opening Time
- Fast-opening: 13 seconds at 60 Hz/16 seconds at 50 Hz
- Standard: 26 seconds at 60 Hz/32 seconds at 50 Hz
- Damper Shaft
- 3/8 in square
- 52 deg rotation
- Optional return spring
- Closing Time
- ≤1 second
Ignition, Flame & Supervision Specifications
- Low-Fire Adjustment Range
- 0.17 to 0.64 in valve stem travel
Processing & Performance Metrics
- Duty Cycle
- Continuous
Applications & Compatibility
- Compatible Valves
- V5055, V5097, VE5000 (Europe only)
Inputs, Outputs & Interface Signals
- Auxiliary Switch Rating
- SPDT, 1/2 hp (0.37 kW), adjustable
Standards & Certifications
- Approvals
- UL Listed File MH1639, Guide YIOZ, CSA Certified File 158158, Class 3371 (60 Hz models only), FM Approved
- Ambient Temperature Range : -10 to 70 deg C (50/60 Hz)|-40 to 150 deg F (60 Hz)
- Proof-of-Closure Switch : SPDT, non-adjustable
- Product Type : Fluid Power Gas Valve Actuator
- Power Consumption : 120V/60Hz: 59.5 W opening/19 W holding Watt|220V/50Hz: 84 W opening/17 W holding Watt
- Operation Type : HI-LO-OFF three-position control Millimeter-PRD
- Opening Time : Fast-opening: 13 seconds at 60 Hz/16 seconds at 50 Hz|Standard: 26 seconds at 60 Hz/32 seconds at 50 Hz
- Models : V4062A (standard), V4062B (high pressure), V4062D (with proof-of-closure switch)
- Low-Fire Adjustment Range : 0.17 to 0.64 in valve stem travel
- Enclosure Rating : NEMA 1 (IP30)
- Duty Cycle : Continuous
- Damper Shaft : 3/8 in square|52 deg rotation|Optional return spring
- Compatible Valves : V5055, V5097, VE5000 (Europe only)
- Closing Time : ≤1 second
- Auxiliary Switch Rating : SPDT, 1/2 hp (0.37 kW), adjustable
- Approvals : UL Listed File MH1639, Guide YIOZ, CSA Certified File 158158, Class 3371 (60 Hz models only), FM Approved
