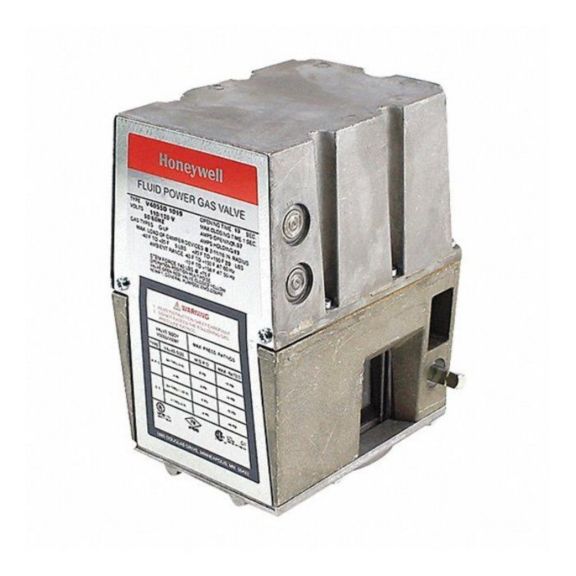

V5055 Industrial Gas Valves and V4055 Fluid Power Actuators for Safety Shut-off service. The V4055 actuator can also be paired with the V5097 series gas valves.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Safety shutoff valves used with V4055 and V4062 fluid power actuators to control gas flow to commercial and industrial burners.
Features & Benefits:
Features & Benefits:
- Use with natural or LP gases
- Mount directly in gas supply line
- Include 1/4 in. NPT upstream and downstream taps and plug
- 4 in. models have only flanged connections
- V5055 normally closed valves are rated for final shutoff service safety shutoff
- V5055A, C, E Valves are for On-Off service
- V5055B Valve has a characterized guide and in combination with the V4055 and V4062 Fluid Power Actuators, provides slow-opening, hi-lo-off, and modulating functions respectively
- V5055C, E, F Valves have a double seal and are used with V4055D, E Actuators to provide proof-of-closure switch and valve seal overtravel interlock
- V5055E, F Valves are for high pressure applications
- Operating Temperature Range: -40°F to +150°F (-40°C to +65°C)
- Approvals, Underwriters Laboratories Inc.: When used with V4055A, B, D, E, V4062: Listed, File No. MH1639 Guide No. YIOZ
- Approvals, CSA: When used with V4055, V4062, and V5097: Certified General listed File No. 158158, Class 3371 for USA and Canada Approvals, Swiss RE: When used with the V4055A, G: Approved, Report Nos. 20698, 20835, 21172, and 24061 Used With: V4055; V4062
Specifications
Environmental Conditions
- Ambient Temperature Range
- -40 to 125 deg F with V9055 actuator
- -40 to 150 deg F (-40 to 66 deg C)
Actuation, Valve & Motion Control Specifications
- Valve Type
- Industrial diaphragm gas valve operated by fluid power actuators
Dimensions & Size Specifications
- Valve Sizes
- 3/4 to 4 in (4 in. available on V5055A, B, C only)
Pressure Specifications
- Pressure Ratings
- High Pressure: up to 75 psi
- Standard: up to 15 psi
Control, Logic & Functional Behavior
- Operation Type
- On-Off, Slow Opening, Hi-Lo-Off, Modulating (depending on actuator) Millimeter-PRD
Installation & Mounting Specifications
- Mounting Position
- Directly in gas supply line
Overview
- Models
- V5055A, B, C, D, E, F
Alarms, Status & Diagnostics
- Indicators
- Yellow SHUT indicator on valve stem
Fuel, Gas & Media Specifications
- Gas Type
- Natural Gas, LPG
Connections & Interfaces
- Connection Type
- 4 in valves use flanged connections
- NPT or BSP (ISO R7/DIN 2999)
Material Specifications
- Body Material
- Die-Cast Aluminum
Standards & Certifications
- Approvals
- UL (MH1639, YIOZ) (V5055A–F with V4055, V4062, V9055 actuators), CSA (File 158158) (V5055A,B,D,E with V4055, V4062, V9055 actuators (NPT only)), FM Approved (Report ID9AZ.AF), Swiss Re (GeGap/IRI) Acceptable, DIN-DVGW (Germany) V5055A1145, A1152, A1178, B1218, British Gas & Dutch Gas Institute V5055A1145, A1152, A1178, B1218 with V4055/V4062
Applications & Compatibility
- Applications
- Large industrial gas burners requiring accurate control and tight shutoff
Environmental Conditions
- Ambient Temperature Range
- -40 to 125 deg F with V9055 actuator
- -40 to 150 deg F (-40 to 66 deg C)
Actuation, Valve & Motion Control Specifications
- Valve Type
- Industrial diaphragm gas valve operated by fluid power actuators
Dimensions & Size Specifications
- Valve Sizes
- 3/4 to 4 in (4 in. available on V5055A, B, C only)
Pressure Specifications
- Pressure Ratings
- High Pressure: up to 75 psi
- Standard: up to 15 psi
Control, Logic & Functional Behavior
- Operation Type
- On-Off, Slow Opening, Hi-Lo-Off, Modulating (depending on actuator) Millimeter-PRD
Installation & Mounting Specifications
- Mounting Position
- Directly in gas supply line
Overview
- Models
- V5055A, B, C, D, E, F
Alarms, Status & Diagnostics
- Indicators
- Yellow SHUT indicator on valve stem
Fuel, Gas & Media Specifications
- Gas Type
- Natural Gas, LPG
Connections & Interfaces
- Connection Type
- 4 in valves use flanged connections
- NPT or BSP (ISO R7/DIN 2999)
Material Specifications
- Body Material
- Die-Cast Aluminum
Standards & Certifications
- Approvals
- UL (MH1639, YIOZ) (V5055A–F with V4055, V4062, V9055 actuators), CSA (File 158158) (V5055A,B,D,E with V4055, V4062, V9055 actuators (NPT only)), FM Approved (Report ID9AZ.AF), Swiss Re (GeGap/IRI) Acceptable, DIN-DVGW (Germany) V5055A1145, A1152, A1178, B1218, British Gas & Dutch Gas Institute V5055A1145, A1152, A1178, B1218 with V4055/V4062
Applications & Compatibility
- Applications
- Large industrial gas burners requiring accurate control and tight shutoff
- Ambient Temperature Range : -40 to 125 deg F with V9055 actuator|-40 to 150 deg F (-40 to 66 deg C)
- Valve Type : Industrial diaphragm gas valve operated by fluid power actuators
- Valve Sizes : 3/4 to 4 in (4 in. available on V5055A, B, C only)
- Pressure Ratings : High Pressure: up to 75 psi|Standard: up to 15 psi
- Operation Type : On-Off, Slow Opening, Hi-Lo-Off, Modulating (depending on actuator) Millimeter-PRD
- Mounting Position : Directly in gas supply line
- Models : V5055A, B, C, D, E, F
- Indicators : Yellow SHUT indicator on valve stem
- Gas Type : Natural Gas, LPG
- Connection Type : 4 in valves use flanged connections|NPT or BSP (ISO R7/DIN 2999)
- Body Material : Die-Cast Aluminum
- Approvals : UL (MH1639, YIOZ) (V5055A–F with V4055, V4062, V9055 actuators), CSA (File 158158) (V5055A,B,D,E with V4055, V4062, V9055 actuators (NPT only)), FM Approved (Report ID9AZ.AF), Swiss Re (GeGap/IRI) Acceptable, DIN-DVGW (Germany) V5055A1145, A1152, A1178, B1218, British Gas & Dutch Gas Institute V5055A1145, A1152, A1178, B1218 with V4055/V4062
- Applications : Large industrial gas burners requiring accurate control and tight shutoff
