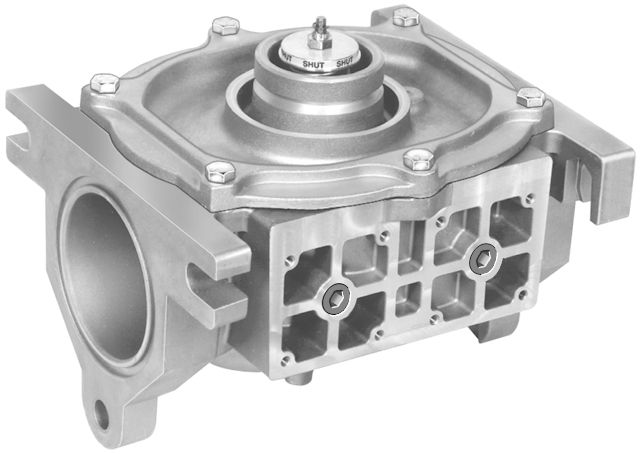

V5097 Integrated gas valve train
Safety shutoff valves used with V4055 and V4062 fluid power actuators to control gas flow to commercial and industrial burners.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Safety shutoff valves used with V4055 and V4062 fluid power actuators to control gas flow to commercial and industrial burners.
Features & Benefits:
Features & Benefits:
- Use with natural or LP gases
- Mount directly in gas supply line
- Two Valve body types. Small body type for 3/4 in., 1 in., 1-1/4 in., 1-1/2 in., 2 in. pipes. Large body types for 2 in., 2-1/2 in. and 3 in. pipes
- Seven pipe adapter sizes from 3/4 in. to 3 in. have NPT or BSP threaded connections
- Provides three 1/4 in. upstream and two 1/4 in. downstream tap and plug
- CE version provides an additional downstream tap and plug
- Yellow SHUT indicator attached to the valve stem provides an indication of the valve closed position
- V5097A, C Valves are for on-off service
- V5097B Valve has a characterized guide and in combination with the V4055, V4062 and V9055 Fluid Power Actuators, provides slowopening, HI-LO-OFF, and modulating functions, respectively
- V5097C Valves have a double seal and are used with V4055D, E
- Actuators to provide proof-of-closure switch and valve seal overtravel interlock
- Two valve body types (small and large) applicable to server pipe size
- Operating Temperature Range: -40°F to +150°F; When used with V9055 – -40°F to +125°F (-40°C to +66°C; When used with V9055 – -40°C to +52°C)
- Approvals, Underwriters Laboratories Inc.: When used with V4055A, B, D, E, V4062: Listed, File No. MH1639 Guide No. YIOZ
- Approvals, CSA: When used with V4055, V4062, and V5097: Certified, General listed File No. 158158, Class 3371 for USA and Canada
- Approvals, Swiss RE: When used with the V4055A, G: Approved, Report Nos. 20698, 20835, 21172, and 24061
- Approvals, CE: CE #E3070 (Gastec)
- Comments: Select Proper Pipe Adapter
- Includes: Three 1/4 in. -18 NPT upstream and two 1/4 in. -18 NPT downstream taps
- Used With: V4055; V4062
