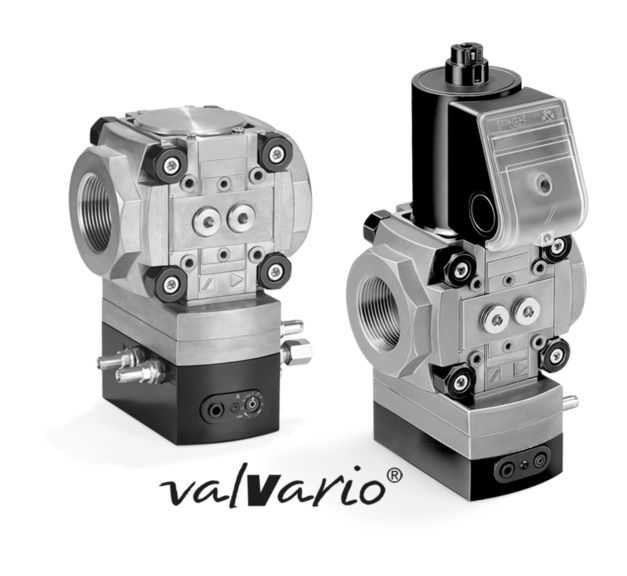

valvario valves

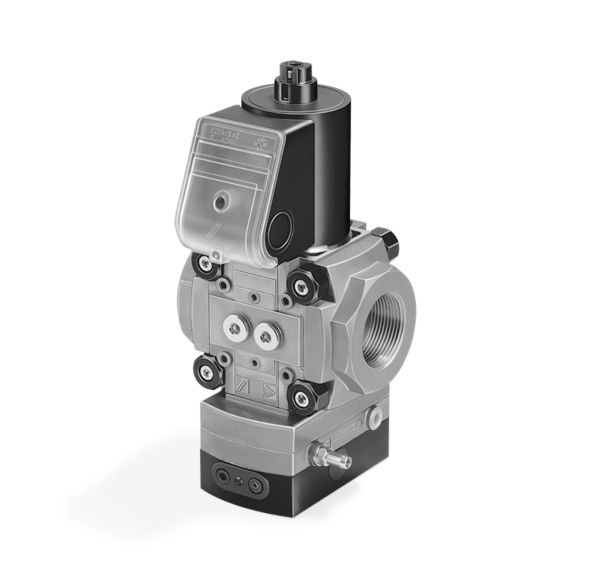

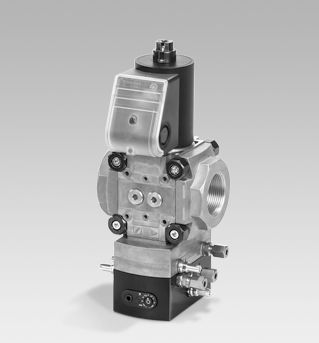

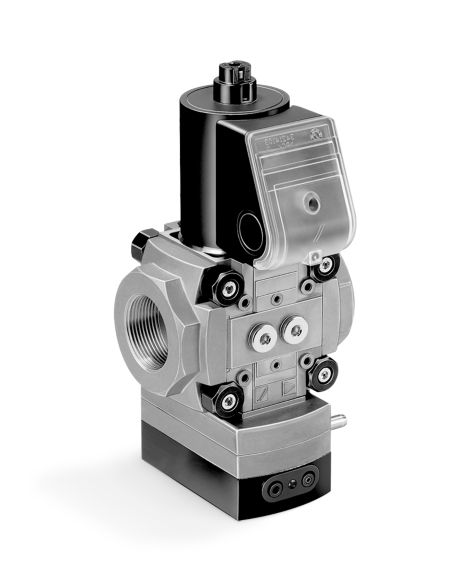

VAD-VAG-VAH-VAV pressure regulators with solenoid valve
For safeguarding and control of the gas pressure, Class A pressure regulator to EN 88, Class A solenoid valve to EN 161, for gas, air and biologically produced methane, pu max. 500 mbar (7 psig), with pilot lamp, IP 65, FM and CSA approved
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
For safeguarding and control of the gas pressure
Features & Benefits:
Features & Benefits:
- Class A pressure regulator to EN 88
- Class A solenoid valve to EN 161, for gas, air and biologically produce d methane
- pu max. 500 mbar (7 psig)
- With pilot lamp
- IP 65
- FM and SA approved
- Size 1
- EU certified
- No inlet flange
- Outlet: DN 15 (1/2'') Rp internal thread
- Quick opening, quick closing
- Mains voltage: 24 V DC Electrical connection: M20 cable gland
- Attached to the right side of the connection box: M20 cable gland
- Outlet pressure range: 35-100 mbar
- Valve seat: reduced Accessories, right: pressure switch, 30-110 mbar
- Test point of right-hand pressure switch: outlet pressure Accessories, left: 2 screw plugs
- Technical Information for VAD, VAG, VAH, VAV, VRH, VCD, VCG, VCV, VCH
- Find products in ProFi for VAD
- Find products in ProFi for VAG
- Find products in ProFi for VAH
- Find products in ProFi for VAV
- Find spare parts in PartDetective for VAD
- Find spare parts in PartDetective for VAG
- Find spare parts in PartDetective for VAH
- Find spare parts in PartDetective for VAV
- Calculate nominal diameter DN for VAD
- Calculate nominal diameter DN for VAG, VRH, VAH
- Calculate nominal diameter DN for VAV
- Calculate nominal diameter DN for VAG..N
- Calculate nominal diameter DN for VCD
Specifications
Dimensions & Size Specifications
- Sizes
- Sizes 1-3 (DN 15-65)
Dimensions & Weight
- Maximum Installation Height
- 2000 m AMSL
Pressure Specifications
- Pressure Regulation Range
- VAD - 2.5-25, 20-50, 35-100 mbar
Environmental Conditions
- Ambient Temperature Range
- -20 to +60 deg C (-4 to +140 deg F)
- Enclosure Rating
- IP65
Actuation, Valve & Motion Control Specifications
- Valve Position Indicator
- Blue LED shows energized/open state
- Opening Time
- Quick Opening: ≤1 seconds
- Closing Time
- Quick Closing <1 seconds
Applications & Compatibility
- Gas/Medium Compatibility
- Natural Gas, LPG, Biogas (≤0.1% H2S), Hydrogen, Clean Dry Air
- Applications
- Servo-controlled pressure regulators for gas/air with integrated Class A safety shut-off valve
Standards & Certifications
- Safety Integrity Levels
- SIL 1/2/3 and PL a-e depending on architecture
- Approvals
- CE, UKCA, FM, UL, AGA, ANSI/CSA, REACH, RoHS
Connections & Interfaces
- Electrical Connections
- M20 X 1.5 Cable Gland or En 175301-803 Plug
Processing & Performance Metrics
- Flow Adjustment Range
- 20 to 100%
- Duty Cycle
- 100% continuous duty
Electrical Specifications
- Maintenance Interval
- Once per year; twice per year for biogas
- Switching Frequency
- VAx../L: 2/min
- VAx../N: 30/min
- VAx../R: 6/min
- Voltage Rating
- 230 VAC, 200 VAC, 120 VAC, 100 VAC, 24 VDC
Storage/Transport Temperatures
- Storage Temperature
- -20 to +40 deg C (-4 to +104 deg F)
Installation & Mounting Specifications
- Installation Effort
- No external impulse line needed; adjustable from two sides
Air & Combustion Air Specifications
- Air/Gas Ratio Range
- Turndown up to 10:1
- VAG - 1:1 constant ratio
Performance, Flow & Capacity
- Turndown Ratio
- Up to 10:1
Material Specifications
- Body Material
- Aluminium housing, Seals: NBR/EPDM depending on type
Overview
- Product Type
- Pressure regulators with solenoid valve: VAD, VAG, VAH, VAV
Dimensions & Size Specifications
- Sizes
- Sizes 1-3 (DN 15-65)
Dimensions & Weight
- Maximum Installation Height
- 2000 m AMSL
Pressure Specifications
- Pressure Regulation Range
- VAD - 2.5-25, 20-50, 35-100 mbar
Environmental Conditions
- Ambient Temperature Range
- -20 to +60 deg C (-4 to +140 deg F)
- Enclosure Rating
- IP65
Actuation, Valve & Motion Control Specifications
- Valve Position Indicator
- Blue LED shows energized/open state
- Opening Time
- Quick Opening: ≤1 seconds
- Closing Time
- Quick Closing <1 seconds
Applications & Compatibility
- Gas/Medium Compatibility
- Natural Gas, LPG, Biogas (≤0.1% H2S), Hydrogen, Clean Dry Air
- Applications
- Servo-controlled pressure regulators for gas/air with integrated Class A safety shut-off valve
Standards & Certifications
- Safety Integrity Levels
- SIL 1/2/3 and PL a-e depending on architecture
- Approvals
- CE, UKCA, FM, UL, AGA, ANSI/CSA, REACH, RoHS
Connections & Interfaces
- Electrical Connections
- M20 X 1.5 Cable Gland or En 175301-803 Plug
Processing & Performance Metrics
- Flow Adjustment Range
- 20 to 100%
- Duty Cycle
- 100% continuous duty
Electrical Specifications
- Maintenance Interval
- Once per year; twice per year for biogas
- Switching Frequency
- VAx../L: 2/min
- VAx../N: 30/min
- VAx../R: 6/min
- Voltage Rating
- 230 VAC, 200 VAC, 120 VAC, 100 VAC, 24 VDC
Storage/Transport Temperatures
- Storage Temperature
- -20 to +40 deg C (-4 to +104 deg F)
Installation & Mounting Specifications
- Installation Effort
- No external impulse line needed; adjustable from two sides
Air & Combustion Air Specifications
- Air/Gas Ratio Range
- Turndown up to 10:1
- VAG - 1:1 constant ratio
Performance, Flow & Capacity
- Turndown Ratio
- Up to 10:1
Material Specifications
- Body Material
- Aluminium housing, Seals: NBR/EPDM depending on type
Overview
- Product Type
- Pressure regulators with solenoid valve: VAD, VAG, VAH, VAV
- Sizes : Sizes 1-3 (DN 15-65)
- Maximum Installation Height : 2000 m AMSL
- Pressure Regulation Range : VAD - 2.5-25, 20-50, 35-100 mbar
- Ambient Temperature Range : -20 to +60 deg C (-4 to +140 deg F)
- Valve Position Indicator : Blue LED shows energized/open state
- Gas/Medium Compatibility : Natural Gas, LPG, Biogas (≤0.1% H2S), Hydrogen, Clean Dry Air
- Safety Integrity Levels : SIL 1/2/3 and PL a-e depending on architecture
- Electrical Connections : M20 X 1.5 Cable Gland or En 175301-803 Plug
- Flow Adjustment Range : 20 to 100%
- Maintenance Interval : Once per year; twice per year for biogas
- Switching Frequency : VAx../L: 2/min|VAx../N: 30/min|VAx../R: 6/min
- Storage Temperature : -20 to +40 deg C (-4 to +104 deg F)
- Installation Effort : No external impulse line needed; adjustable from two sides
- Air/Gas Ratio Range : Turndown up to 10:1|VAG - 1:1 constant ratio
- Enclosure Rating : IP65
- Voltage Rating : 230 VAC, 200 VAC, 120 VAC, 100 VAC, 24 VDC
- Turndown Ratio : Up to 10:1
- Body Material : Aluminium housing, Seals: NBR/EPDM depending on type
- Product Type : Pressure regulators with solenoid valve: VAD, VAG, VAH, VAV
- Opening Time : Quick Opening: ≤1 seconds
- Closing Time : Quick Closing <1 seconds
- Applications : Servo-controlled pressure regulators for gas/air with integrated Class A safety shut-off valve
- Duty Cycle : 100% continuous duty
- Approvals : CE, UKCA, FM, UL, AGA, ANSI/CSA, REACH, RoHS
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
101037094
VLV ASSY,REG,RTO,2 IN NPT,AIR/GAS,W/SOLN
101037094
VLV ASSY,REG,RTO,2 IN NPT,AIR/GAS,W/SOLN
KS88000140
Pressure Regulator, With Solenoid Valve,
KS88000140
Pressure Regulator, With Solenoid Valve,
KS88000266
VAD120R/NW 100A
KS88000266
VAD120R/NW 100A
KS88001710
VAD 115R/NW-50B
KS88001710
VAD 115R/NW-50B
KS88004626
VAG1-/25R/NKAE
KS88004626
VAG1-/25R/NKAE
KS88004627
VAG2-/40R/NKAE
KS88004627
VAG2-/40R/NKAE
KS88004631
VAG1T15N/NKBA
KS88004631
VAG1T15N/NKBA
KS88004632
VAD1T25N/NK-100A
KS88004632
VAD1T25N/NK-100A
KS88004633
VAD1-/20R/NW-100A
KS88004633
VAD1-/20R/NW-100A
KS88004652
VAD125R/NW-100A
KS88004652
VAD125R/NW-100A
