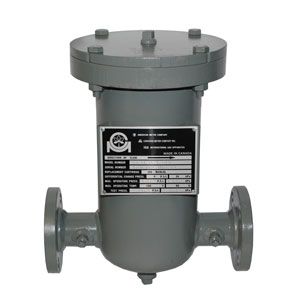

CFR Filters
Filters for gas lines in commercial and industrial applications.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Effectively remove dirt, pipe scale and other foreign matter from flowing gas lines in commercial and industrial applications. Filter elements are made of pleated, resin impregnated cellulose fiber, maximizing the surface filtration area. The standard element can remove particles down to 10 microns.
Specifications
Pressure Ratings
- Collapse Pressure
- ~15 PSID
- Maximum Working Pressure
- Up to 1440 psig (model dependent)
- High Pressure Option
- >1440 psig available as special order
- Differential Pressure Taps
- Upstream and downstream 1/4 in NPT taps
General Overview
- Typical Uses
- Commercial and industrial gas lines
- Purpose
- Remove contaminants from gas streams to protect equipment
- Product Type
- CFR Gas Filters (flanged industrial gas filters)
Product Identification
- Series
- CFR‑175, CFR‑150, CFR‑300, CFR‑600
Functional Features
- Recommended Replacement
- ~5 PSID differential
- Contaminants Removed
- Dirt, pipe scale, and foreign matter
Construction
- Micron Options
- 10 micron and 25 micron elements
- Housing Material
- Carbon Steel
- Filter Element Material
- Pleated, resin‑impregnated cellulose fibre
- Element Sizes
- Multiple diameters based on filter size
- Element Design
- High surface area for improved filtration efficiency
Operating Conditions
- Maximum Temperature Range
- ~130 to 150 deg F (model dependent)
Mechanical & Physical
- Drain & Vent Connections
- 3/4 in NPT
Connection Options
- Connection Size
- 2 to 12 in (larger available as special order)
Pressure Ratings
- Collapse Pressure
- ~15 PSID
- Maximum Working Pressure
- Up to 1440 psig (model dependent)
- High Pressure Option
- >1440 psig available as special order
- Differential Pressure Taps
- Upstream and downstream 1/4 in NPT taps
General Overview
- Typical Uses
- Commercial and industrial gas lines
- Purpose
- Remove contaminants from gas streams to protect equipment
- Product Type
- CFR Gas Filters (flanged industrial gas filters)
Product Identification
- Series
- CFR‑175, CFR‑150, CFR‑300, CFR‑600
Functional Features
- Recommended Replacement
- ~5 PSID differential
- Contaminants Removed
- Dirt, pipe scale, and foreign matter
Construction
- Micron Options
- 10 micron and 25 micron elements
- Housing Material
- Carbon Steel
- Filter Element Material
- Pleated, resin‑impregnated cellulose fibre
- Element Sizes
- Multiple diameters based on filter size
- Element Design
- High surface area for improved filtration efficiency
Operating Conditions
- Maximum Temperature Range
- ~130 to 150 deg F (model dependent)
Mechanical & Physical
- Drain & Vent Connections
- 3/4 in NPT
Connection Options
- Connection Size
- 2 to 12 in (larger available as special order)
- Collapse Pressure : ~15 PSID
- Typical Uses : Commercial and industrial gas lines
- Series : CFR‑175, CFR‑150, CFR‑300, CFR‑600
- Recommended Replacement : ~5 PSID differential
- Purpose : Remove contaminants from gas streams to protect equipment
- Product Type : CFR Gas Filters (flanged industrial gas filters)
- Micron Options : 10 micron and 25 micron elements
- Maximum Working Pressure : Up to 1440 psig (model dependent)
- Maximum Temperature Range : ~130 to 150 deg F (model dependent)
- Housing Material : Carbon Steel
- High Pressure Option : >1440 psig available as special order
- Filter Element Material : Pleated, resin‑impregnated cellulose fibre
- Element Sizes : Multiple diameters based on filter size
- Element Design : High surface area for improved filtration efficiency
- Drain & Vent Connections : 3/4 in NPT
- Differential Pressure Taps : Upstream and downstream 1/4 in NPT taps
- Contaminants Removed : Dirt, pipe scale, and foreign matter
- Connection Size : 2 to 12 in (larger available as special order)
Manuals and Guides
Name
Description
File Size
Date
Size
CFR Filters CMCO Manual (English)
application/pdf 2.15 MB
10/31/2023
2.15 MB
CFR Filters AMCO Manual (English)
application/pdf 1.22 MB
10/10/2023
1.22 MB
Name
Description
File Size
Date
Size
CFR Filters CMCO Manual (English)
application/pdf 2.15 MB
10/31/2023
2.15 MB
CFR Filters AMCO Manual (English)
application/pdf 1.22 MB
10/10/2023
1.22 MB
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
13147P001
WASHER,SWIVEL#1 SPRG/1"PITTS GAS DEP,CFR
13147P001
WASHER,SWIVEL#1 SPRG/1"PITTS GAS DEP,CFR
13147P005
WASHER, SWIVEL#5 SPRAGUE GAS DEP,CFR FIL
13147P005
WASHER, SWIVEL#5 SPRAGUE GAS DEP,CFR FIL
42710P032
O-RING, 6.12ODX5.88ID, BUNA-70
42710P032
O-RING, 6.12ODX5.88ID, BUNA-70
42710P166
O-RING,11.50ODX11.00ID,BUNA-70
42710P166
O-RING,11.50ODX11.00ID,BUNA-70
78155P013
ELEMENT, 25M FA2&3A
78155P013
ELEMENT, 25M FA2&3A
78155P014
ELEMENT, 25M FA3B,4&6
78155P014
ELEMENT, 25M FA3B,4&6
78155P015
ELEMENT, 10M FA2&3A
78155P015
ELEMENT, 10M FA2&3A
78155P016
ELEMENT, 10M FA3B,4&6
78155P016
ELEMENT, 10M FA3B,4&6
78155P017
ELEMENT, 10M KL2&3A/CFR2&3A
78155P017
ELEMENT, 10M KL2&3A/CFR2&3A
78155P018
ELEMENT, 25M KL2&3A/CFR2&3A
78155P018
ELEMENT, 25M KL2&3A/CFR2&3A
