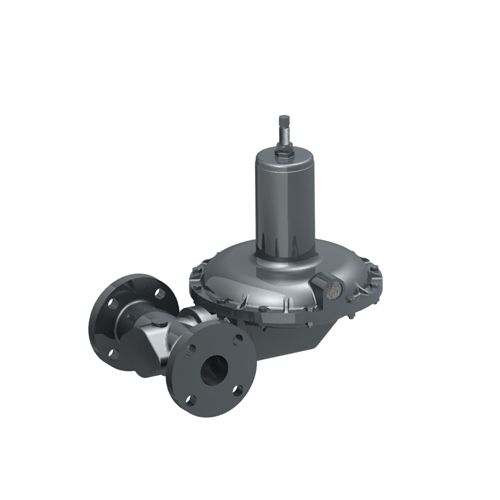

Commercial & Industrial Medium Pressure Regulators
1800/2000
A medium pressure regulator for commercial, industrial and gas utility distribution station applications. Inlet pressures up to 125 PSIG (8.6 bar). Sizes 1-1/2”, 2" screwed, 50mm flanged. Available with OPSS and or UPSS.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The 1800/2000 series of regulators offer large volumes and many options. Temperature range -20°F to +150°F (-30°C to 65°C). Outlet pressure range 1800 Series 3.5”WC to 5 PSIG (8.7mbar to 1.03bar), 2000 Series 0.5 PSIG to 15 PSIG (34mbar to 1.03 bar). All units are designed for natural, propane vapor, air, nitrogen, carbon dioxide, and other non-corrosive gases. The 1800 Series can be ordered as full relief, partial relief or no relief. 2000 Series Regulators are non-relieving. Both models are available with Over- pressure Shut off, Underpressure Shut off and monitor capabilities. They can be mounted in either a vertical or horizontal orientation, are suitable for use with natural gas, air, nitrogen, carbon dioxide, propane vapor, and other non-corrosive gases.
Data Sheet
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
03061T007
1-3/4" (STD) SOCKET - 3/4" DRIVE
03061T007
1-3/4" (STD) SOCKET - 3/4" DRIVE
03061T008
12 POINT RUBBER INSERT
03061T008
12 POINT RUBBER INSERT
11970P031
PIPE PLUG 1/2"NPT
11970P031
PIPE PLUG 1/2"NPT
11970P032
PLUG-PIPE 1/2" BSP-TR
11970P032
PLUG-PIPE 1/2" BSP-TR
13981P076
WASHER, 1.25ODX.39IDX.02W, STL
13981P076
WASHER, 1.25ODX.39IDX.02W, STL
32445920
ROD V1,2
32445920
ROD V1,2
32446160
Rod gasket V1,2
32446160
Rod gasket V1,2
39727P021
socket hd screw #6-32 UNCx.375 - HP REG
39727P021
socket hd screw #6-32 UNCx.375 - HP REG
42710P058
O RING (NO W/U)
42710P058
O RING (NO W/U)
42710P078
O-RING, 1.44ODX1.19ID, BUNA-70
42710P078
O-RING, 1.44ODX1.19ID, BUNA-70
