Commercial & Industrial Medium Pressure Regulators

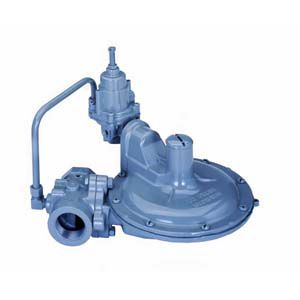

1800CPB2
A pilot operated medium pressure regulator for pressure reducing service requiring stability and metering accuracy. Inlet pressures up to 125 PSIG (8.6 bar). Sizes 3/4”x3/4”, 3/4”x1”, 3/4”x1-1/4”, 1”x1”, 1”x1-1/4” & 1-1/4” x 1-1/4”.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The 1800CPB2 is a compact, lightweight design for gas distribution systems as intermediate or low- pressure regulators. It will control outlet pressures between 1 to 30 PSIG (70mbar to 2 bar) within ±1% of the absolute set pressure over a wide range of flow rates. Temperature range -20°F to +150°F (-30°C to 65°C). Body variants 90 Degree - 1800CPB2 only (Right Angle), 180 Degree- 1800CPB2 and 1883CPB2 with OPSS (Straight-Flow).
Data Sheet
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
12369P038
SCREW 1800 VALVE HEAD,1-1/4"
12369P038
SCREW 1800 VALVE HEAD,1-1/4"
22032P073
NUT,HEX,VALVE HEAD 1800C
22032P073
NUT,HEX,VALVE HEAD 1800C
42710P202
O RING 70 DURO 1800
42710P202
O RING 70 DURO 1800
52020P004
LOCTITE #242 THREADLOCKER, .5ML(.017 OZ)
52020P004
LOCTITE #242 THREADLOCKER, .5ML(.017 OZ)
70012P025
DIAPH PLATE STEEL 1800CPB2
70012P025
DIAPH PLATE STEEL 1800CPB2
70014P186
DIAPHRAGM 1800CP
70014P186
DIAPHRAGM 1800CP
70016P017
LEVER PIN 1800C & B2/CR2000
70016P017
LEVER PIN 1800C & B2/CR2000
70017P003
SPRING 5-9"/1-30# ORANGE
70017P003
SPRING 5-9"/1-30# ORANGE
70018P002
PLUG SEAL W/SEAL HOLE 1800CPB2
70018P002
PLUG SEAL W/SEAL HOLE 1800CPB2
70018P006
TAMPER PROOF COVER W/S.W. HOLE
70018P006
TAMPER PROOF COVER W/S.W. HOLE
