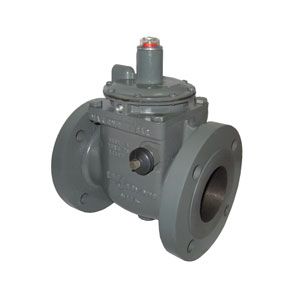

S100 Slamshut Valve
The Series 100 Slam Shut protects gas installations against overpressure conditions by automatically shutting off the gas flow.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Outlet pressures between 7 W.C. and 87 PSIG are available. Operating temperature range is 5°F to 175°F (-20°C to 80°C). Full bore design results in very low pressure drop across the Series 100 Slam Shut.
The Series 100 Slam Shut has been approved to module B + D of the PED 9723/EC by BSI (Notified body No. 0086). It is clasified as Category IV equipment and a safety accessory.
Available in 2, 3 and 4 flange connections with 1/4 NPT external sense line and are spring-loaded with a visual trip indicator.
The Series 100 Slam Shut has been approved to module B + D of the PED 9723/EC by BSI (Notified body No. 0086). It is clasified as Category IV equipment and a safety accessory.
Available in 2, 3 and 4 flange connections with 1/4 NPT external sense line and are spring-loaded with a visual trip indicator.
Specifications
General Overview
- Applications
- Protects gas systems from overpressure; installed upstream of regulator
- Product Type
- Slam shut valve (safety shut-off device)
- Installation Orientation
- Suitable for vertical or horizontal pipework
- Compatible Gases
- Natural Gas, LPG, Manufactured Gases
Construction
- Valve Seat Material
- Stainless Steel
- Spring Material
- Carbon Steel Loaded Spring, Stainless Steel Wire Mechanism Spring
- Diaphragm/Seals Material
- Nitrile (Buna)
- Body Material
- Nodular Iron
Pressure Ratings
- Trip Pressure Range
- 6 bar (87 psig)
- Maximum Inlet Pressure
- 19 bar (275 psig)
Operating Conditions
- Temperature Range
- -20 to +60 deg C
Functionality
- Operating Principle
- Pressure sensing via impulse line; trips and shuts valve when pressure exceeds set value
- Indicators
- Visual valve position indicator
Connection Options
- Impulse Connection
- Rc 1/4 tapping
- Connection Type
- Flanged (BS EN 1092-2 NP16)
- Connection Size
- DN50, DN80, DN100
Control & Operation
- Control Type
- Spring‑loaded, pressure‑activated mechanism
Safety & Compliance
- Approvals
- BS EN 14382, BGES/V9, DIN 3381, PED 2014/68/EU (CE), UKCA (Category IV safety accessory)
General Overview
- Applications
- Protects gas systems from overpressure; installed upstream of regulator
- Product Type
- Slam shut valve (safety shut-off device)
- Installation Orientation
- Suitable for vertical or horizontal pipework
- Compatible Gases
- Natural Gas, LPG, Manufactured Gases
Construction
- Valve Seat Material
- Stainless Steel
- Spring Material
- Carbon Steel Loaded Spring, Stainless Steel Wire Mechanism Spring
- Diaphragm/Seals Material
- Nitrile (Buna)
- Body Material
- Nodular Iron
Pressure Ratings
- Trip Pressure Range
- 6 bar (87 psig)
- Maximum Inlet Pressure
- 19 bar (275 psig)
Operating Conditions
- Temperature Range
- -20 to +60 deg C
Functionality
- Operating Principle
- Pressure sensing via impulse line; trips and shuts valve when pressure exceeds set value
- Indicators
- Visual valve position indicator
Connection Options
- Impulse Connection
- Rc 1/4 tapping
- Connection Type
- Flanged (BS EN 1092-2 NP16)
- Connection Size
- DN50, DN80, DN100
Control & Operation
- Control Type
- Spring‑loaded, pressure‑activated mechanism
Safety & Compliance
- Approvals
- BS EN 14382, BGES/V9, DIN 3381, PED 2014/68/EU (CE), UKCA (Category IV safety accessory)
- Applications : Protects gas systems from overpressure; installed upstream of regulator
- Valve Seat Material : Stainless Steel
- Trip Pressure Range : 6 bar (87 psig)
- Temperature Range : -20 to +60 deg C
- Spring Material : Carbon Steel Loaded Spring, Stainless Steel Wire Mechanism Spring
- Product Type : Slam shut valve (safety shut-off device)
- Operating Principle : Pressure sensing via impulse line; trips and shuts valve when pressure exceeds set value
- Maximum Inlet Pressure : 19 bar (275 psig)
- Installation Orientation : Suitable for vertical or horizontal pipework
- Indicators : Visual valve position indicator
- Impulse Connection : Rc 1/4 tapping
- Diaphragm/Seals Material : Nitrile (Buna)
- Control Type : Spring‑loaded, pressure‑activated mechanism
- Connection Type : Flanged (BS EN 1092-2 NP16)
- Connection Size : DN50, DN80, DN100
- Compatible Gases : Natural Gas, LPG, Manufactured Gases
- Body Material : Nodular Iron
- Approvals : BS EN 14382, BGES/V9, DIN 3381, PED 2014/68/EU (CE), UKCA (Category IV safety accessory)
