Overview

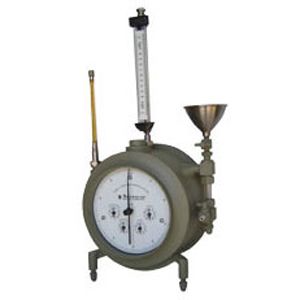

Honeywell American Meter Wet Test Meters are precision, positive displacement meters typically used to measure small volumes and low flow rates. Ideal for any application where accurate measurement of small volumes and low flow rates of manufactured, natural or technical gases are required.
Specifications
Performance
- Accuracy
- High accuracy; maintains calibration over long periods
- Maximum Working Pressure
- Typically around 12 to 14 in WC (model dependent)
General Overview
- Typical Uses
- Lab research, R&D, calibration, gas appliance testing
- Product Type
- Wet test meter (positive displacement)
- Principle
- Rotating drum with known volume compartments
- Models
- AL‑17, AL‑18, AL‑19, AL‑20, AL‑21 (and liter variants)
- Measurement Type
- Small volume, low flow gas measurement
Construction
- Seal Type
- Liquid seal with grommet-type seal (low friction)
- Housing Material
- Stainless Steel
- Gasket Material
- Buna‑N gaskets
Measurement
- One Revolution Volume
- 0.05 to 1.0 CF (model dependent)
- Minimum Subdivision
- Up to 0.0005 CF/0.01 liters
- Maximum Reading
- Up to 1,000,000 liters (model dependent)
Display
- Measurement Units
- Cubic feet (CFH) and liters (L/m)
- Index Type
- Large, easy-to-read dial
Capacity
- Flow Capacity
- ~4 to 300 CFH (or equivalent L/min depending on model)
Design
- Drum Type
- Hinman-type (low-differential)
Physical
- Dimensions
- Width ~10 to 19 in, Height ~12 to 23.75 in
Calibration
- Calibration Method
- Individually calibrated under controlled conditions
Performance
- Accuracy
- High accuracy; maintains calibration over long periods
- Maximum Working Pressure
- Typically around 12 to 14 in WC (model dependent)
General Overview
- Typical Uses
- Lab research, R&D, calibration, gas appliance testing
- Product Type
- Wet test meter (positive displacement)
- Principle
- Rotating drum with known volume compartments
- Models
- AL‑17, AL‑18, AL‑19, AL‑20, AL‑21 (and liter variants)
- Measurement Type
- Small volume, low flow gas measurement
Construction
- Seal Type
- Liquid seal with grommet-type seal (low friction)
- Housing Material
- Stainless Steel
- Gasket Material
- Buna‑N gaskets
Measurement
- One Revolution Volume
- 0.05 to 1.0 CF (model dependent)
- Minimum Subdivision
- Up to 0.0005 CF/0.01 liters
- Maximum Reading
- Up to 1,000,000 liters (model dependent)
Display
- Measurement Units
- Cubic feet (CFH) and liters (L/m)
- Index Type
- Large, easy-to-read dial
Capacity
- Flow Capacity
- ~4 to 300 CFH (or equivalent L/min depending on model)
Design
- Drum Type
- Hinman-type (low-differential)
Physical
- Dimensions
- Width ~10 to 19 in, Height ~12 to 23.75 in
Calibration
- Calibration Method
- Individually calibrated under controlled conditions
- Accuracy : High accuracy; maintains calibration over long periods
- Typical Uses : Lab research, R&D, calibration, gas appliance testing
- Seal Type : Liquid seal with grommet-type seal (low friction)
- Product Type : Wet test meter (positive displacement)
- Principle : Rotating drum with known volume compartments
- One Revolution Volume : 0.05 to 1.0 CF (model dependent)
- Models : AL‑17, AL‑18, AL‑19, AL‑20, AL‑21 (and liter variants)
- Minimum Subdivision : Up to 0.0005 CF/0.01 liters
- Measurement Units : Cubic feet (CFH) and liters (L/m)
- Measurement Type : Small volume, low flow gas measurement
- Maximum Working Pressure : Typically around 12 to 14 in WC (model dependent)
- Maximum Reading : Up to 1,000,000 liters (model dependent)
- Index Type : Large, easy-to-read dial
- Housing Material : Stainless Steel
- Gasket Material : Buna‑N gaskets
- Flow Capacity : ~4 to 300 CFH (or equivalent L/min depending on model)
- Drum Type : Hinman-type (low-differential)
- Dimensions : Width ~10 to 19 in, Height ~12 to 23.75 in
- Calibration Method : Individually calibrated under controlled conditions
