RMA Remote Meter Assemblies

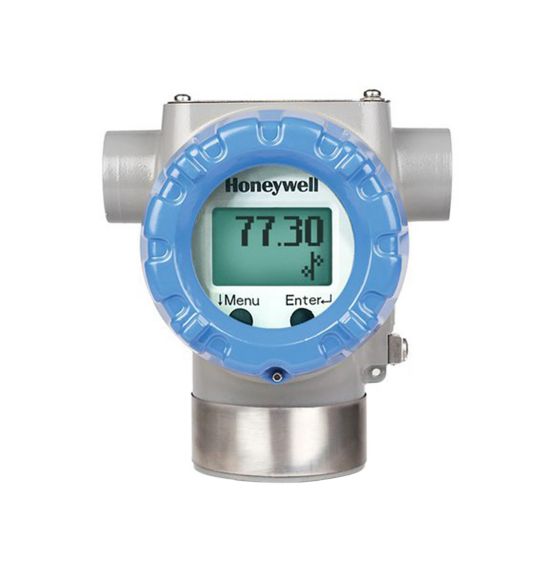

RMA Remote Meter Assemblies provide process measurement values in remote locations where the integral meter in the field instrument is difficult to view.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Honeywell’s SmartLine® RMA 800 Remote Meter Assemblies provide process values in locations where the integral meter in the field instrument is difficult to view. They are used as output and status indicators for Honeywell SmartLine field products and can also be used as output indicators with any non-Honeywell transmitter operating within 4 to 20ma current loop or the appropriate digital protocol.
What Is It?
The RMA is available in the following configurations:
What Is It?
The RMA is available in the following configurations:
- RMA801: Honeywell Digital Enhanced (DE) protocol compatible indicator. This loop powered remote indicator can operate in either analog mode (4-20 mA) or DE mode. As an analog mode remote indicator, HART compatible devices can be connected.
- RMA803: Foundation Fieldbus H1 compatible indicator capable of displaying up to eight values from devices on the same H1 link. Values can be displayed in various engineering units as well as with different display formats (configurable- PV, Bar Graph and Trend Displays)
Specifications
Standards & Certifications
- EMC
- IEC 61326-3-1
- Ingress Protection
- IP66
- IP67
- NEMA 4X
- NEMA 7 (Explosion-Proof)
- Approvals
- ATEX
- CCoE/PESO
- FM
- IECEx
- INMETRO
- IP66/IP67
- NEMA 4X
- NEPSI
- SAEx
- UKEX
- cCSAus
Environmental Conditions
- Operating Temperature Range
- -40 to 70 deg C (-40 to 158 deg F)
- LCD: -20 to 70 deg C
- Vibration Resistance
- IEC 60770-1 (10-2000 Hz, 0.21 mm/3g)
- Relative Humidity
- 0 to 100% RH (Non-Condensing)
Communication & Protocols
- Protocol Compatibility
- RMA801 - DE protocol, Analog (4 to 20 mA DC), HART
- RMA803 - Foundation Fieldbus H1
Technical Specifications
- Electrical Connections
- 1/2-14 NPT or M20
Electrical Specifications
- Current Consumption
- 17.5 mA (Steady), 28 mA (Code Download) ampere
- Power Input
- RMA801 - 4 to 20 mA DC, max voltage drop 2.3 V at 21.5 mA, min loop current 3.6 mA voltage direct current
- RMA803 - 9 to 32 VDC terminal voltage, steady state 17.5mA, code download 28 mA voltage direct current
Software & Interface
- Display Resolution
- RMA801 - 0.01 unit (-999 to 999), 0.1 unit (-9999 to -1000/1000 to 9999), 1 unit (-99999 to -10000/10000 to 99999), 10 units (-999999 to -100000/100000 to 999999)
- RMA803 - 7-digit digital, 128-division bar graph, 2.5% trend
Material Specifications
- Housing Material
- Polyester Powder-Coated Aluminum or Optional Stainless Steel
Applications & Compatibility
- Mounting
- Wall or 2 in (50 mm) Vertical/Horizontal Pipe
Processing & Performance Metrics
- Accuracy
- RMA801 - ±0.1% of span (Analog); ±0.01% of span (Temperature), Same as transmitter (DE)
- RMA803 - Equivalent to connected devices
Overview
- Models
- RMA801
- RMA803
Others
- Storage Temperature Range
- -30 to 80 deg C
- -30 to 80 deg F
Standards & Certifications
- EMC
- IEC 61326-3-1
- Ingress Protection
- IP66
- IP67
- NEMA 4X
- NEMA 7 (Explosion-Proof)
- Approvals
- ATEX
- CCoE/PESO
- FM
- IECEx
- INMETRO
- IP66/IP67
- NEMA 4X
- NEPSI
- SAEx
- UKEX
- cCSAus
Environmental Conditions
- Operating Temperature Range
- -40 to 70 deg C (-40 to 158 deg F)
- LCD: -20 to 70 deg C
- Vibration Resistance
- IEC 60770-1 (10-2000 Hz, 0.21 mm/3g)
- Relative Humidity
- 0 to 100% RH (Non-Condensing)
Communication & Protocols
- Protocol Compatibility
- RMA801 - DE protocol, Analog (4 to 20 mA DC), HART
- RMA803 - Foundation Fieldbus H1
Technical Specifications
- Electrical Connections
- 1/2-14 NPT or M20
Electrical Specifications
- Current Consumption
- 17.5 mA (Steady), 28 mA (Code Download) ampere
- Power Input
- RMA801 - 4 to 20 mA DC, max voltage drop 2.3 V at 21.5 mA, min loop current 3.6 mA voltage direct current
- RMA803 - 9 to 32 VDC terminal voltage, steady state 17.5mA, code download 28 mA voltage direct current
Software & Interface
- Display Resolution
- RMA801 - 0.01 unit (-999 to 999), 0.1 unit (-9999 to -1000/1000 to 9999), 1 unit (-99999 to -10000/10000 to 99999), 10 units (-999999 to -100000/100000 to 999999)
- RMA803 - 7-digit digital, 128-division bar graph, 2.5% trend
Material Specifications
- Housing Material
- Polyester Powder-Coated Aluminum or Optional Stainless Steel
Applications & Compatibility
- Mounting
- Wall or 2 in (50 mm) Vertical/Horizontal Pipe
Processing & Performance Metrics
- Accuracy
- RMA801 - ±0.1% of span (Analog); ±0.01% of span (Temperature), Same as transmitter (DE)
- RMA803 - Equivalent to connected devices
Overview
- Models
- RMA801
- RMA803
Others
- Storage Temperature Range
- -30 to 80 deg C
- -30 to 80 deg F
- Storage Temperature Range : -30 to 80 deg C|-30 to 80 deg F
- EMC : IEC 61326-3-1
- Operating Temperature Range : -40 to 70 deg C (-40 to 158 deg F)|LCD: -20 to 70 deg C
- Protocol Compatibility : RMA801 - DE protocol, Analog (4 to 20 mA DC), HART|RMA803 - Foundation Fieldbus H1
- Electrical Connections : 1/2-14 NPT or M20
- Vibration Resistance : IEC 60770-1 (10-2000 Hz, 0.21 mm/3g)
- Current Consumption : 17.5 mA (Steady), 28 mA (Code Download) ampere
- Ingress Protection : IP66|IP67|NEMA 4X|NEMA 7 (Explosion-Proof)
- Display Resolution : RMA801 - 0.01 unit (-999 to 999), 0.1 unit (-9999 to -1000/1000 to 9999), 1 unit (-99999 to -10000/10000 to 99999), 10 units (-999999 to -100000/100000 to 999999)|RMA803 - 7-digit digital, 128-division bar graph, 2.5% trend
- Relative Humidity : 0 to 100% RH (Non-Condensing)
- Housing Material : Polyester Powder-Coated Aluminum or Optional Stainless Steel
- Power Input : RMA801 - 4 to 20 mA DC, max voltage drop 2.3 V at 21.5 mA, min loop current 3.6 mA voltage direct current|RMA803 - 9 to 32 VDC terminal voltage, steady state 17.5mA, code download 28 mA voltage direct current
- Approvals : ATEX|CCoE/PESO|FM|IECEx|INMETRO|IP66/IP67|NEMA 4X|NEPSI|SAEx|UKEX|cCSAus
- Mounting : Wall or 2 in (50 mm) Vertical/Horizontal Pipe
- Accuracy : RMA801 - ±0.1% of span (Analog); ±0.01% of span (Temperature), Same as transmitter (DE)|RMA803 - Equivalent to connected devices
- Models : RMA801|RMA803
