Series 200 Small Pressure Regulators (Pressure Reducer)

HON 219 (D 119a)

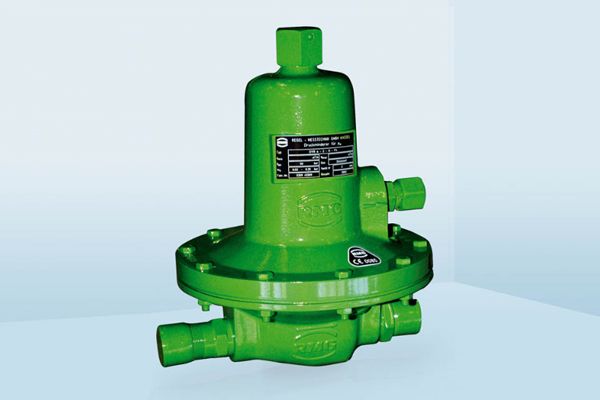

The HON 219 (D 119a) direct-acting pressure reducer conforms to the DIN EN 334 standard and is suitable for industrial and process applications.​​​​

Overview
Features and Benefits:
  • Bubble-tight sealing at zero flow
  • Integrated safety relief valve
  • Easy operation and monitoring
  • Suitable for non-aggressive gases, other gases on enquiry
  • SEP registration according to PED
  • Max. admissible pressure PS = 50 bar
  • Max. inlet pressure pu max: up to 50 bar
  • Outlet pressure range Wd: 8 mbar up to 8 bar
  • Connection: Inlet ₃/₄" male; Pipe connections according to DIN EN ISO 8434-1 (DIN 2353), for pipe diameters 10 mm, 12 mm, 16 mm
  • Connection: Outlet ₃/₄" male
All mechanical components of this device are without potential ignition sources and/ or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.
