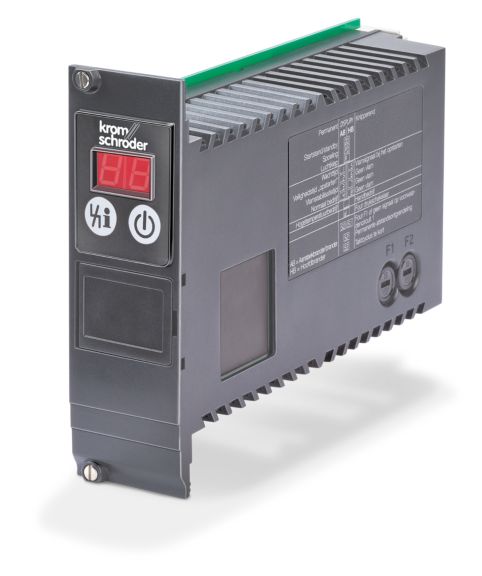

Automatic burner control units PFU
For controlling, igniting and monitoring impulse-controlled, modulating or stage-controlled gas burners, for continuous operation with ionization control.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
For controlling, igniting and monitoring impulse-controlled, modulating or stage-controlled gas burners, for continuous operation with ionization control, for intermittent operation with UV control (with UV sensors of type UVS) or as a variant for continuous operation with UV control (with UV sensor UVD 1).
Features & Benefits:
Features & Benefits:
- Display of the program status, unit parameters and flame signal
- Diagnosis and adjustment of unit parameters via optical interface, with Manual mode and air valve control
- PFU 778: for directly ignited burners of unlimited capacity
- PFU 798: for pilot and main burners of unlimited capacity, both burners can be monitored independently
- Safety time on start-up: 3, 5 or 10 s
- Safety time during operation: 1 or 2 s
- Mains voltage: 115 or 230 V AC, for grounded or ungrounded mains
Specifications
Air & Combustion Air Specifications
- Air Valve Control
- Integrated (PFU..L variant)
Control, Safety & Timing Characteristics
- Start-up Safety Time
- Adjustable: 3, 5, or 10 seconds
Control, Logic & System Behavior
- Start-up Attempts
- 1 to 4
- Restart Attempts
- Up to 3 (configurable)
Control, Software & User Interface Specifications
- Software Interface
- BCSoft (via optical interface)
- Display Type
- 2-digit 7-segment display for program status and flame signal
Electrical Specifications
- Sensor Voltage
- ~230 V AC
- Power Consumption
- 8 VA + ignition transformer load Watt
- Mains Voltage
- PFU..N: 110/120 VAC
- PFU..T: 220/240 VAC
Dimensions & Length Specifications
- Sensor Cable Length
- Max. 100 m
Operating/Process Temperature Ranges
- Operating Temperature Range
- -20 to +60 deg C (-4 to +140 deg F)
- No condensation allowed
Overview
- Models
- PFU 760, PFU 780
Operating Limits & Resistance
- Minimum Burner Pause Time
- 0 to 250 seconds
Control, Logic & Functional Behavior
- Manual Mode
- Available for commissioning and diagnostics
Ignition, Flame & Supervision Specifications
- Flame Proving Period
- 0 to 25 s
- Flame Control
- UV, ionization, or temperature (high-temp version)
Communication & Interfaces
- Fieldbus Interface
- PROFIBUS DP via PFA 700
Environmental Conditions
- Enclosure Rating
- IP00 (IP20 when installed in module subrack)
Dimensions & Weight
- Dimensions
- 133.4 mm H x 40.6 mm W
Standards & Certifications
- Approvals
- SIL 3 (EN 61508), EN 298:2012, FM Approved PFU..T variant only; NFPA 86 Compliant, AGA Approved, UKCA Certified, Eurasian Customs Union
Applications & Compatibility
- Applications
- PFU 760: Directly ignited burners; intermittent or continuous operation
- PFU 780: Pilot + main burners, intermittent or continuous operation
Operating Limits, Durability & Lifecycle
- Altitude Limit
- < 2000 m AMSL
Air & Combustion Air Specifications
- Air Valve Control
- Integrated (PFU..L variant)
Control, Safety & Timing Characteristics
- Start-up Safety Time
- Adjustable: 3, 5, or 10 seconds
Control, Logic & System Behavior
- Start-up Attempts
- 1 to 4
- Restart Attempts
- Up to 3 (configurable)
Control, Software & User Interface Specifications
- Software Interface
- BCSoft (via optical interface)
- Display Type
- 2-digit 7-segment display for program status and flame signal
Electrical Specifications
- Sensor Voltage
- ~230 V AC
- Power Consumption
- 8 VA + ignition transformer load Watt
- Mains Voltage
- PFU..N: 110/120 VAC
- PFU..T: 220/240 VAC
Dimensions & Length Specifications
- Sensor Cable Length
- Max. 100 m
Operating/Process Temperature Ranges
- Operating Temperature Range
- -20 to +60 deg C (-4 to +140 deg F)
- No condensation allowed
Overview
- Models
- PFU 760, PFU 780
Operating Limits & Resistance
- Minimum Burner Pause Time
- 0 to 250 seconds
Control, Logic & Functional Behavior
- Manual Mode
- Available for commissioning and diagnostics
Ignition, Flame & Supervision Specifications
- Flame Proving Period
- 0 to 25 s
- Flame Control
- UV, ionization, or temperature (high-temp version)
Communication & Interfaces
- Fieldbus Interface
- PROFIBUS DP via PFA 700
Environmental Conditions
- Enclosure Rating
- IP00 (IP20 when installed in module subrack)
Dimensions & Weight
- Dimensions
- 133.4 mm H x 40.6 mm W
Standards & Certifications
- Approvals
- SIL 3 (EN 61508), EN 298:2012, FM Approved PFU..T variant only; NFPA 86 Compliant, AGA Approved, UKCA Certified, Eurasian Customs Union
Applications & Compatibility
- Applications
- PFU 760: Directly ignited burners; intermittent or continuous operation
- PFU 780: Pilot + main burners, intermittent or continuous operation
Operating Limits, Durability & Lifecycle
- Altitude Limit
- < 2000 m AMSL
- Air Valve Control : Integrated (PFU..L variant)
- Start-up Safety Time : Adjustable: 3, 5, or 10 seconds
- Start-up Attempts : 1 to 4
- Software Interface : BCSoft (via optical interface)
- Sensor Voltage : ~230 V AC
- Sensor Cable Length : Max. 100 m
- Restart Attempts : Up to 3 (configurable)
- Power Consumption : 8 VA + ignition transformer load Watt
- Operating Temperature Range : -20 to +60 deg C (-4 to +140 deg F)|No condensation allowed
- Models : PFU 760, PFU 780
- Minimum Burner Pause Time : 0 to 250 seconds
- Manual Mode : Available for commissioning and diagnostics
- Mains Voltage : PFU..N: 110/120 VAC|PFU..T: 220/240 VAC
- Flame Proving Period : 0 to 25 s
- Flame Control : UV, ionization, or temperature (high-temp version)
- Fieldbus Interface : PROFIBUS DP via PFA 700
- Enclosure Rating : IP00 (IP20 when installed in module subrack)
- Display Type : 2-digit 7-segment display for program status and flame signal
- Dimensions : 133.4 mm H x 40.6 mm W
- Approvals : SIL 3 (EN 61508), EN 298:2012, FM Approved PFU..T variant only; NFPA 86 Compliant, AGA Approved, UKCA Certified, Eurasian Customs Union
- Applications : PFU 760: Directly ignited burners; intermittent or continuous operation|PFU 780: Pilot + main burners, intermittent or continuous operation
- Altitude Limit : < 2000 m AMSL
