Burner Control Units

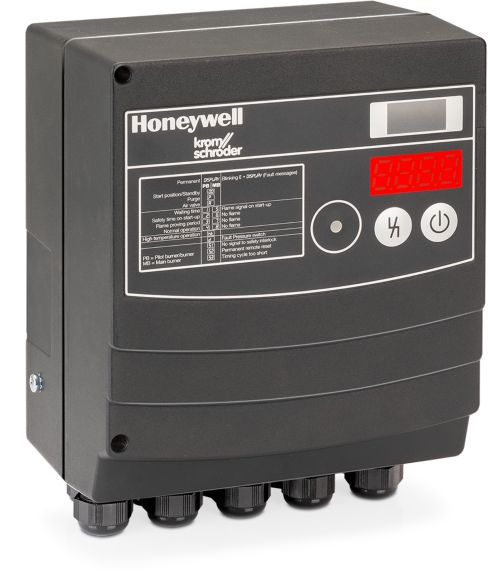

BCU 4 (Next Generation)
NEXT-GENERATION BURNER CONTROL UNIT: All-in-one modular solutions for industrial multi-burner applications that can be programmed for a wide variety of applications, simplifying device engineering, installation and start-up.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
For controlling, igniting and monitoring impulse-controlled, modulating-controlled or stage-controlled gas burners. The burner control unit BCU® unites the functionally interrelated components of automatic burner control unit, ignition transformer, Automatic/Manual mode changeover and display of operating and fault statuses in a compact metal housing. It is used near the burner to be monitored. Display of the program status, unit parameters and flame signal. Diagnosis and adjustment of unit parameters via an optical interface. BCU 46x/480..Dx for high temperature operation. EU certified for intermittent and continuous operation, certified for systems up to SIL 3 (compliant with PL e), FM and EAC approved. Further approvals (CSA and AGA) in preparation.
Features & benefits
Features & benefits
- 4-digit 7-segment display
- Parameter Chip Card for easy replacement
- Additional valve outputs
- Capacity control optimized for high numbers of operating cycles
- Power module with wear parts can be replaced
- Air valve control with semi-conductor output (BCU 46x/480..F3)
- High temperature operation with menox® functionality
- Valve proving system (BCU 4xx..C1)
- Fail-safe bus communication within the protective system (FCU 500 – BCU 4xx) in preparation
- Optional inputs
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
KS88614532
BCU465-5/1LW3GBACB1/1
KS88614532
BCU465-5/1LW3GBACB1/1
KS88614554
BCU460-5/2W3GBS3B1/1
KS88614554
BCU460-5/2W3GBS3B1/1
KS88614580
BCU460-3/1W3GBB1/1
KS88614580
BCU460-3/1W3GBB1/1
KS88614777
BCU465-5/1LW3GBD3S4AB1/1
KS88614777
BCU465-5/1LW3GBD3S4AB1/1
KS88614779
BCU480-10/5/1LW3GBS2/1
KS88614779
BCU480-10/5/1LW3GBS2/1
KS88614811
BCU480-5/5/1LW3GBB1/1
KS88614811
BCU480-5/5/1LW3GBB1/1
KS88614835
CTL,BRNR,BCU465 5/1LW3GBPA,230VAC,50 60H
KS88614835
CTL,BRNR,BCU465 5/1LW3GBPA,230VAC,50 60H
KS88614840
BCU460-3/2W3GBD2S4
KS88614840
BCU460-3/2W3GBD2S4
KS88614841
BCU460-3/1W3GBUB1/1
KS88614841
BCU460-3/1W3GBUB1/1
KS88614856
BCU460-5/1W1GBPU
KS88614856
BCU460-5/1W1GBPU
