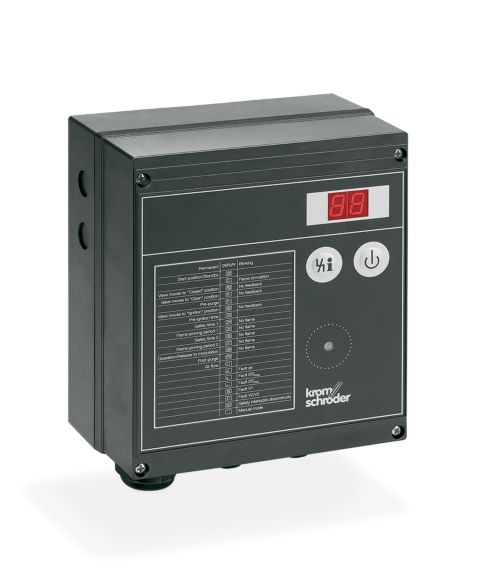

Burner control unit BCU 370
The burner control unit BCU 370 controls, ignites and monitors industrial forced draught burners of unlimited capacity in intermittent or continuous operation.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The burner control unit BCU 370 controls, ignites and monitors industrial forced draught burners of unlimited capacity in intermittent or continuous operation.
Features & Benefits:
Features & Benefits:
- Mains voltage: 230 V AC, -15/+10%, 50/60 Hz or 120 V AC, -15/+10%, 50/60 Hz
- Flame control with UV sensor or ionization sensor
- Air pressure check during pre-purge and operation by external pressure switch DL
Specifications
Environmental Conditions
- Ambient Temperature Range
- -20 to +60 deg C (standard), -10 to +60 deg C (with ignition unit)
- Enclosure Rating
- IP54 (IEC 529)
Operating Limits & Resistance
- Maximum Operating Cycles
- 250000
Electrical Specifications
- Flame Signal Current
- Ionization: 1-28 µA
- UV: 1-35 µA
- Power Consumption
- Approximately 9 VA + 50 VA for integrated ignition Watt
- Mains Voltage
- 120 VAC (Q), 230 VAC (W), ±15%, 50/60 Hz
Actuation, Valve & Motion Control Specifications
- Valve Output Rating
- Max 1 A each, total max 2.5 A
- Tightness Control
- Optional (D3 variant), programmable test period
Control, Software & User Interface Specifications
- Software Interface
- Optical interface with BCSoft PC software
- Display Type
- 2-digit 7-segment display
Operating Limits, Durability & Lifecycle
- Operating Altitude
- < 2000 m AMSL
Communication & Interfaces
- Fieldbus Interface
- Optional PROFIBUS DP (B1), with three-point step control (B1-3)
Control, Logic & System Behavior
- Start-up Attempts
- 1 to 4 (per parameter P07)
Combustion Air, Blower & Emissions Specifications
- Fan Output Rating
- Max 3 A, start-up current max 6.5 A < 1 s
Ignition, Flame & Supervision Specifications
- Ignition Type
- Electronic ignition: I1 (single-pole), I2 (double-pole), I3 (double-pole with neutral)
- Flame Control
- UV Sensor or Flame Rod
Dimensions & Length Specifications
- Cable Length
- Ignition: max 1 m; Ionization/UV: max 50 m foot
Applications & Compatibility
- Applications
- Modulating, forced draught burners for gas (intermittent or continuous operation)
Inputs, Outputs & Signal Interfaces
- Output Load
- Max 4 A
Standards & Certifications
- Approvals
- EU DirectivesLow Voltage (2014/35/EU), EMC (2014/30/EU), GAR (2016/426), FMClass 7611, CSAClass 3335‑01/3335‑81, UL 372, AGA Approval No. 6880
Environmental Conditions
- Ambient Temperature Range
- -20 to +60 deg C (standard), -10 to +60 deg C (with ignition unit)
- Enclosure Rating
- IP54 (IEC 529)
Operating Limits & Resistance
- Maximum Operating Cycles
- 250000
Electrical Specifications
- Flame Signal Current
- Ionization: 1-28 µA
- UV: 1-35 µA
- Power Consumption
- Approximately 9 VA + 50 VA for integrated ignition Watt
- Mains Voltage
- 120 VAC (Q), 230 VAC (W), ±15%, 50/60 Hz
Actuation, Valve & Motion Control Specifications
- Valve Output Rating
- Max 1 A each, total max 2.5 A
- Tightness Control
- Optional (D3 variant), programmable test period
Control, Software & User Interface Specifications
- Software Interface
- Optical interface with BCSoft PC software
- Display Type
- 2-digit 7-segment display
Operating Limits, Durability & Lifecycle
- Operating Altitude
- < 2000 m AMSL
Communication & Interfaces
- Fieldbus Interface
- Optional PROFIBUS DP (B1), with three-point step control (B1-3)
Control, Logic & System Behavior
- Start-up Attempts
- 1 to 4 (per parameter P07)
Combustion Air, Blower & Emissions Specifications
- Fan Output Rating
- Max 3 A, start-up current max 6.5 A < 1 s
Ignition, Flame & Supervision Specifications
- Ignition Type
- Electronic ignition: I1 (single-pole), I2 (double-pole), I3 (double-pole with neutral)
- Flame Control
- UV Sensor or Flame Rod
Dimensions & Length Specifications
- Cable Length
- Ignition: max 1 m; Ionization/UV: max 50 m foot
Applications & Compatibility
- Applications
- Modulating, forced draught burners for gas (intermittent or continuous operation)
Inputs, Outputs & Signal Interfaces
- Output Load
- Max 4 A
Standards & Certifications
- Approvals
- EU DirectivesLow Voltage (2014/35/EU), EMC (2014/30/EU), GAR (2016/426), FMClass 7611, CSAClass 3335‑01/3335‑81, UL 372, AGA Approval No. 6880
- Ambient Temperature Range : -20 to +60 deg C (standard), -10 to +60 deg C (with ignition unit)
- Maximum Operating Cycles : 250000
- Flame Signal Current : Ionization: 1-28 µA|UV: 1-35 µA
- Valve Output Rating : Max 1 A each, total max 2.5 A
- Software Interface : Optical interface with BCSoft PC software
- Operating Altitude : < 2000 m AMSL
- Fieldbus Interface : Optional PROFIBUS DP (B1), with three-point step control (B1-3)
- Tightness Control : Optional (D3 variant), programmable test period
- Start-up Attempts : 1 to 4 (per parameter P07)
- Power Consumption : Approximately 9 VA + 50 VA for integrated ignition Watt
- Fan Output Rating : Max 3 A, start-up current max 6.5 A < 1 s
- Enclosure Rating : IP54 (IEC 529)
- Mains Voltage : 120 VAC (Q), 230 VAC (W), ±15%, 50/60 Hz
- Ignition Type : Electronic ignition: I1 (single-pole), I2 (double-pole), I3 (double-pole with neutral)
- Flame Control : UV Sensor or Flame Rod
- Display Type : 2-digit 7-segment display
- Cable Length : Ignition: max 1 m; Ionization/UV: max 50 m foot
- Applications : Modulating, forced draught burners for gas (intermittent or continuous operation)
- Output Load : Max 4 A
- Approvals : EU DirectivesLow Voltage (2014/35/EU), EMC (2014/30/EU), GAR (2016/426), FMClass 7611, CSAClass 3335‑01/3335‑81, UL 372, AGA Approval No. 6880
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
613001Q
FLM SFGRD BCU370 230V w/CONF
613001Q
FLM SFGRD BCU370 230V w/CONF
KS88601598
BCU370QFEU0D1B1
KS88601598
BCU370QFEU0D1B1
KS88601608
BCU370WI1FEU0D1
KS88601608
BCU370WI1FEU0D1
KS88601614
BCU370WI1FEU1D1
KS88601614
BCU370WI1FEU1D1
KS88601630
BCU370WI1FEU0D1B1
KS88601630
BCU370WI1FEU0D1B1
KS88601700
BCU 370WI1FEU0D1B1
KS88601700
BCU 370WI1FEU0D1B1
