flame detectors
C7027, C7035

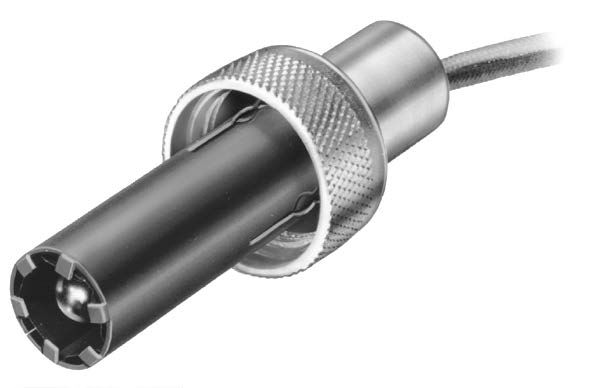

'MiniPeeper' Ultraviolet Flame Sensor
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Compact analogue UV flame sensor to detect ultraviolet radiations emitted by combustion flames. Used with Honeywell burner controls to provide flame supervision for commercial and industrial burner applications.
Approvals:
Approvals:
- CE approved according to EN298, only when used with the correct Honeywell flame amplifiers and/or burner controls
- UL/CSA approved for USA
- AGA approved for Australia
- Only for intermittent operation. The burner has to recycle at least once per 24 hours.
- Rugged, compact, with encapsulated sensing tube for maximum protection
- Quick and easy installation on standard sight pipe
Specifications
Environmental Conditions
- Ambient Operating Temperature
- -20 to +70 deg C (-4 to +160 deg F)
- Enclosure Rating
- IP66, Explosion-proof (CENELEC II G Ex db IIC T6)
Storage/Transport Temperatures
- Storage Temperature
- -50 to +80 deg C (-60 to +175 deg F)
Operating Limits, Durability & Lifecycle
- Serviceability
- Field-replaceable UV sensing tube
Connections & Interfaces
- Purge Air Connection
- 3/8 in NPT internal thread
Product Overview & Classification
- Product Name
- Ultraviolet Flame Detector
Pressure Specifications
- Pressure Ratings
- 690 kPa (100 psi) (Quartz Window)
Ignition, Flame & Supervision Specifications
- Parallel Detector Capability
- Up to 2 detectors can be connected in parallel
- Flame Signal Range
- 0.8 to 8 VDC depending on controller, 4 to 14 µA (DBC2000)
Electrical Specifications
- Operating Voltage Range
- 115 VAC or 230 VAC (terminal selectable) (Shutter)
Installation & Mounting Specifications
- Mounting Types
- 1 in NPT internal thread flange
Overview
- Models
- C7035C (non self-checking), C7061F1 (dynamic self-checking)
Applications & Compatibility
- Compatible Controllers
- SLATE, 7800-series, DBC2000, BC1000, Kromschröder FDU 510..3
- Applications
- Flame detection for gas, oil, or other fuel combustion
Mechanical Design, Layout & Construction Options
- Cable Entries
- 1/2 in NPT internal thread
Standards & Certifications
- Approvals
- IECEx Certified, ATEX Certified, KCs Certified, CE Approved, SIL 3 Capable
Environmental Conditions
- Ambient Operating Temperature
- -20 to +70 deg C (-4 to +160 deg F)
- Enclosure Rating
- IP66, Explosion-proof (CENELEC II G Ex db IIC T6)
Storage/Transport Temperatures
- Storage Temperature
- -50 to +80 deg C (-60 to +175 deg F)
Operating Limits, Durability & Lifecycle
- Serviceability
- Field-replaceable UV sensing tube
Connections & Interfaces
- Purge Air Connection
- 3/8 in NPT internal thread
Product Overview & Classification
- Product Name
- Ultraviolet Flame Detector
Pressure Specifications
- Pressure Ratings
- 690 kPa (100 psi) (Quartz Window)
Ignition, Flame & Supervision Specifications
- Parallel Detector Capability
- Up to 2 detectors can be connected in parallel
- Flame Signal Range
- 0.8 to 8 VDC depending on controller, 4 to 14 µA (DBC2000)
Electrical Specifications
- Operating Voltage Range
- 115 VAC or 230 VAC (terminal selectable) (Shutter)
Installation & Mounting Specifications
- Mounting Types
- 1 in NPT internal thread flange
Overview
- Models
- C7035C (non self-checking), C7061F1 (dynamic self-checking)
Applications & Compatibility
- Compatible Controllers
- SLATE, 7800-series, DBC2000, BC1000, Kromschröder FDU 510..3
- Applications
- Flame detection for gas, oil, or other fuel combustion
Mechanical Design, Layout & Construction Options
- Cable Entries
- 1/2 in NPT internal thread
Standards & Certifications
- Approvals
- IECEx Certified, ATEX Certified, KCs Certified, CE Approved, SIL 3 Capable
- Ambient Operating Temperature : -20 to +70 deg C (-4 to +160 deg F)
- Storage Temperature : -50 to +80 deg C (-60 to +175 deg F)
- Serviceability : Field-replaceable UV sensing tube
- Purge Air Connection : 3/8 in NPT internal thread
- Product Name : Ultraviolet Flame Detector
- Pressure Ratings : 690 kPa (100 psi) (Quartz Window)
- Parallel Detector Capability : Up to 2 detectors can be connected in parallel
- Operating Voltage Range : 115 VAC or 230 VAC (terminal selectable) (Shutter)
- Mounting Types : 1 in NPT internal thread flange
- Models : C7035C (non self-checking), C7061F1 (dynamic self-checking)
- Flame Signal Range : 0.8 to 8 VDC depending on controller, 4 to 14 µA (DBC2000)
- Enclosure Rating : IP66, Explosion-proof (CENELEC II G Ex db IIC T6)
- Compatible Controllers : SLATE, 7800-series, DBC2000, BC1000, Kromschröder FDU 510..3
- Cable Entries : 1/2 in NPT internal thread
- Approvals : IECEx Certified, ATEX Certified, KCs Certified, CE Approved, SIL 3 Capable
- Applications : Flame detection for gas, oil, or other fuel combustion
