flame detectors
C7061A, F

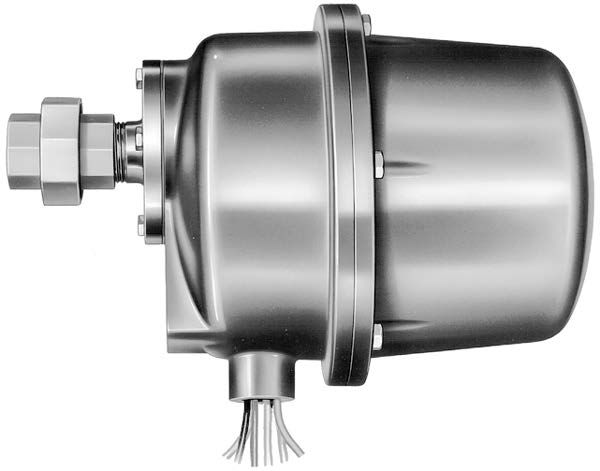

Dynamic Self-Check Ultraviolet Flame Detector
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Solid-state electronic UV flame sensor to detect ultraviolet radiation emitted by the combustion of most carbon-containing fuels such as natural gas, LP gases, and oil.Used with Honeywell burner controls to provide flame supervision in continuous operation for industrial burner applications.
Approvals:
Approvals:
- CE approved according to EN 298 only when used with the correct Honeywell flame amplifiers and/or burner controls
- C7061-series models are approved for use in continuous operation, by using dynamic self-check
- C7061F1 models are ATEX approved for use in explosion hazardous locations; II G Ex d IIC T6, zone 1&2
- C7061F2 models are UL listed for use in explosion hazardous locations; Class 1, groups C and D; and Class 2, groups E, F, and G
Specifications
Overview
- Models
- C7035C (non self-checking), C7061F (F1/F2) (dynamic self-checking)
Operating/Process Temperature Ranges
- Operating Temperature Range
- C7035C, C7061F1: -20 to +70 deg C (-4 to +160 deg F); C7061A
- C7061F2: -40 to +175 deg F (-40 to +80 deg C)
Storage/Transport Temperatures
- Storage Temperature Range
- -50 to +80°C (-60 to +175°F)
Applications & Compatibility
- Compatible Controllers
- SLATE, 7800-series, DBC2000, BC1000, Kromschröder FDU 510..3
- Compatible Amplifiers
- C7061A: R7861A (7800 SERIES) or R8001S1051 (SLATE)
- C7061F (F1/F2): R7861 (7800 SERIES) or R8001S1051 (SLATE)
- Applications
- Detects UV radiation from gas/oil flames, used with R7861 self‑check amplifier
Ignition, Flame & Supervision Specifications
- Flame Signal Range
- C7061A: 1.25-5 VDC (7800 Series), up to 8 VDC (SLATE); C7061F (F1/F2): Same (1.25-5.0 VDC/up to 8 VDC for SLATE)
- UV Sensing Tube
- -40 deg C rated, field replaceable
Pressure Specifications
- Pressure Ratings
- C7035C, C7061F1: 690 kPa (100 psi) (Quartz Viewing Window)
- C7061A, C7061F2: 138/690 kPa (20/100 psi) (Quartz Viewing Window), 20 psi (138 kPa) (Quartz Focusing Lens)
Installation & Mounting Specifications
- Mounting Options
- C7035C: 1 in NPT Flange, includes 1 in MNPT x 3/4 in FNPT Adapter; C7061F (F1/F2): 1 in NPT explosion‑proof union
Environmental Conditions
- Enclosure Rating
- C7035C, C7061F1: IP66, Explosion-proof (CENELEC II G Ex db IIC T6)
- C7035C: NEMA 4
- C7061F (F1/F2): IP66 + Explosion‑proof Ex db IIC T6
Electrical Specifications
- Electrical Power
- C7061A: Powered via flame safeguard controller (tube + shutter)
- C7061F (F1/F2): Powered via flame safeguard controller (tube + shutter); shutter voltage selectable 115/230 VAC (F1)
Mechanical Design, Layout & Construction Options
- Cable Entries
- C7035C: 1/2‑14 NPSM conduit opening
- C7061F (F1/F2): 1/2 in NPT conduit entry; EX‑approved gland required
Standards & Certifications
- Approvals
- IECEx Certified, ATEX Certified, KCs Certified, CE Approved, SIL 3 Capable, UL Listed, FM Approved, WEEE Directive Compliance
Overview
- Models
- C7035C (non self-checking), C7061F (F1/F2) (dynamic self-checking)
Operating/Process Temperature Ranges
- Operating Temperature Range
- C7035C, C7061F1: -20 to +70 deg C (-4 to +160 deg F); C7061A
- C7061F2: -40 to +175 deg F (-40 to +80 deg C)
Storage/Transport Temperatures
- Storage Temperature Range
- -50 to +80°C (-60 to +175°F)
Applications & Compatibility
- Compatible Controllers
- SLATE, 7800-series, DBC2000, BC1000, Kromschröder FDU 510..3
- Compatible Amplifiers
- C7061A: R7861A (7800 SERIES) or R8001S1051 (SLATE)
- C7061F (F1/F2): R7861 (7800 SERIES) or R8001S1051 (SLATE)
- Applications
- Detects UV radiation from gas/oil flames, used with R7861 self‑check amplifier
Ignition, Flame & Supervision Specifications
- Flame Signal Range
- C7061A: 1.25-5 VDC (7800 Series), up to 8 VDC (SLATE); C7061F (F1/F2): Same (1.25-5.0 VDC/up to 8 VDC for SLATE)
- UV Sensing Tube
- -40 deg C rated, field replaceable
Pressure Specifications
- Pressure Ratings
- C7035C, C7061F1: 690 kPa (100 psi) (Quartz Viewing Window)
- C7061A, C7061F2: 138/690 kPa (20/100 psi) (Quartz Viewing Window), 20 psi (138 kPa) (Quartz Focusing Lens)
Installation & Mounting Specifications
- Mounting Options
- C7035C: 1 in NPT Flange, includes 1 in MNPT x 3/4 in FNPT Adapter; C7061F (F1/F2): 1 in NPT explosion‑proof union
Environmental Conditions
- Enclosure Rating
- C7035C, C7061F1: IP66, Explosion-proof (CENELEC II G Ex db IIC T6)
- C7035C: NEMA 4
- C7061F (F1/F2): IP66 + Explosion‑proof Ex db IIC T6
Electrical Specifications
- Electrical Power
- C7061A: Powered via flame safeguard controller (tube + shutter)
- C7061F (F1/F2): Powered via flame safeguard controller (tube + shutter); shutter voltage selectable 115/230 VAC (F1)
Mechanical Design, Layout & Construction Options
- Cable Entries
- C7035C: 1/2‑14 NPSM conduit opening
- C7061F (F1/F2): 1/2 in NPT conduit entry; EX‑approved gland required
Standards & Certifications
- Approvals
- IECEx Certified, ATEX Certified, KCs Certified, CE Approved, SIL 3 Capable, UL Listed, FM Approved, WEEE Directive Compliance
- Models : C7035C (non self-checking), C7061F (F1/F2) (dynamic self-checking)
- Operating Temperature Range : C7035C, C7061F1: -20 to +70 deg C (-4 to +160 deg F); C7061A|C7061F2: -40 to +175 deg F (-40 to +80 deg C)
- Storage Temperature Range : -50 to +80°C (-60 to +175°F)
- Compatible Controllers : SLATE, 7800-series, DBC2000, BC1000, Kromschröder FDU 510..3
- Compatible Amplifiers : C7061A: R7861A (7800 SERIES) or R8001S1051 (SLATE)|C7061F (F1/F2): R7861 (7800 SERIES) or R8001S1051 (SLATE)
- Flame Signal Range : C7061A: 1.25-5 VDC (7800 Series), up to 8 VDC (SLATE); C7061F (F1/F2): Same (1.25-5.0 VDC/up to 8 VDC for SLATE)
- Pressure Ratings : C7035C, C7061F1: 690 kPa (100 psi) (Quartz Viewing Window)|C7061A, C7061F2: 138/690 kPa (20/100 psi) (Quartz Viewing Window), 20 psi (138 kPa) (Quartz Focusing Lens)
- Mounting Options : C7035C: 1 in NPT Flange, includes 1 in MNPT x 3/4 in FNPT Adapter; C7061F (F1/F2): 1 in NPT explosion‑proof union
- Enclosure Rating : C7035C, C7061F1: IP66, Explosion-proof (CENELEC II G Ex db IIC T6)|C7035C: NEMA 4|C7061F (F1/F2): IP66 + Explosion‑proof Ex db IIC T6
- Electrical Power : C7061A: Powered via flame safeguard controller (tube + shutter)|C7061F (F1/F2): Powered via flame safeguard controller (tube + shutter); shutter voltage selectable 115/230 VAC (F1)
- UV Sensing Tube : -40 deg C rated, field replaceable
- Cable Entries : C7035C: 1/2‑14 NPSM conduit opening|C7061F (F1/F2): 1/2 in NPT conduit entry; EX‑approved gland required
- Applications : Detects UV radiation from gas/oil flames, used with R7861 self‑check amplifier
- Approvals : IECEx Certified, ATEX Certified, KCs Certified, CE Approved, SIL 3 Capable, UL Listed, FM Approved, WEEE Directive Compliance
